電動驅動器

電動驅動器 簡單控制 控制器一體型/Slider Type/Rod Type/Guide Rod Type EQYG□H

    ・Easy to set up, just like air equipment!
    　Two position stop with no programming required
    　Three position stop with no programming required
    　Cycle time can be set in all control modes.
    ・Downsized with Integrated Controller, Wiring saving,
    　Labor saving · Programless · Reduced adjustment time
    ・Annual CO2 emissions: Max. 59% reduction (SMC comparison)
    　[5.8 kg-CO2e/year (14.1)]
    　∗ The numerical values vary depending on the operating conditions.
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions　Green Procurement (RoHS)
規格系列行程
（mm）		推力
（N）		速度
（mm/s）		螺距
（mm）
無電池 絕對型
(步進馬達 24 VDC)		EQYG16□H30 to 200MAX.154MAX.7002.5,5,10
無電池 絕對型
(步進馬達 24 VDC)		EQYG25□H30 to 300MAX.511MAX.9003,6,12,20
無電池 絕對型
(步進馬達 24 VDC)		EQYG32□H30 to 300MAX.796MAX.8504,8,16,24

產品特點

Easy to set up, just like air equipment!

Two position stop with no programming required

Three position stop with no programming required

Cycle time can be set in all control modes.

Annual CO2 emissions reduced by up to 59% through motor control optimization (SMC comparison)

Can be selected from 4 directions (In-line motor type)

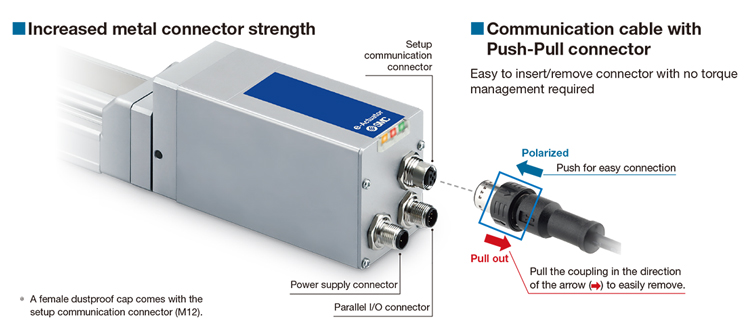

LEDs indicate the load condition./Increased metal connector strength

Restart from the last stop position is possible.

Detection of table stop position by means of an auto switch is possible.

Variations
