ISO氣壓缸

ISO Standards (21287) Compact Cylinder C55/CD55

    ・Compliant with ISO Standards (21287)
    ・1.8 times the anti-lateral load capacity [New]
    　The allowable lateral load has been improved by changing the material
    　of the bushing. (For ø20)
    ・Increased the standard product's maximum stroke limit (to 300 mm)
    　[New]
    ・Standardization of the double rod (C55W) type, simple specials, and
    　made-to-order options [New]
    　Change of rod end shape (-XA□)
    　Heat-resistant cylinder (–10°C to 150°C) (-XB6)
    　Low-speed cylinder (5 to 50 mm/s) (-XB13)
  • 2D/3D CAD

    能以各種數據格式輸出支持所有型號的2D/3D CAD數據。
    能在安裝了選購件、歧管的狀態下輸出。

    查看 2D/3D CAD
Safety Instructions　Actuators/Precautions
Auto Switches/Precautions　Model Selection/Technical Data　Green Procurement (RoHS)
TypeSeriesActionBore size (mm)
StandardC55-ZDouble acting, Single rod20，25，32，40，50，63，80，100
StandardC55W-ZDouble acting, Double rod20，25，32，40，50，63，80，100

產品特點

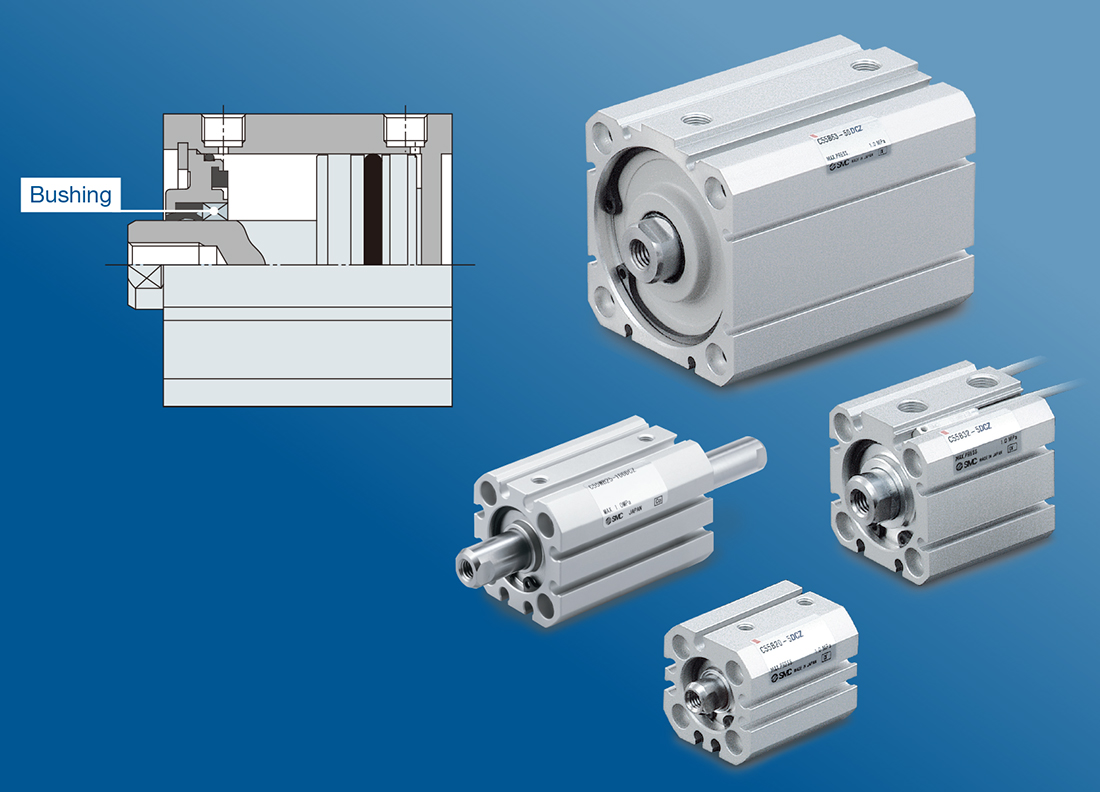

1.8 times the anti-lateral load capacity

The allowable lateral load has been improved by changing the material of the bushing. (For ø20)

Increased the standard product's maximum stroke limit (to 300 mm)



Standardization of the Double rod (C55W) type, Simple specials, and Made-to-order options

・Change of rod end shape (-XA □ )
・Heat-resistant cylinder (–10°C to 150°C) (-XB6)
・Low-speed cylinder (5 to 50 mm/s) (-XB13)

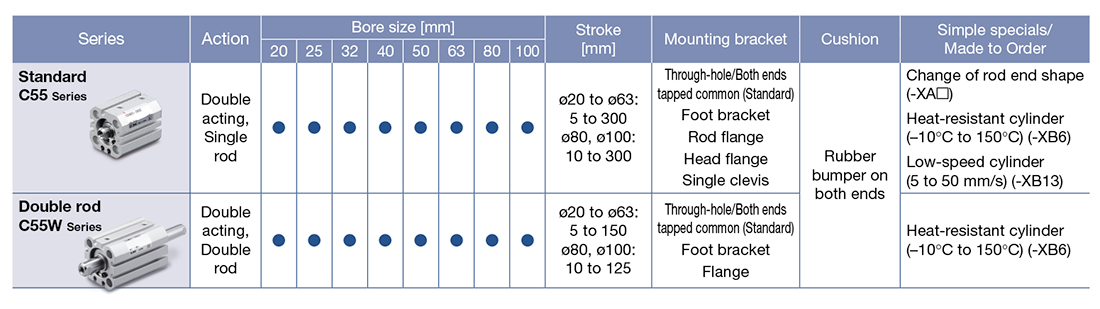

Series Variations
