增壓缸

Low Air Consumption Booster Regulator VBA

    ・Air consumption: Max. 40% reduction (Based on SMC’s measuring conditions)
    　Operates by recycling air through the exhaust return circuit
    ・Operation noise: 65 dB (A)
    　15 dB (A) reduction compared with the existing model (VBA series)
    　(Based on SMC’s measuring conditions)
    ・Charging time: Max. 50% shorter
    ・Operating cycles: 50 million cycles or more
    　Maintenance frequency is reduced due to improved life.
    　(Based on SMC’s test conditions)
    ・Compatible with vertical and horizontal installation
    ・Mounting compatibility with the existing model (VBA series)
  • 2D/3D CAD

    能以各種數據格式輸出支持所有型號的2D/3D CAD數據。
    能在安裝了選購件、歧管的狀態下輸出。

    查看 2D/3D CAD
Safety Instructions　Series Variations/Pressure Control Equipment
Green Procurement (RoHS)
SeriesPort sizeSet pressure (MPa)
VBA-X31451/4，1/20.3 to 1.2

產品特點

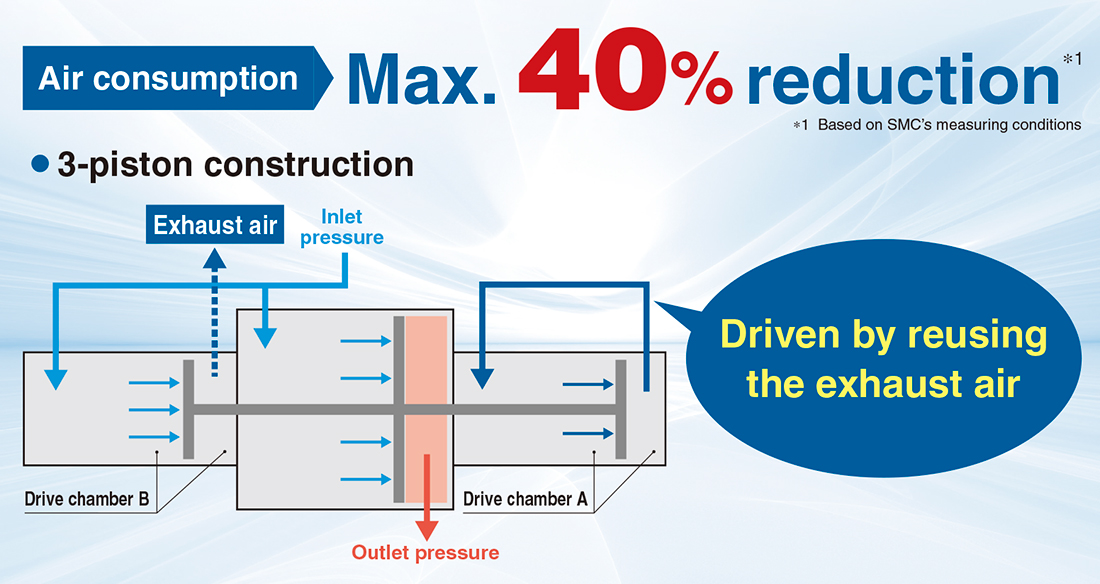

Air consumption: Max. 40% reduction(Based on SMC's measuring conditions)



  • Operation noise: 65 dB (A)

    15 dB (A) reduction compared with the existing model (VBA series)*

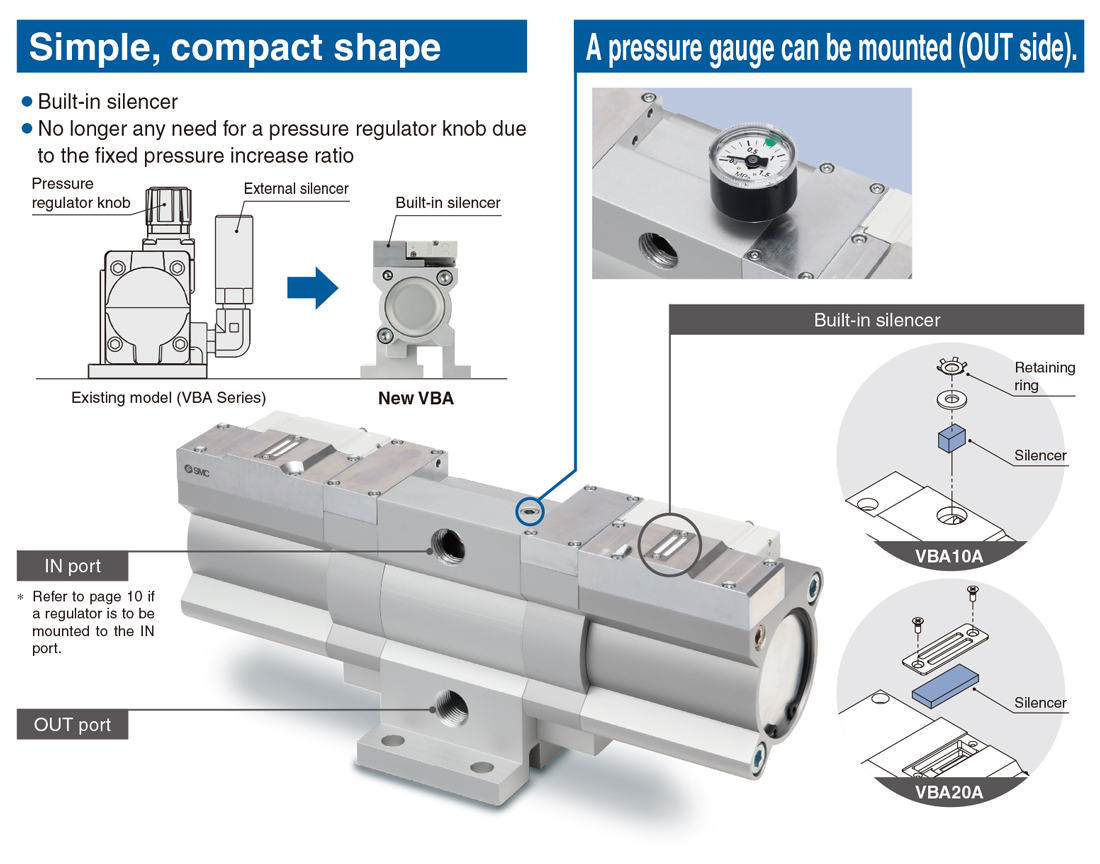

    ・Exhaust noise: Reduced noise due to exhaust of reused low-pressure air
    ・Metal noise: Reduced noise due to the adoption of a construction in which the internal switching part does not come into contact with any metal parts
    * Based on SMC’s measuring conditions. For size 10A

  • Operating cycles: 50 million cycles or more

    Maintenance frequency is reduced due to improved life.

    *Based on SMC's test conditions

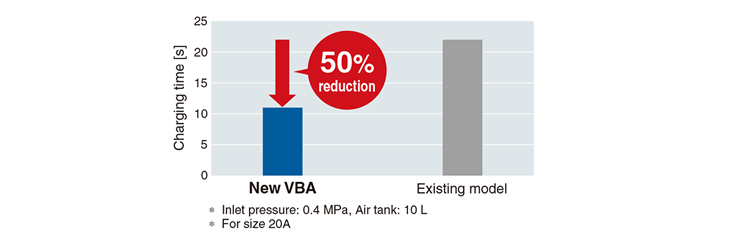

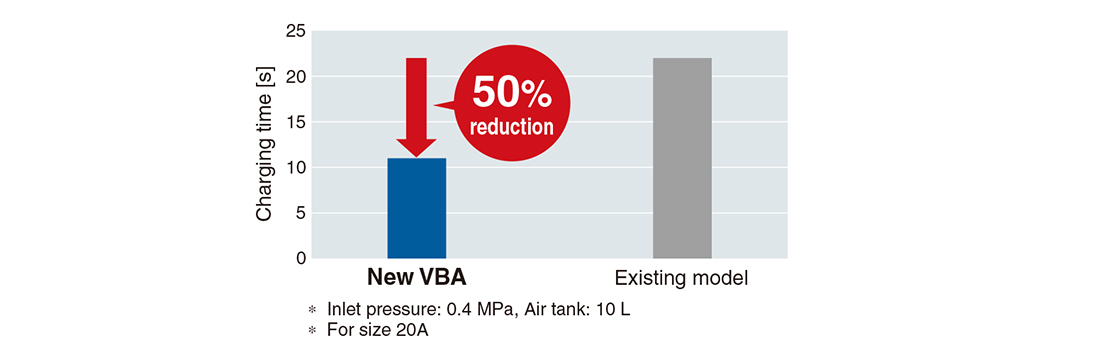

Charging time: Max. 50% shorter

Features

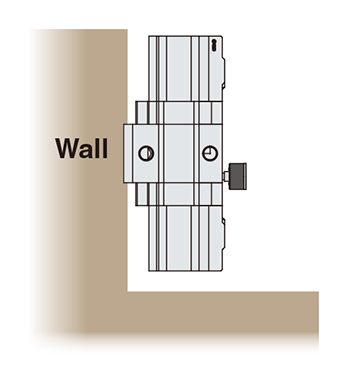

  • Compatible with vertical and horizontal installation

    Improved mounting flexibility

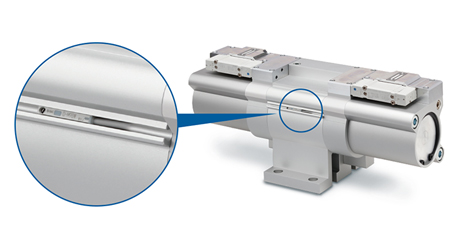

  • An auto switch can be mounted on the rear side.

    Operating cycle count is possible using an auto switch.

Mounting interchangeability with the existing model (VBA series)

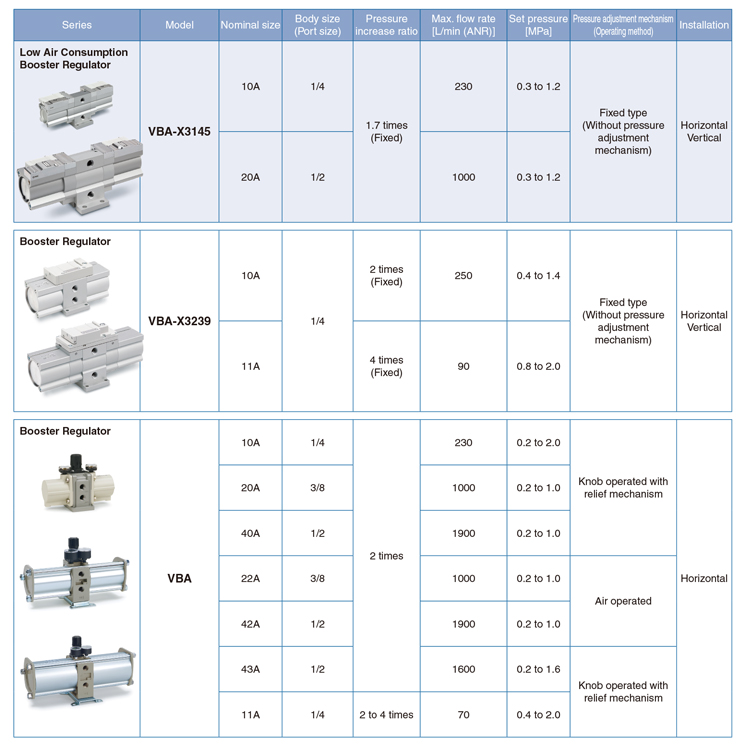

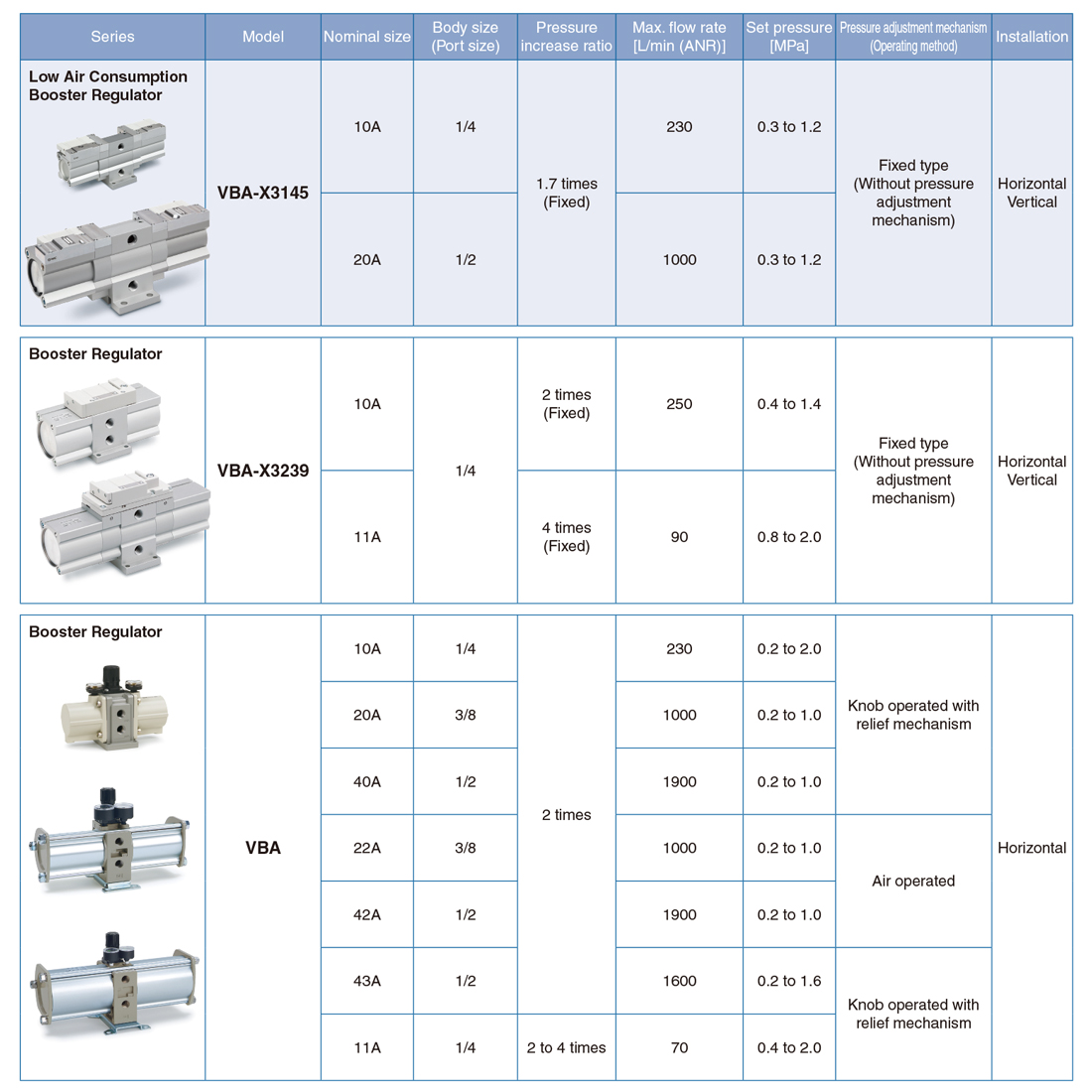

Series Variations
