氣引導式4/5通口電磁閥

通口電磁閥 插入式 SY3000/5000/7000

    ・流量UP閥尺寸可降低
    　省能源・省空間
    ・消耗電力: 0.1 W (附節電迴路)/0.35 W (標準)
    ・壽命: 2億次 (金屬體密封)/7000萬次（彈性體密封）
    ・對應插入式配氣塊!
    ・插入式金屬底座 (IP40)/插入式插座連接底座 (IP67)
    ・底座型式: SS5Y3, SS5Y5, SS5Y7
安全上的注意　3/4/5通口電磁閥 /共通注意事項
機種選定/技術資料　Quick Selection Table　綠色對應 (RoHS)
系列流量特性
4/2→5/3（A/B→EA/EB）
C［dm3/（s・bar）］		流量特性
4/2→5/3（A/B→EA/EB）
b		氣壓缸
驅動尺寸		消耗
電力
(W)
SY30001.60.19φ500.35(標準)
0.1(附省電迴路)
SY50003.60.17φ630.35(標準)
0.1(附省電迴路)
SY70005.90.20φ800.35(標準)
0.1(附省電迴路)

產品特點

■Thanks to the flow increase, valve size can be reduced!

Saves energy and space.

■Manifold variations

Plug-in Metal Base [IP40]


Plug-in Connector Connecting Base [IP67]

■Wiring
■Power saving
■Space saving/Improved operability

Wiring, piping and operation are integrated on one side.

Multiple layer type is available as an option.
This saves space in the lateral direction.


Bottom ported is prepared(A, B port). Space saving

Bottom ported reduces the footprint.

4-position dual 3-port valve available
(Only rubber seal type)

Two 3-port valves built into one body


Different sizes (SY3000/5000 or SY5000/7000) can be mixed!

Possible to reduce installation space, the number of serial units and wirings.

■Improved safety

Back pressure check valve

This prevents actuator and air operated valve malfunctions caused by the exhaust from other valves.


With residual pressure release valve (SY5000/7000)


Lever Type

SUP Stop Valve Spacer (With residual pressure release valve)

Slotted Type
SUP stop valve spacer
(With residual pressure release valve)

Air supply to each valve can be stopped individually. The valve and cylinder can be replaced without stopping other devices and equipment.

Slotted Type
Double check spacer
(With residual pressure release valve)

Long time of intermediate stop and position holding are possible.

With slide locking manual override

ON/OFF operation and locking can be performed with the manual slide.

Made to Order: With safety slide locking manual override/SY3000/5000/7000-X13

Double action manual override prevents incorrect operation!

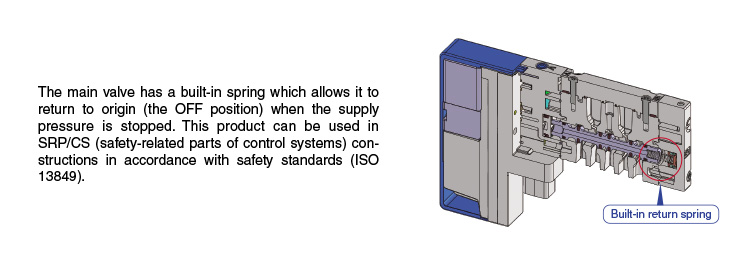

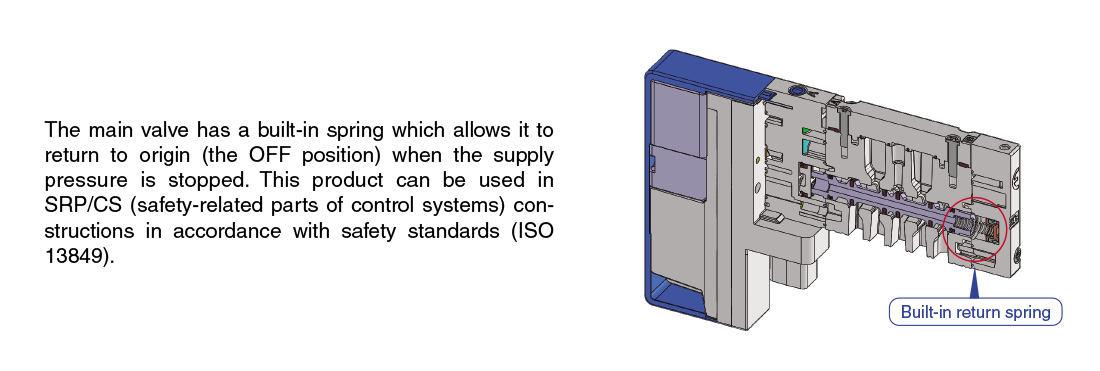

Made to Order: 2-Position Single Solenoid Valve with Built-in Return Spring (Only rubber seal type)
SY3000/5000/7000-X350

The main valve returns to the OFF position when it is not pressurized.

■Piping options
■Plug-in 5-Port Solenoid Valve with 4(A)/2(B) Port Pressure Sensor
■Application Examples

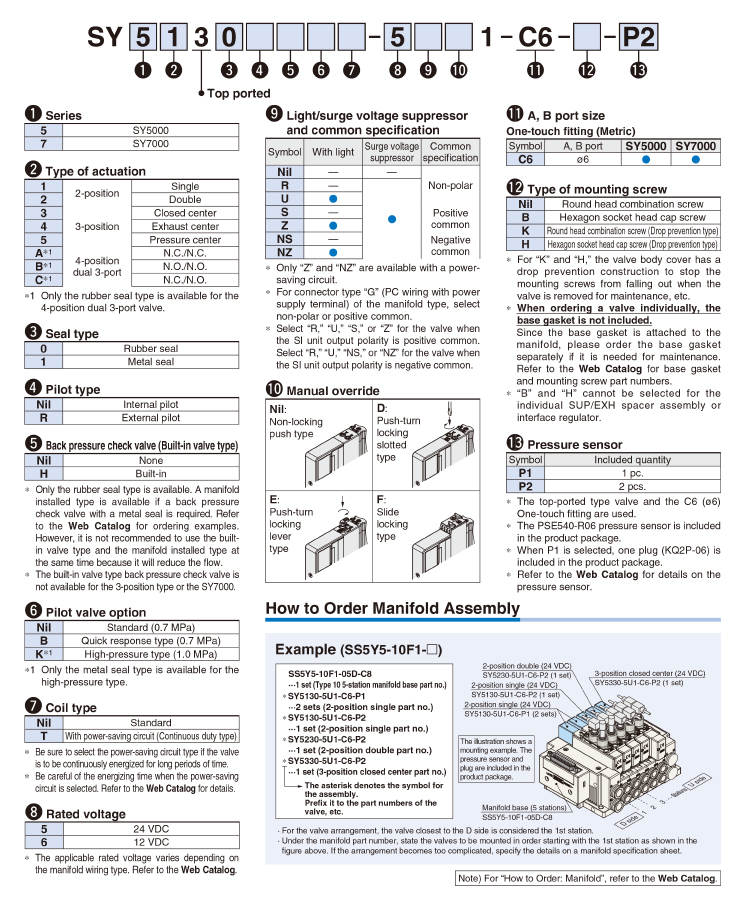

■How to Order Valves(With mounting screw)
■Only for External Pilot Vacuum Release Valve with Restrictor Series SY3A□R/SY5A□R

Vacuum suction and release can be controlled with a single valve!
