省配線現場總線系統 (串列傳輸系統)
串列傳輸系統 EX260
| 系列 | 保護構造 | 通訊協定∗ | 適用電磁閥 |
|---|---|---|---|
| EX260 | IP67 | DeviceNet™ PROFIBUS DP CC-Link EtherCAT® PROFINET EtherNet/IP™ Ethernet POWERLINK IO-Link (只對應SY, JSY, VQC) | SY3000，5000，7000 (插入式) JSY1000，3000，5000 VQC1000，2000，4000 SV1000，2000，3000 S0700（IP40） |
產品特點

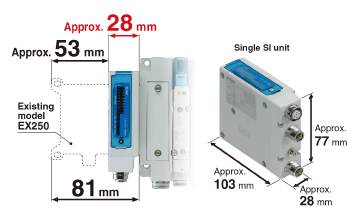

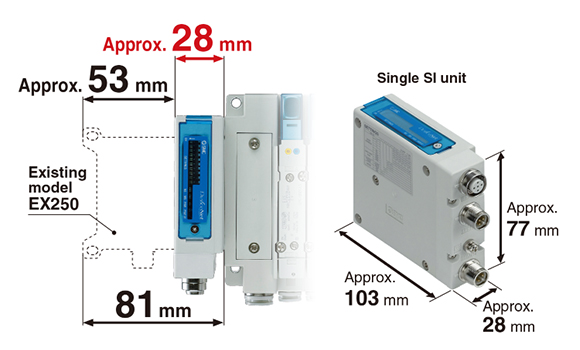

■Space-saving installation: Compact Approx. 28mm
■Manifold length reduced by approx. 53 mm

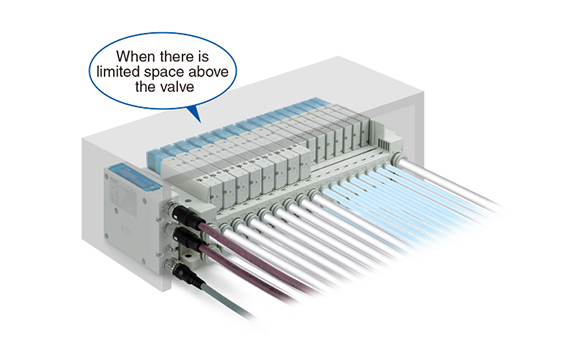

■Wiring and piping from the same direction is possible.（for side ported）

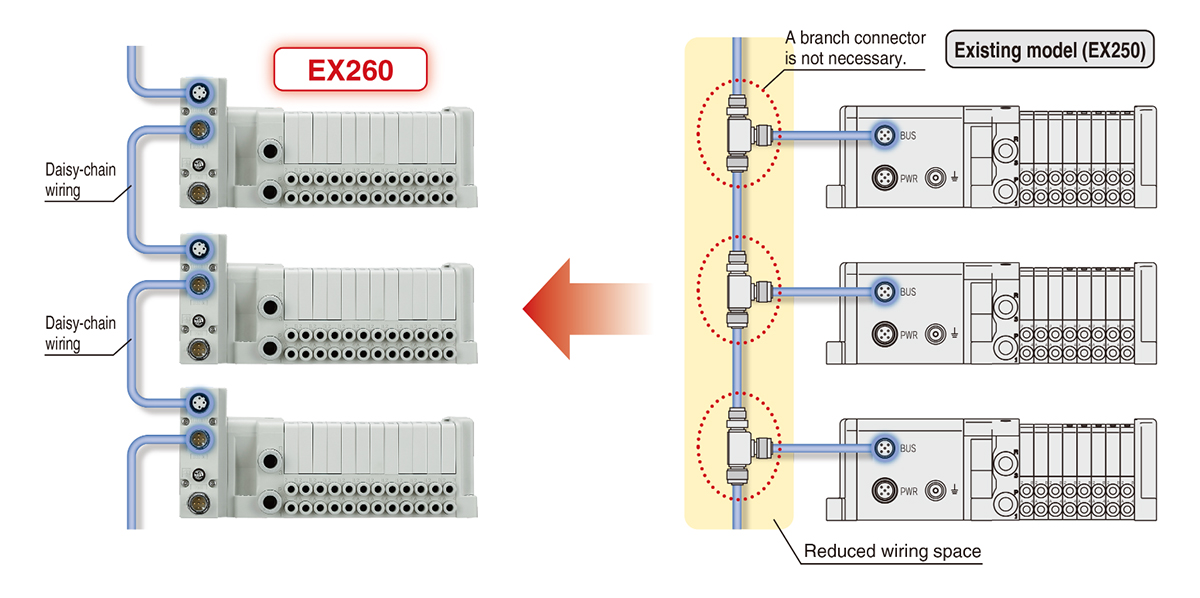

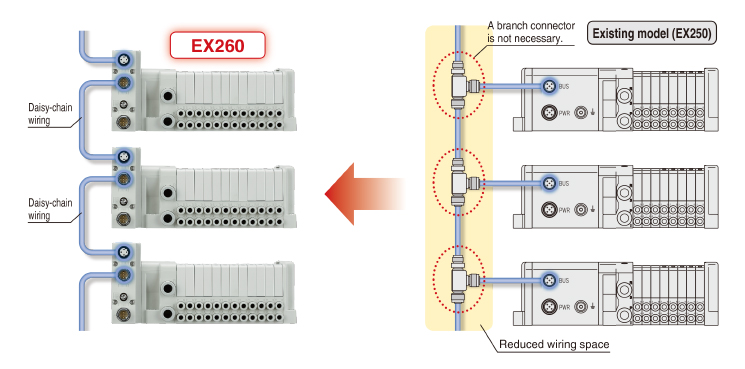

■Daisy-chain wiring communication is possible. ※1
A branch connector is not necessary/Reduced wiring space
※1 Excludes the units compatible with IO-Link

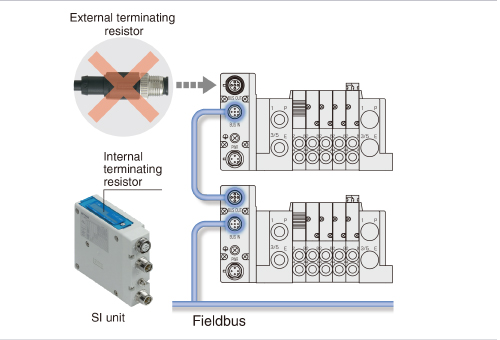

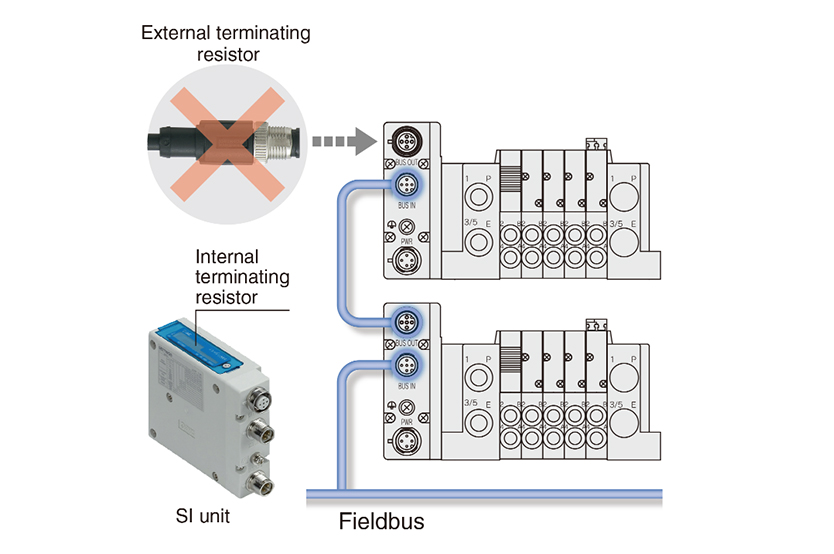

■An external terminating resistor is not necessary.
（Only available for M12 PROFIBUS DP, CC-Link communication connectors）
（Only available for M12 PROFIBUS DP, CC-Link communication connectors）
ON/OFF switching is possible with an internal terminating resistor.
An external terminating resistor is not necessary.

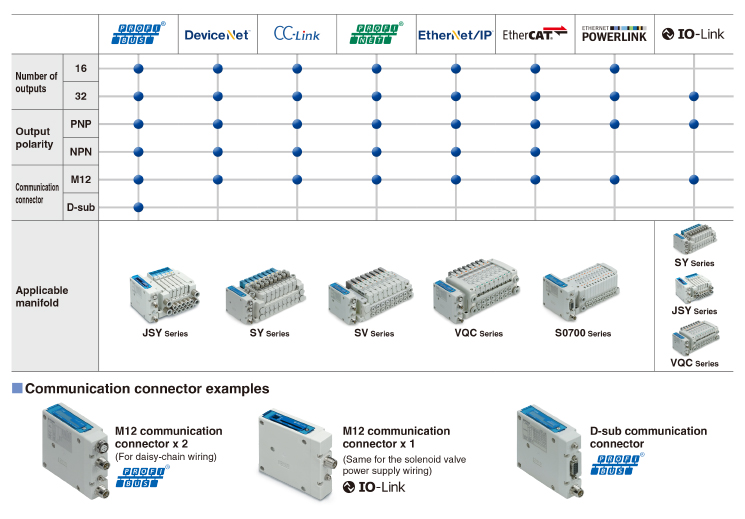

■Product Specification Variations

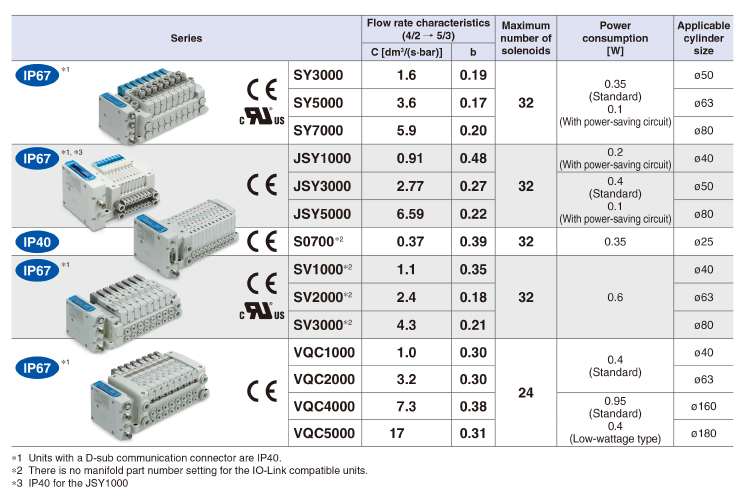

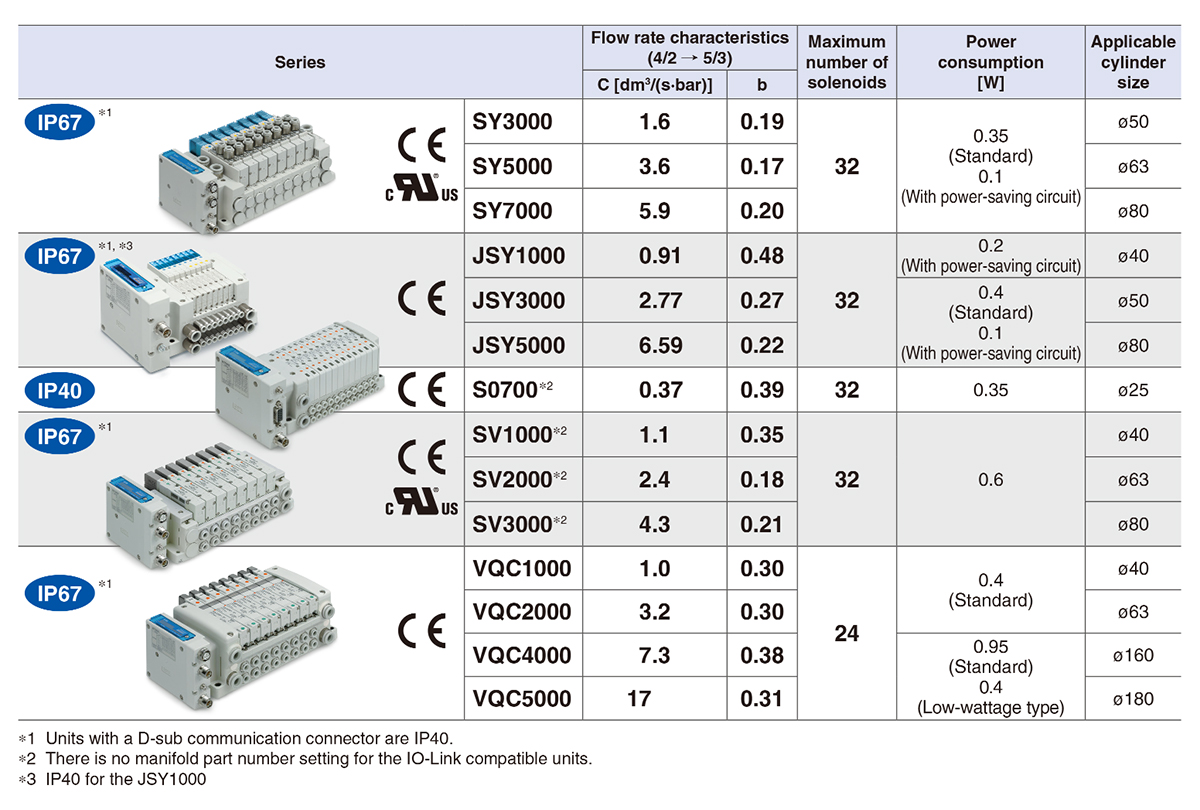

■Applicable Valve Series
■IO-Link compatible New

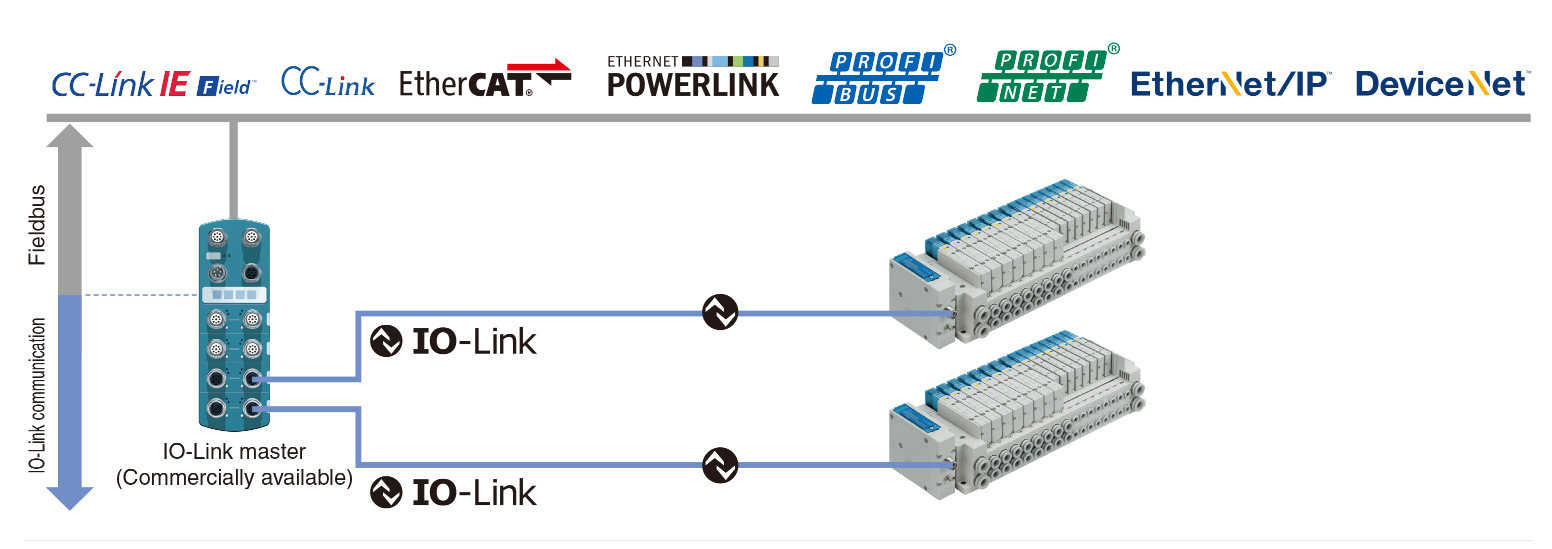

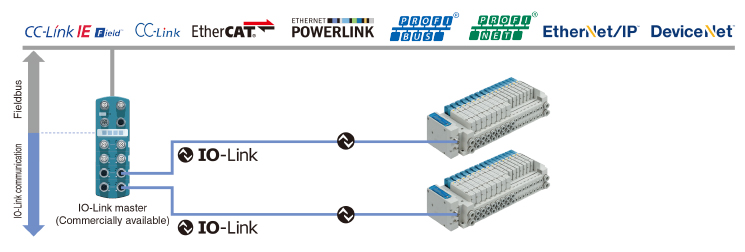

Integratable with various existing networks
Integratable with various existing networks
IO-Link devices can be easily connected to various networks via the IO-Link master, which acts as a gateway between IO-Link communication and various Fieldbusses.
Solenoid valves can be connected for communication without relying upon a Fieldbus or PLC.

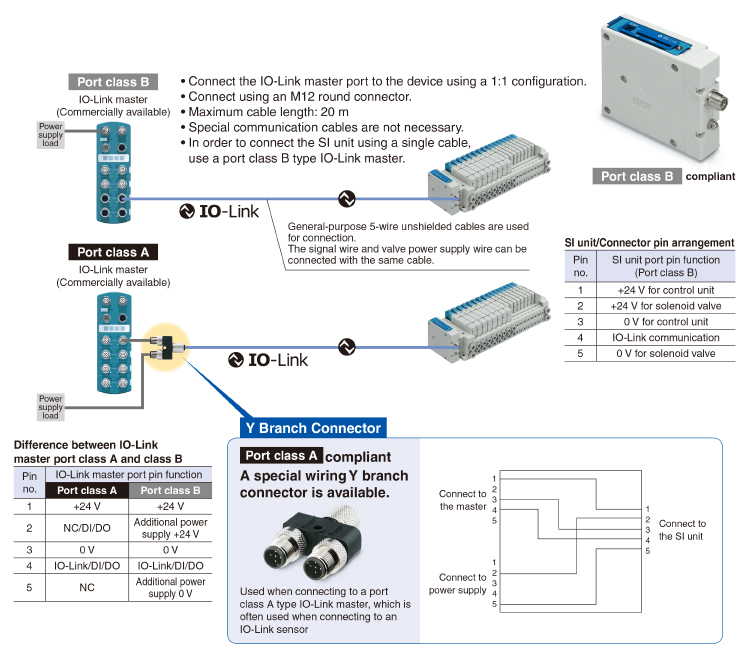

■Can be connected using a single general-purpose cable,resulting in a reduction in the space required for wiring

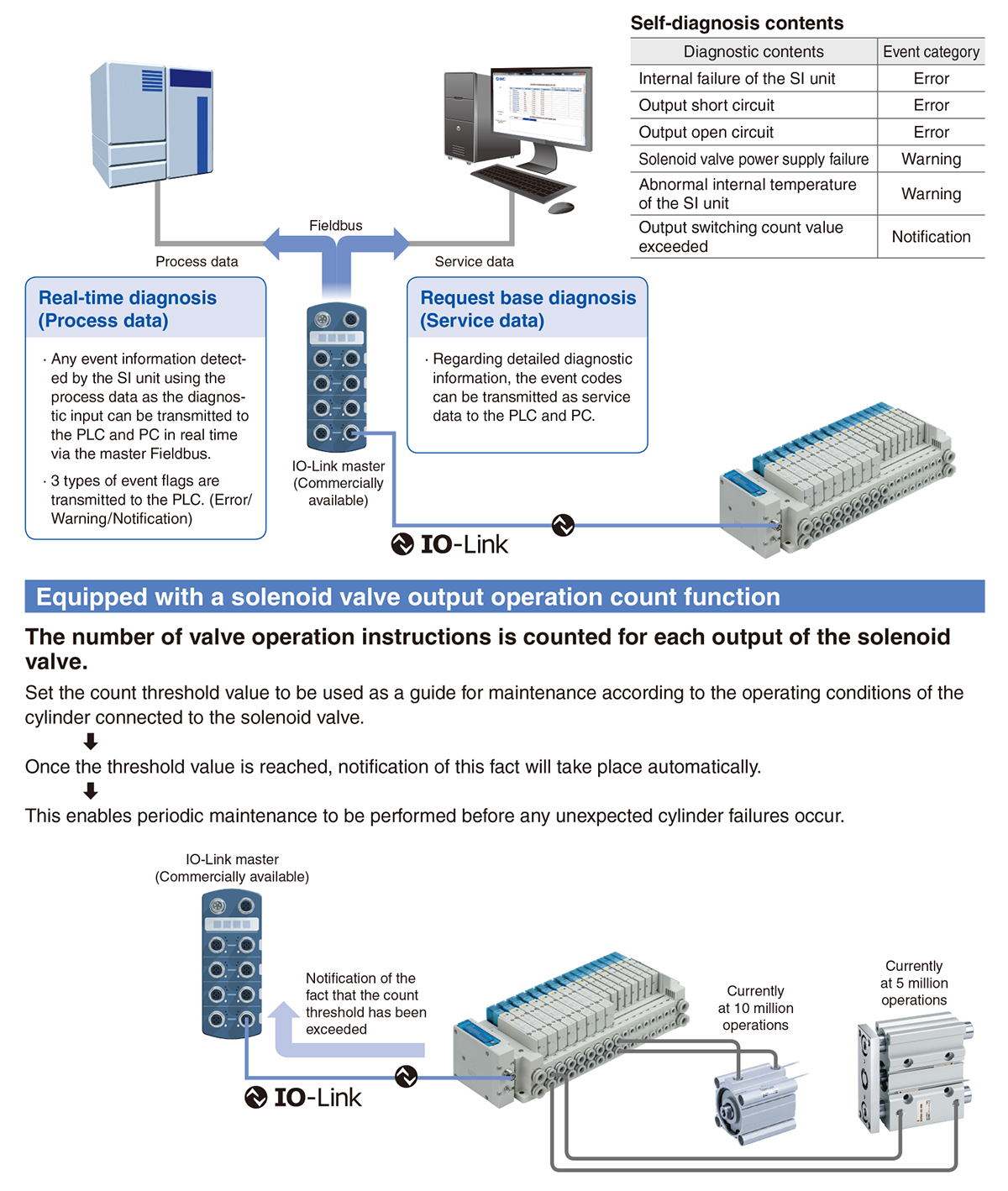

■Features an impressive self-diagnosis function
