空气干燥机

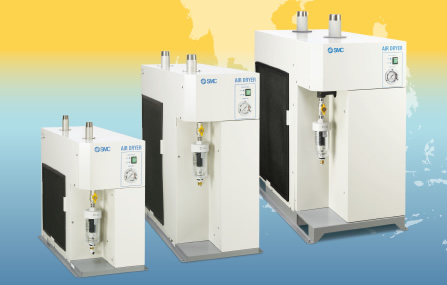

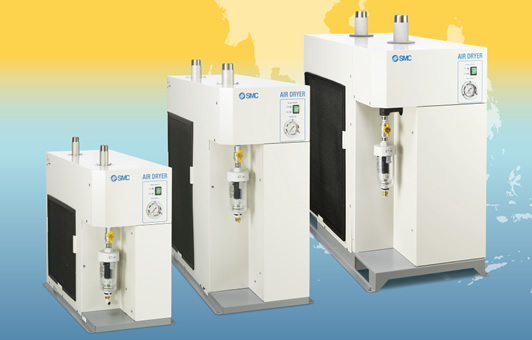

冷冻式空气干燥机／面向东南亚规格 IDFC□

    ・对应热带地区的高温环境
    ・对应高温环境
    　环境温度:最高45℃
    　进口空气温度:最高80℃
    　露点范围:3℃到20℃
    ・处理空气流量:4.7m3/min (比以前型号提高33%)
    ・电源电压:单向AC230V(50Hz)
安全注意事项　压缩空气净化元件/共通注意事项
选型・技术资料　环保认证(RoHS)
系列额定入口条件处理空气流量
(m3/min [ANR] )
出口空気圧力露点温度
3℃		处理空气流量
(m3/min [ANR] )
出口空気圧力露点温度
10℃		处理空气流量
(m3/min [ANR] )
出口空気圧力露点温度
20℃		使用冷媒接管口径
IDFC6050℃
0.7MPa		0.92.84.7R410A(HFC)
GWP：2088		R1
IDFC7050℃
0.7MPa		1.64.77.8R410A(HFC)
GWP：2088		R1 1/2
IDFC8050℃
0.7MPa		2.26.510.9R410A(HFC)
GWP：2088		R2
IDFC9050℃
0.7MPa		3.19.215.4R410A(HFC)
GWP：2088		R2

产品特点

■Applicable for the high-temperature environments of tropical regions
■Can be used in hightemperature environments

Applicable to high-temperature environments in Southeast Asia

■Increased air flow capacity

Maximum dew point: 20°C

■New stainless steel heat exchanger helps reduce the load of the compressor
■Easier maintenance

● The red zone indicates an overload operation.
Can be used to check for high operating conditions Can notify you when the dustproof filter requires cleaning

■Auto Drain Valve Longer life, Higher resistance to foreign matter
■Series Variations
■Options

・Anti-corrosive treatment for copper tube
・With Chinese labels and a Chinese operation manual ［New］
・With a heavy-duty auto drain
・With an earth leakage breaker
・ With a terminal block for operating, error, and remote operation signals
・With a timer controlled solenoid valve type auto drain

■Optional accessories

・Foundation bolt set
・Piping adapter
・Bypass piping set ［New］

■Selecting an ideal product for maximum energy savings

By choosing a dew point that is too low, you may have selected an air dryer with higher capabilities than necessary.
Selecting a dryer with specifications appropriate for the operating environment can allow for savings in energy and space.
