Electronic Pressure Switches/Sensors (Remote Type)
Pressure Sensor/Switch for General Fluids PSE57□
-
・Switch output specification
・IO-Link compatible
・Withstand voltage: 500 VAC
・Enclosure: IP65
・Materials of parts in contact with fluid
Piping port: C3604 + Nickel plating
Pressure sensor: Al2O3 (Alumina 96%)
O-ring: FKM + Grease (PSE570/573/574)
Square ring: FKM (PSE575/576/577)
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Pressure Sensor/Switch for General Fluids PSE57□
Manual
Series Type View search result PSE570 Positive pressure View search result PSE573 Compound pressure View search result PSE574 Positive pressure View search result PSE575 Positive pressure View search result PSE576 Positive pressure View search result PSE577 Positive pressure View search result Pressure Sensor/Switch for General Fluids PSE57□
DoC
Series Type View search result PSE570 Positive pressure View search result PSE573 Compound pressure View search result PSE574 Positive pressure View search result PSE575 Positive pressure View search result PSE576 Positive pressure View search result PSE577 Positive pressure View search result
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range | Proof pressure |
|---|---|---|---|
| PSE570 | Positive pressure | 0 to 1 MPa | 3.0 MPa |
| PSE573 | Compound pressure | －100 to 100 kPa | 600 kPa |
| PSE574 | Positive pressure | 0 to 500 kPa | 1.5 MPa |
| PSE575 | Positive pressure | 0 to 2 MPa | 5.0 MPa |
| PSE576 | Positive pressure | 0 to 5 MPa | 12.5 MPa |
| PSE577 | Positive pressure | 0 to 10 MPa | 30 MPa |
Features

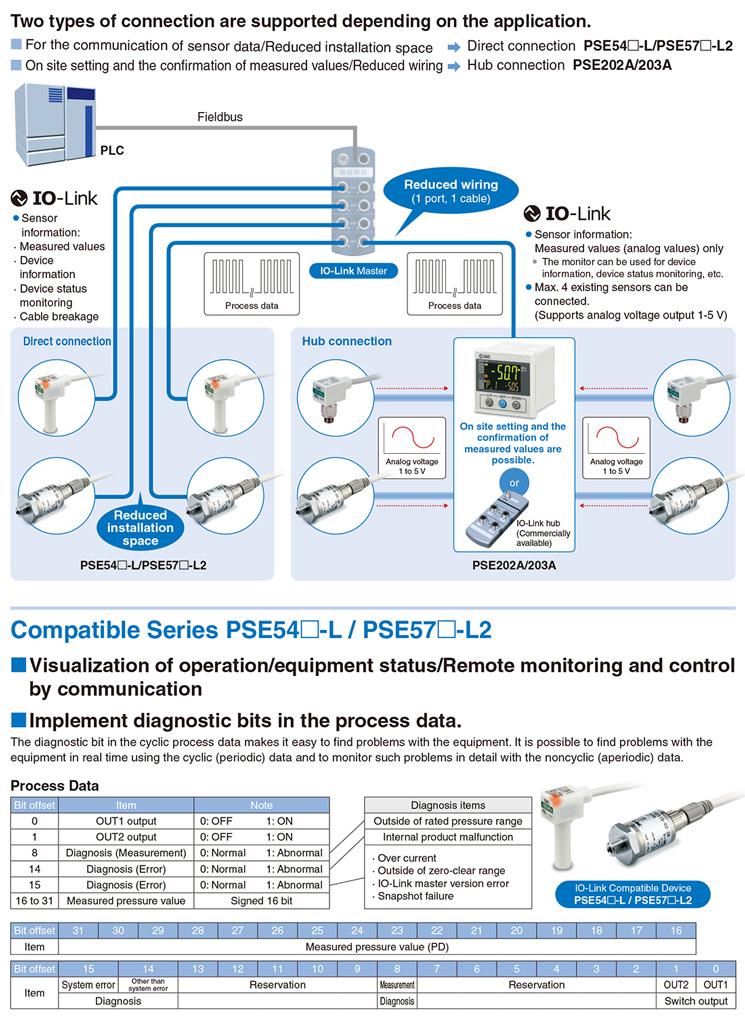

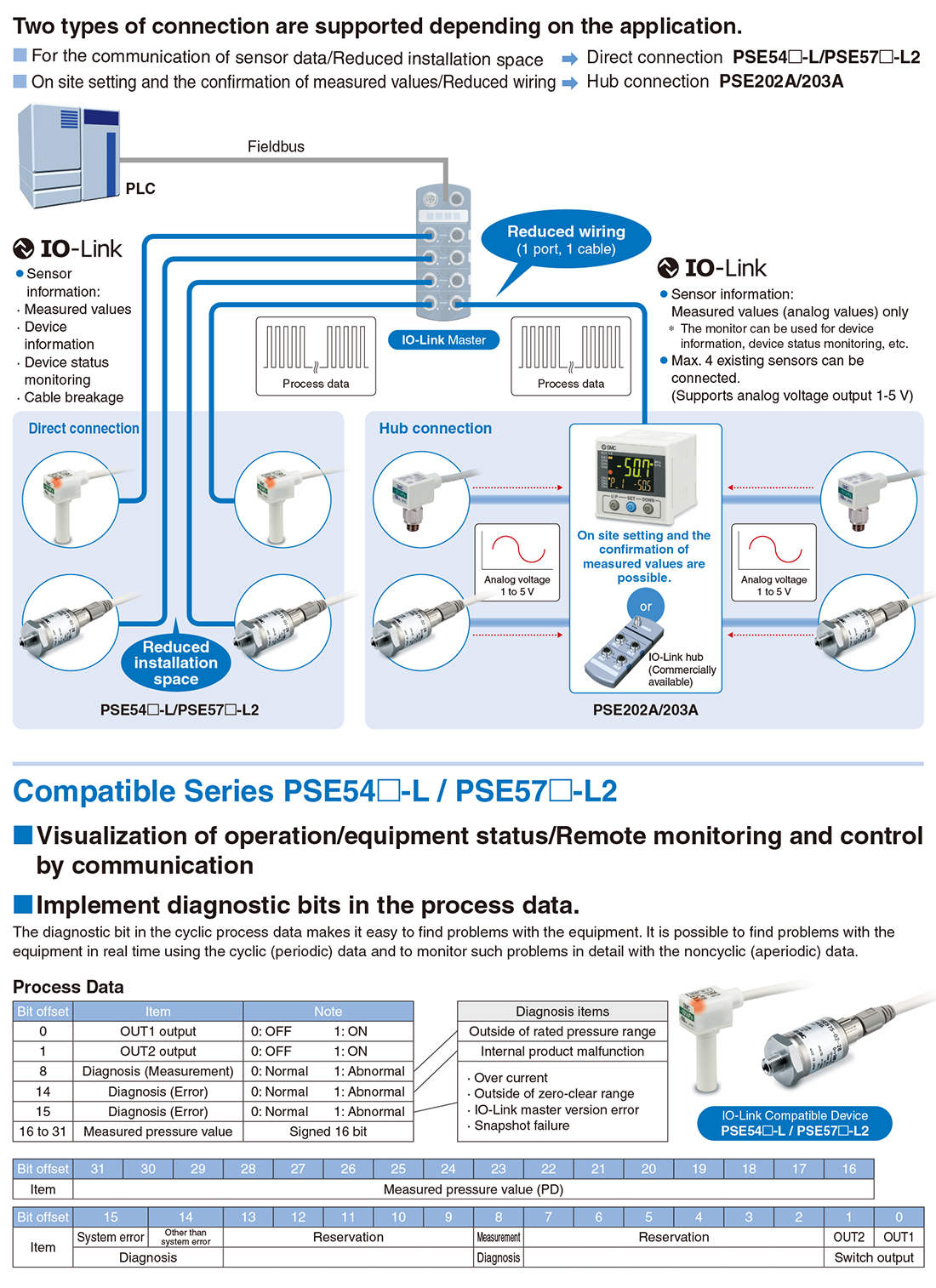

IO-Link Compatible

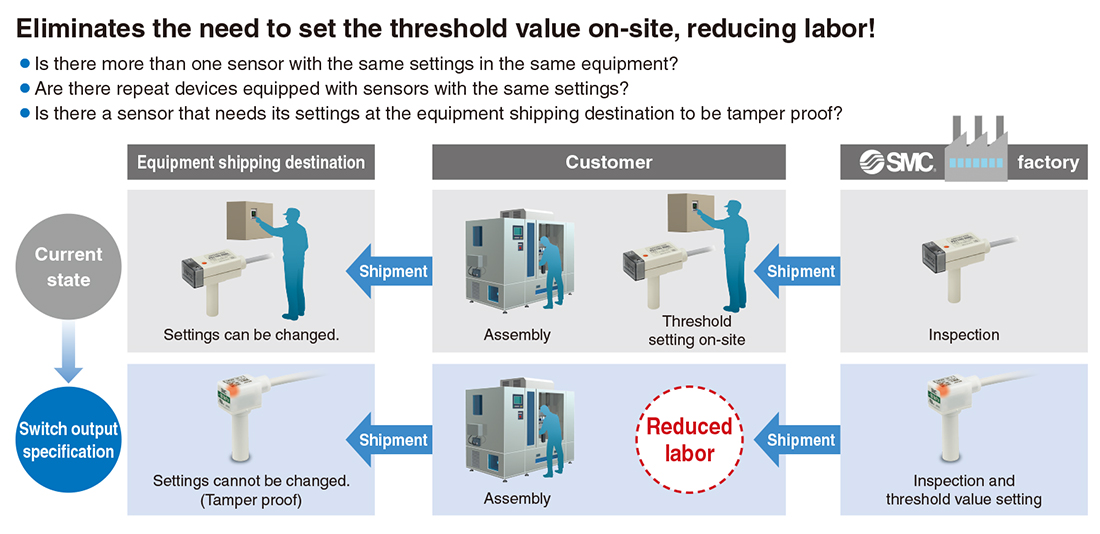

Switch Output Specification (Factory setting)

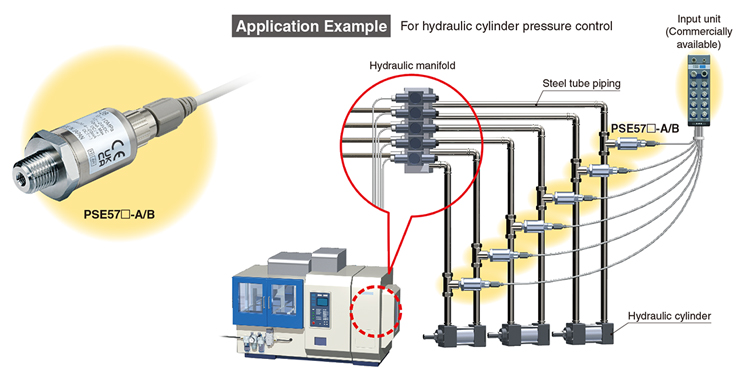

Compatible with small switches for general fluids
