Speed Controllers for General Purposes

Speed Controller with Compact Indicator AS-FSA

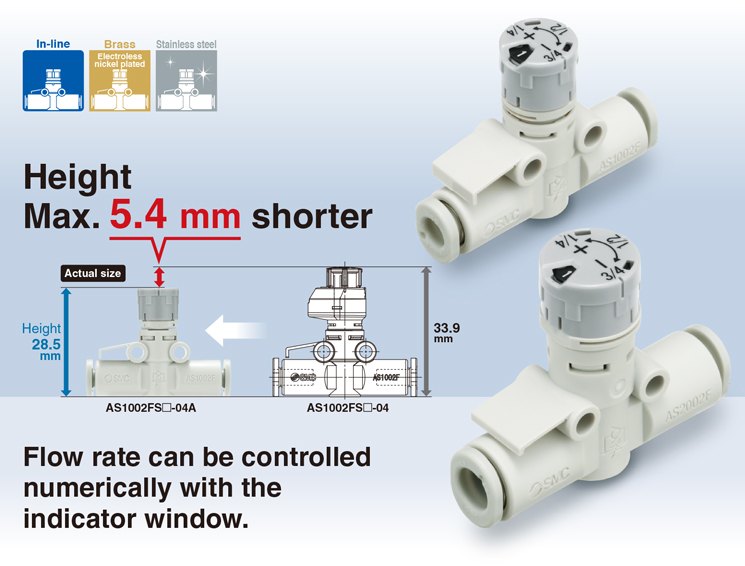

    ・Height: Max. 5.4 mm shorter

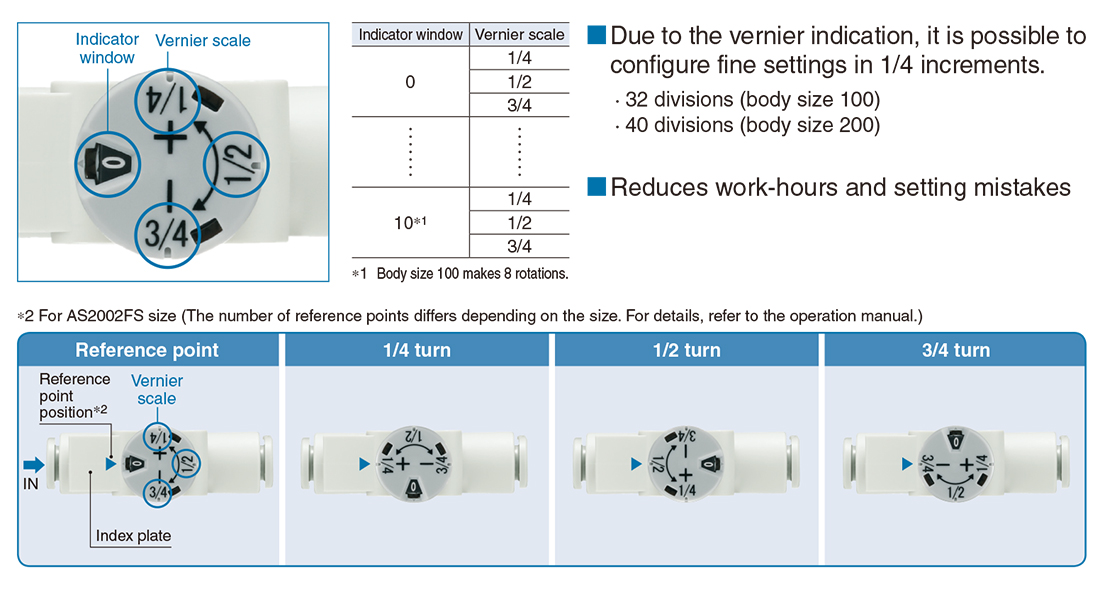

    ・Flow rate can be controlled numerically with the indicator window.
    　Due to the vernier indication, it is possible to configure fine settings in
    　1/4 increments.
    　Reduces work-hours and setting mistakes

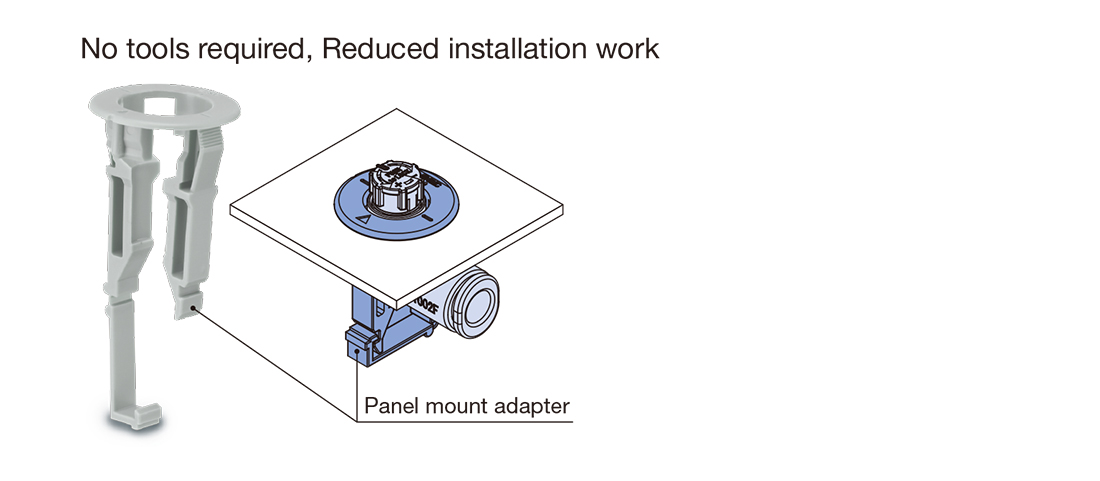

    ・A type with a panel mount adapter has been added.
    　No tools required, Reduced installation work
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Speed Controller with Compact Indicator AS-FSA
    Manual
    Type Series View search result
    In-line typeAS1002FS-□A to AS4002FS-□AView search result
Safety Instructions　Flow Control Equipment/Precautions　Series Variation
Green Procurement (RoHS)

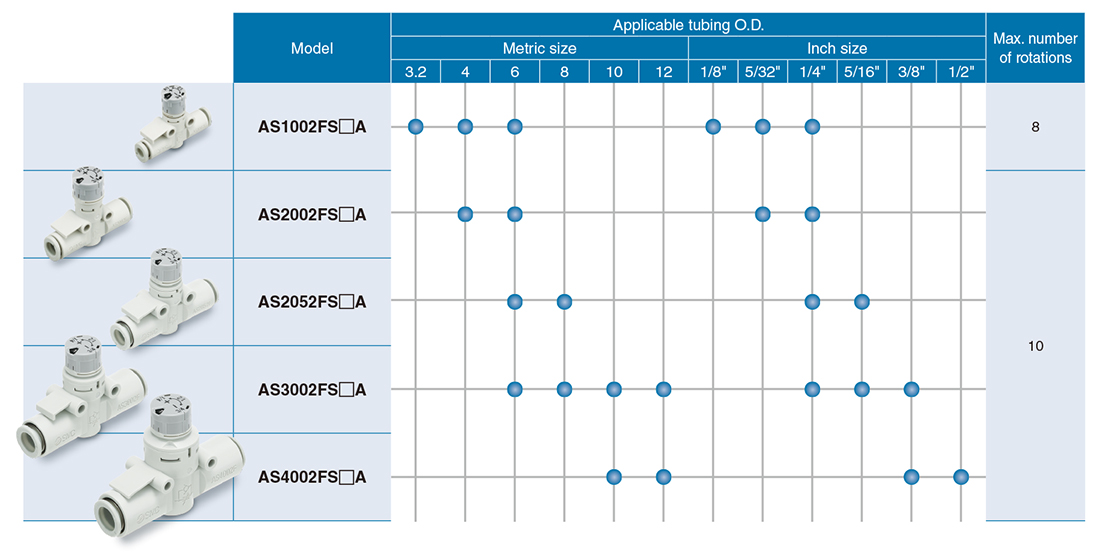

TypeSeriesPort size
on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
In-line typeAS1002FS-□A to AS4002FS-□A-φ3.2 to φ12φ1/8'' to φ1/2''

Features

Height: Max. 5.4 mm shorter

Flow rate can be controlled numerically with the indicator window.

A type with a panel mount adapter has been added. New

Series Variations

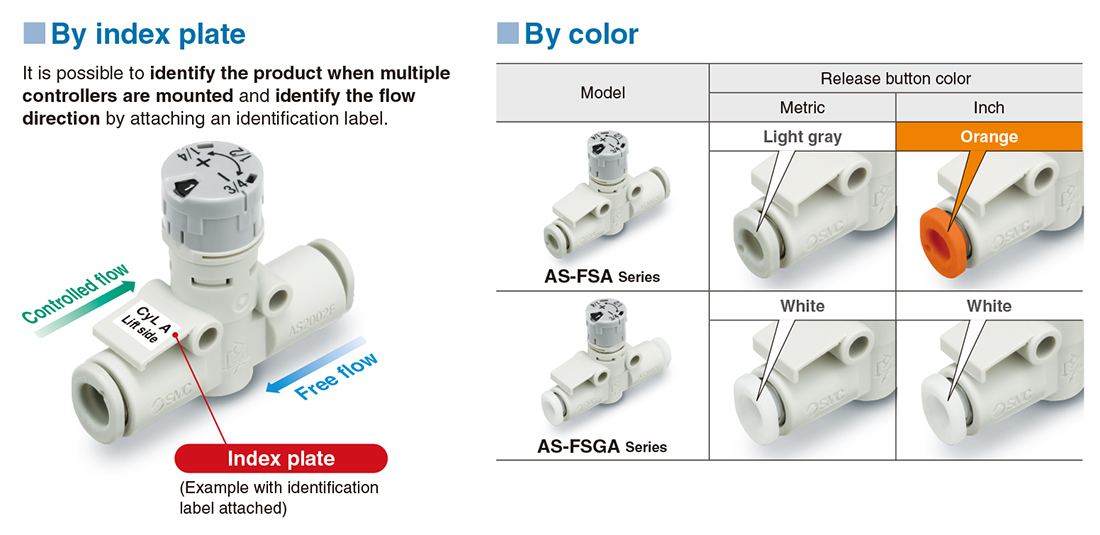

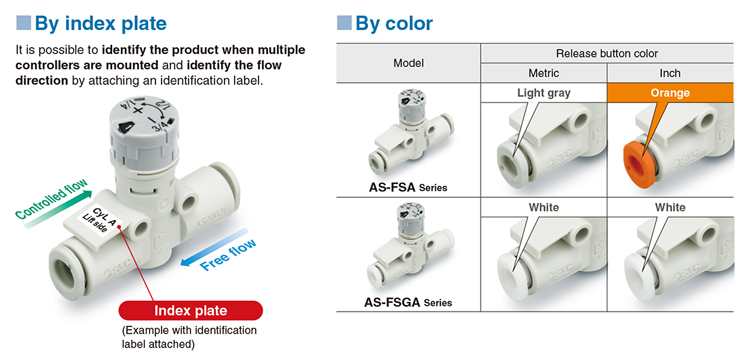

Easy Identification of Product Type
