Thermo-Chillers (Circulating Fluid Temperature Controllers) Standard Type/Basic Type

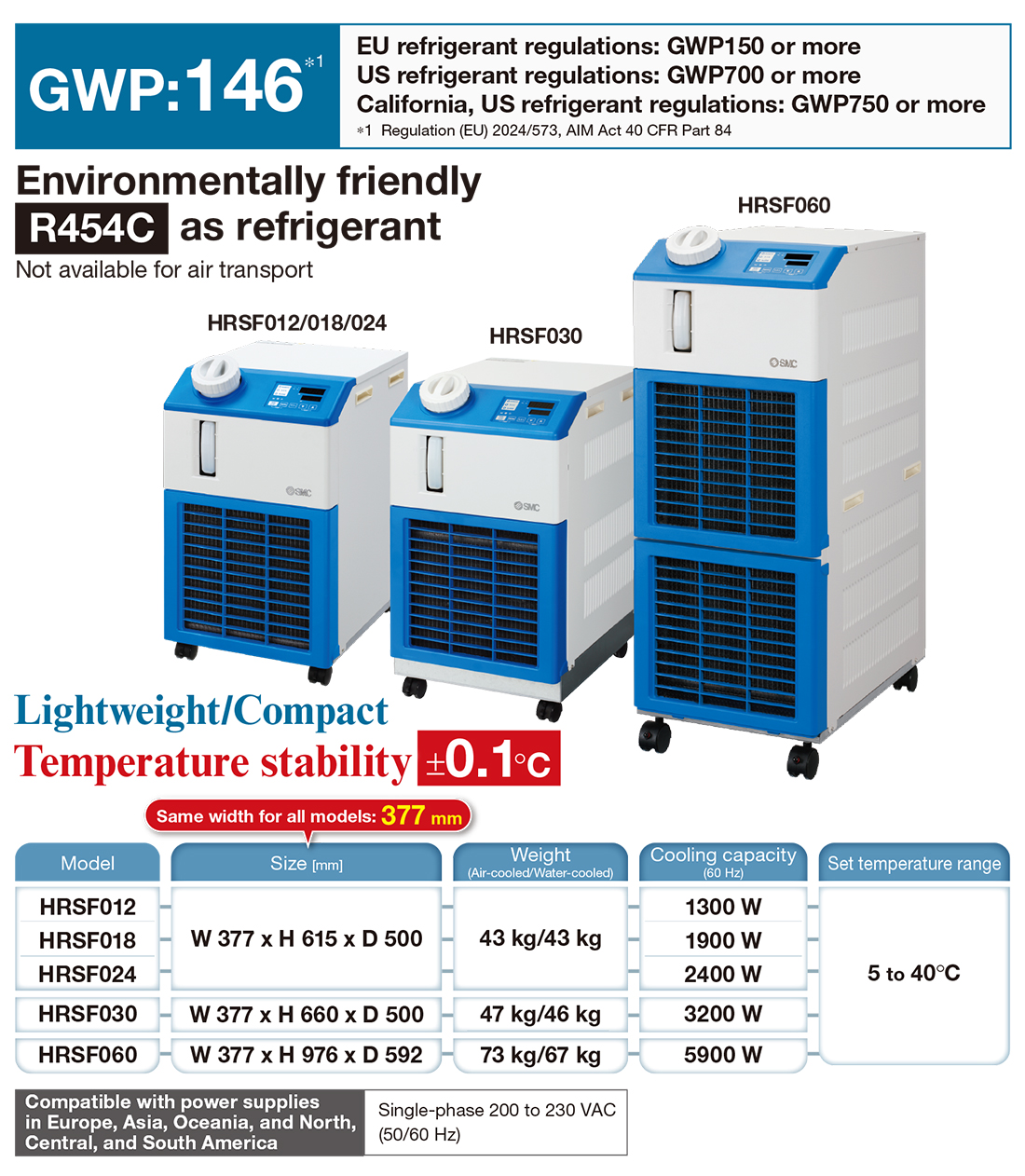

Low GWP Refrigerant Chiller Thermo-chiller Standard Type HRSF

    ・Low GWP Refrigerant Chiller
    　GWP: 146∗ ∗ Regulation (EU) 2024/573, AIM Act 40 CFR Part 84
    　EU refrigerant regulations: GWP150 or more
    　US refrigerant regulations: GWP700 or more
    　California, US refrigerant regulations: GWP750 or more
    ・Environmentally friendly R454C as refrigerant (Not available for air transport)
    ・No heater is required, as the circulating fluid is heated using only the heat exhausted by the refrigerating circuit.
    ・Compatible with power supplies in Europe, Asia, Oceania, and North, Central, and South America
    ・3-phase 400 VAC Low-noise design 70 dB(A)
    ・Outdoor installation IPX4
SeriesSet temperature
range		Cooling capacityTemperature
stability		Cooling methodCirculating fluid
HRSF012 to 0605 to 40℃15.7kW
20.5kW (Air-cooled)
20.6kW (Water-cooled)		±0.1℃Air-cooled refrigeration
Water-cooled refrigeration		Tap water
15 to 40% Ethylene glycol aqueous solution
Deionized water

Features

低GWP 冷媒対応



軽量・コンパクト



温度安定性±0.1℃

電源は、EU・アジア・オセアニア・北米・中南米に対応可能

・単相AC100V（50/60Hz）、AC115V（60Hz）
・単相AC200 〜 230V（50/60Hz）
