Electronic Flow Switches/Sensors

Flow Sensor PFMV5/PFGV301

    ・For suction verification of very small workpieces
    ・Repeatability: ± 2% F.S.
    ・Response speed: 5 ms or less, Withstand pressure: 500 kPa
    ・Grease-free, RoHS compliant
    ・Only 1 voltage monitor is required to cover the complete range.
    ・Related equipment: Suction filter ZFC050 series
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Flow Sensor PFMV5/PFGV301
    Manual
    Series View search result
    PFMVView search result
  • Flow Sensor PFMV5/PFGV301
    DoC
    Series View search result
    PFMVView search result
Safety Instructions　Pressure Switches/Flow Switches/Precautions　Flow Switch Series Variations
Green Procurement (RoHS)

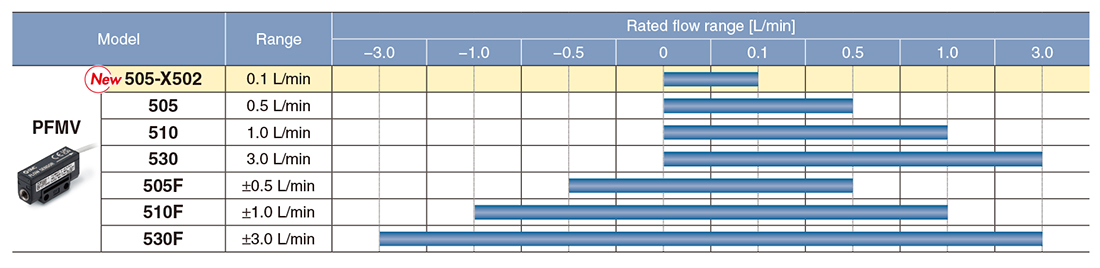

SeriesRated flow range (L/min)
PFMV0.0 to 0.1
0 to 0.5
0 to 1
0 to 3
－0.5 to 0.5
－1 to 1
－3 to 3

Features

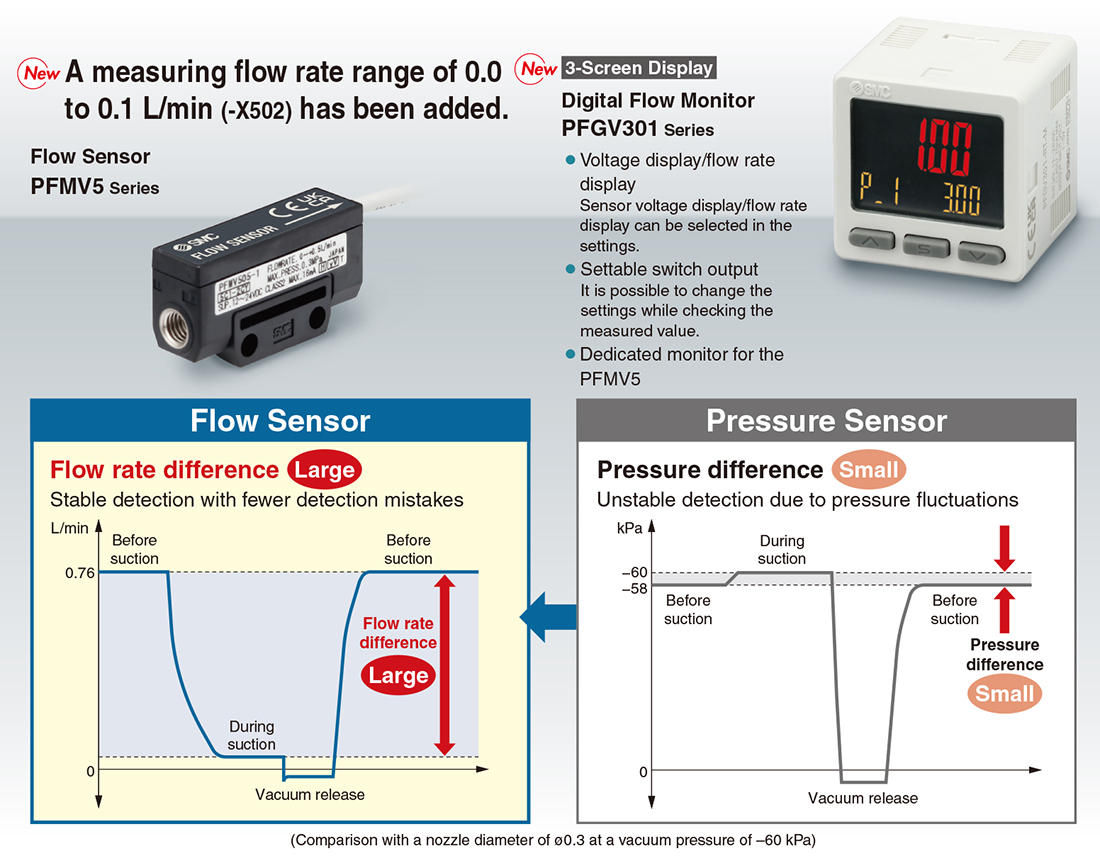

For suction verification of very small workpieces

The flow sensor enables more reliable suction verification than a pressure sensor.

Repeatability: ±2% F.S.

Withstand pressure: 500 kPa

Response speed: 5 ms or less

Grease-free

Variations

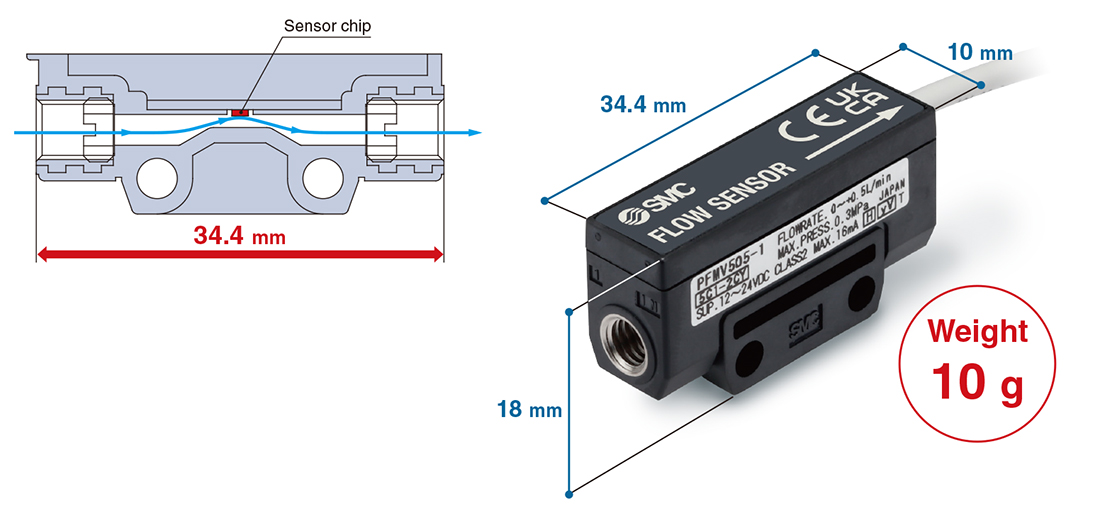

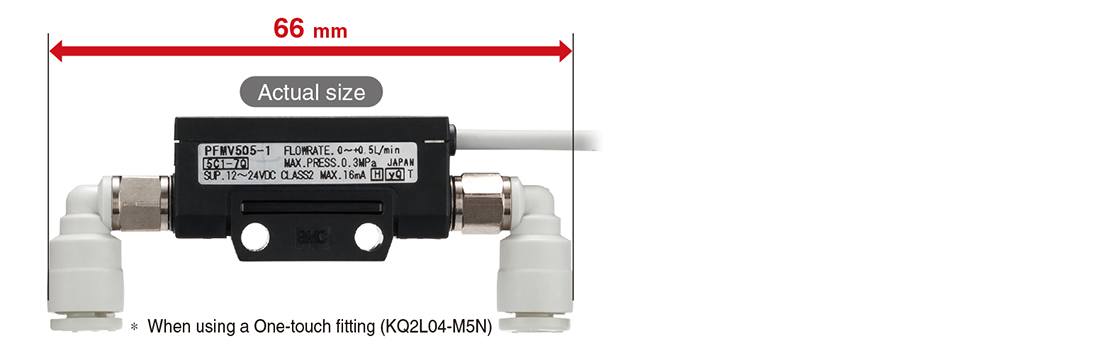

Compact and Lightweight

The taper-shaped flow passage in front of the sensor chip enables stable sensing.

Space-saving piping

The product is mountable in locations with limited space as piping space is not required.

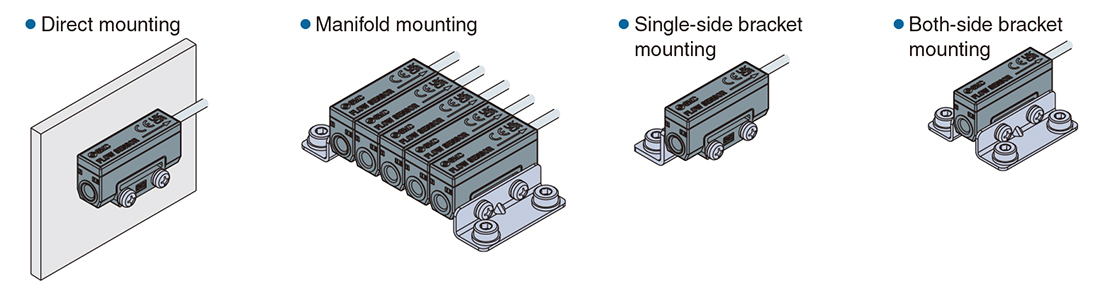

Mounting

With a bend-resistant cable

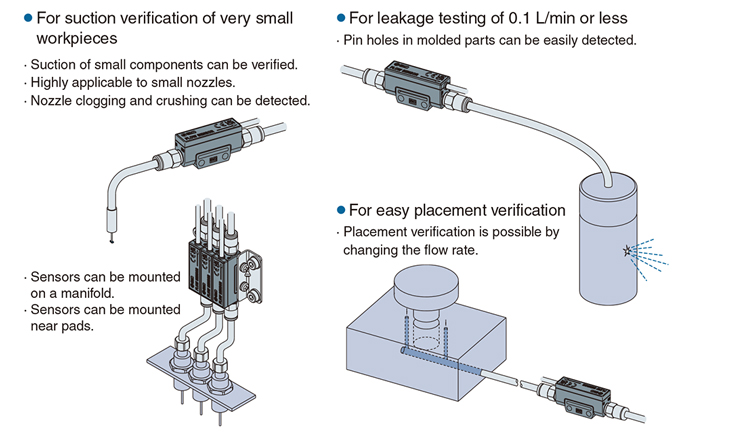

Applications

Related Equipment

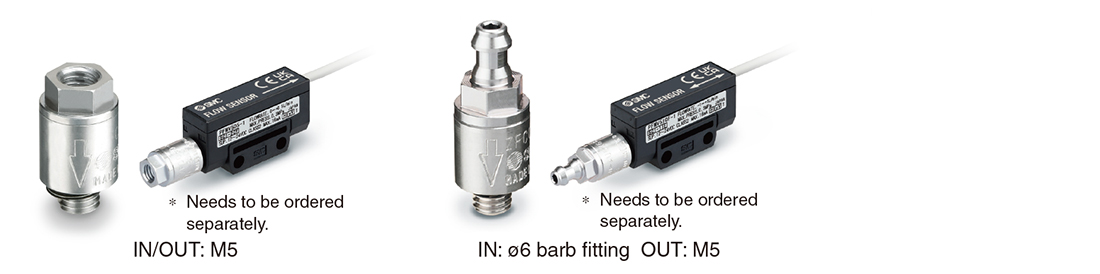

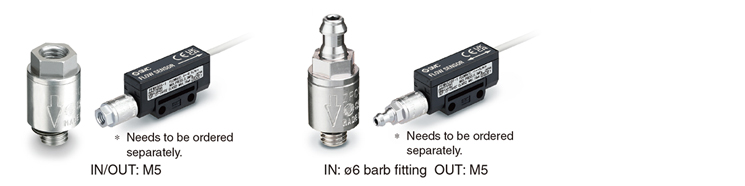

Compact Suction Filter

Filtration: 3 μm (Nominal)
Applicable tubing (O.D./I.D.): ø6/ø4

3-Screen Display Digital Flow Monitor PFGV301 Series

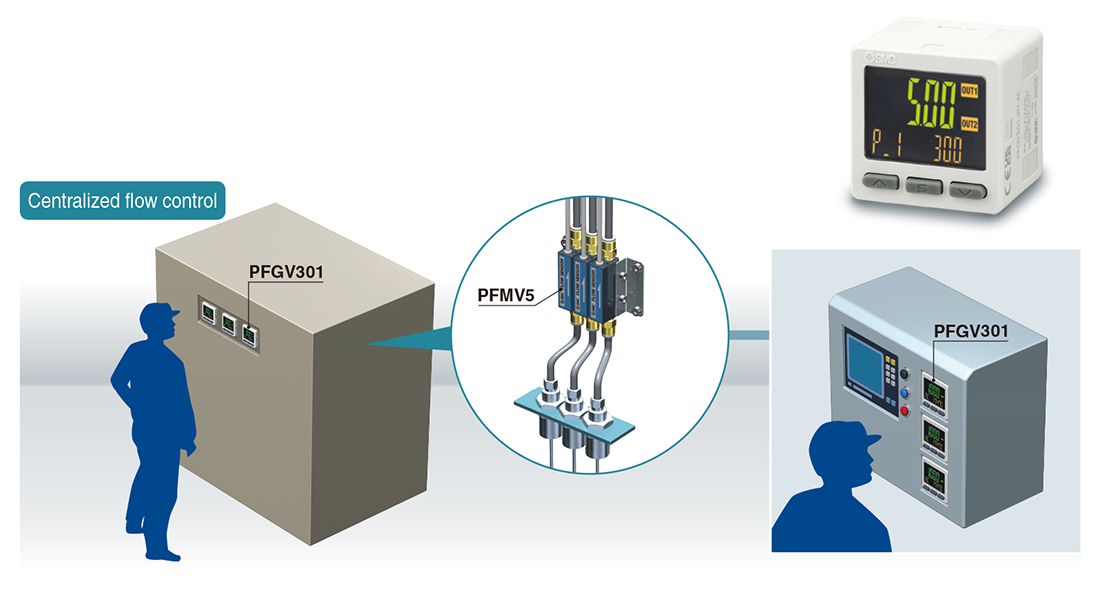

Allows for the monitoring of remote lines

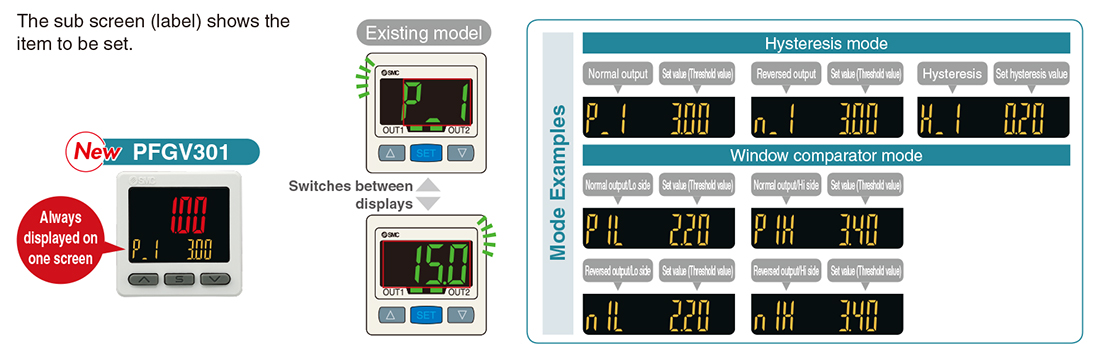

Visualization of settings

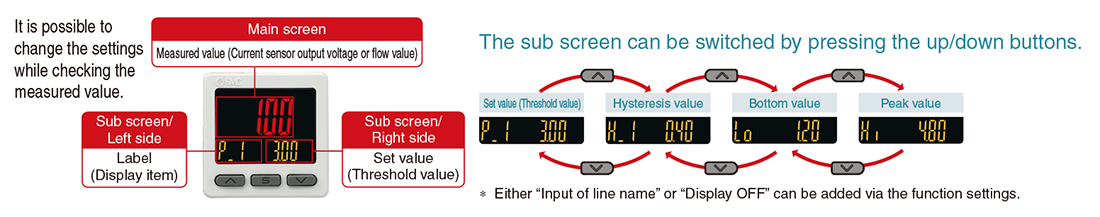

Easy screen switching

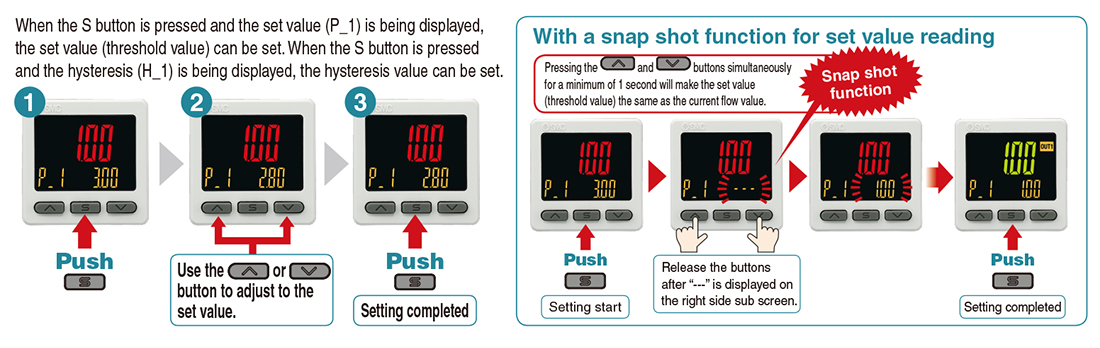

Simple 3-step setting

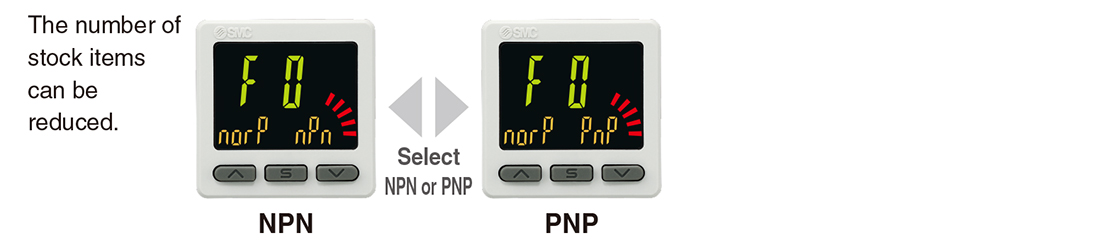

NPN/PNP switch function

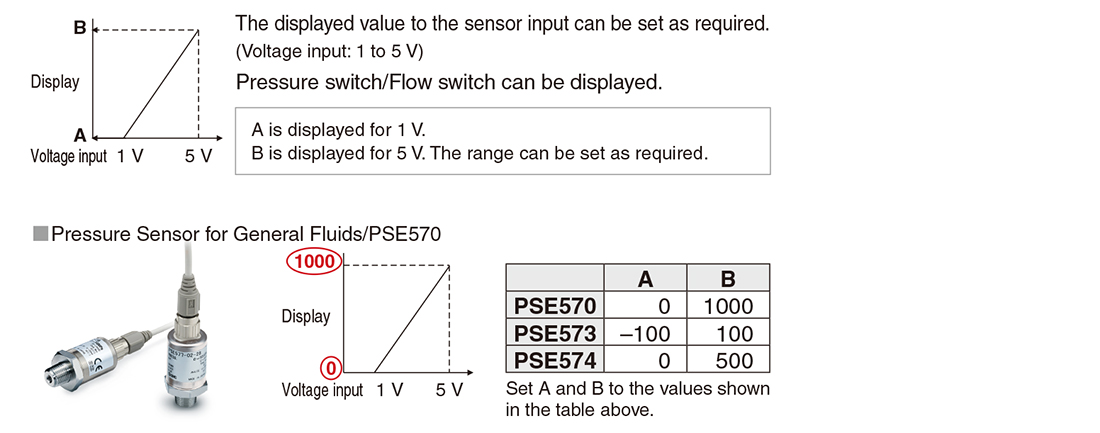

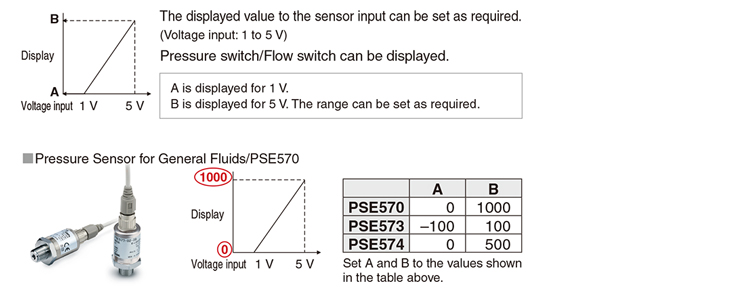

Input range selection (for Pressure/Flow rate)

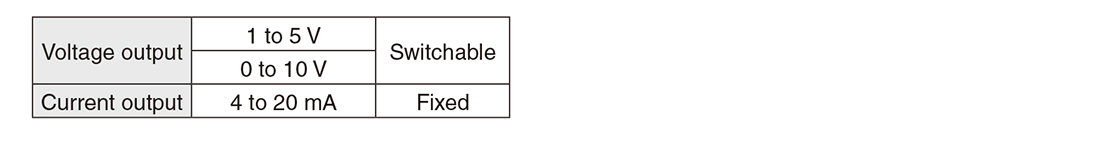

Analog output of 0 to 10 V is also available.

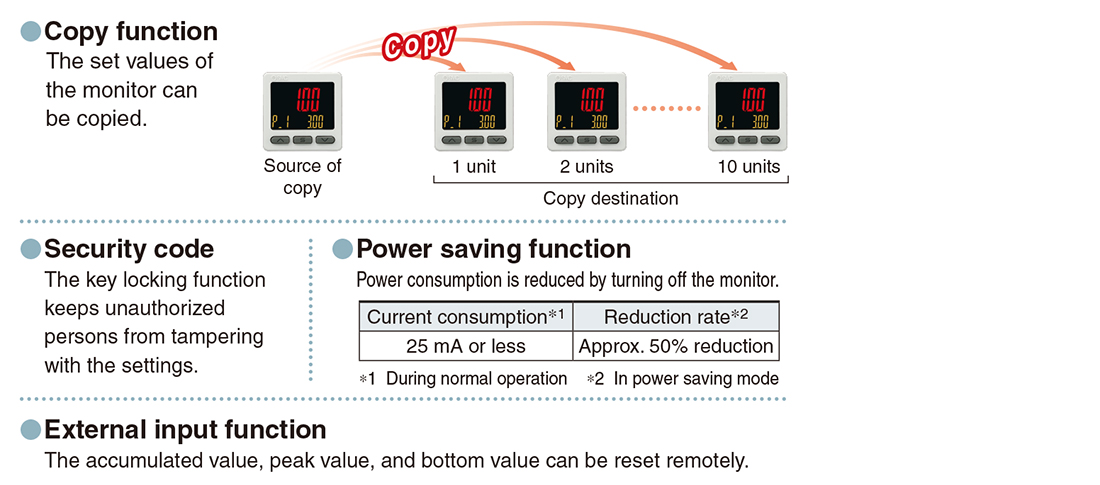

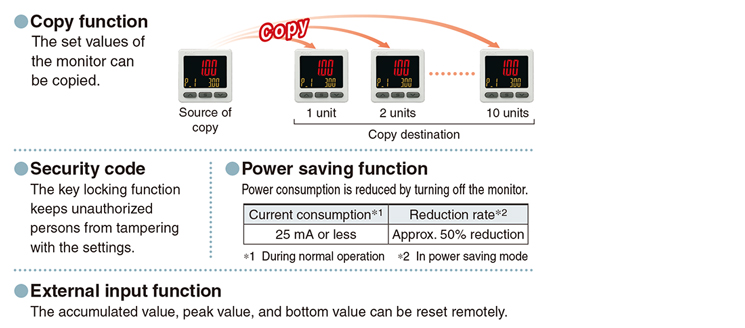

Convenient functions

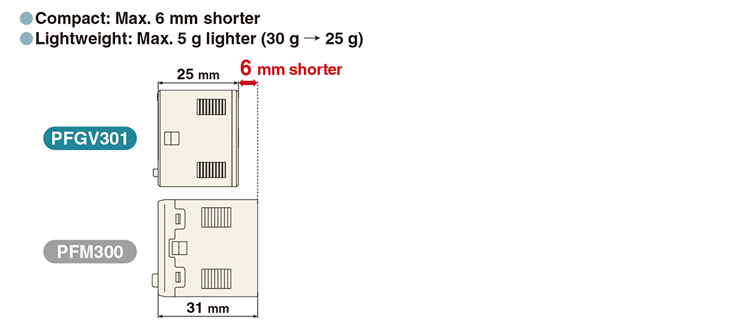

Compact & Lightweight

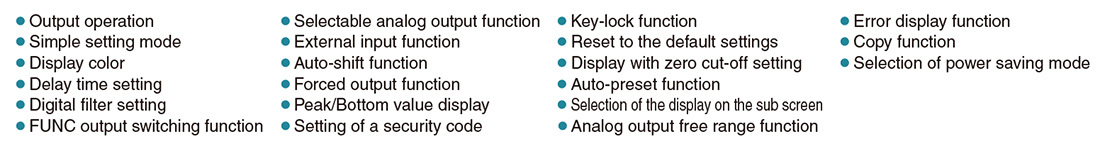

Functions

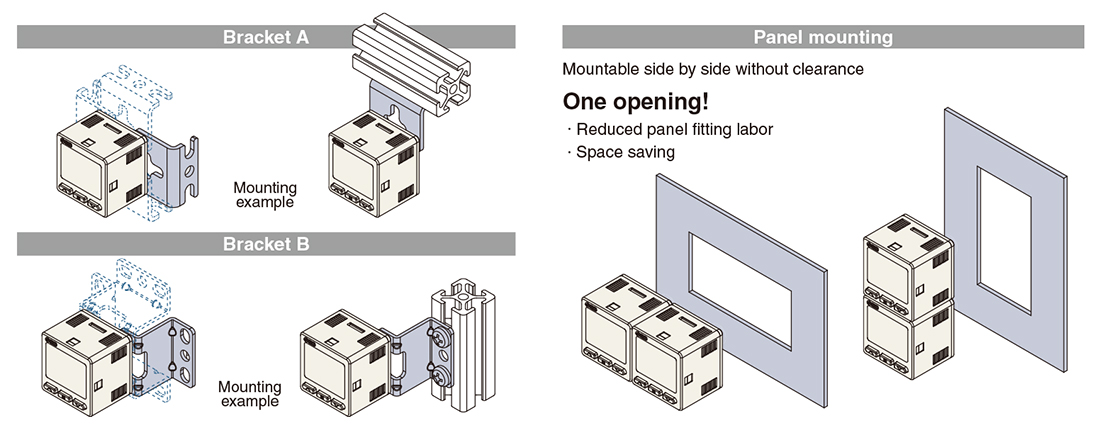

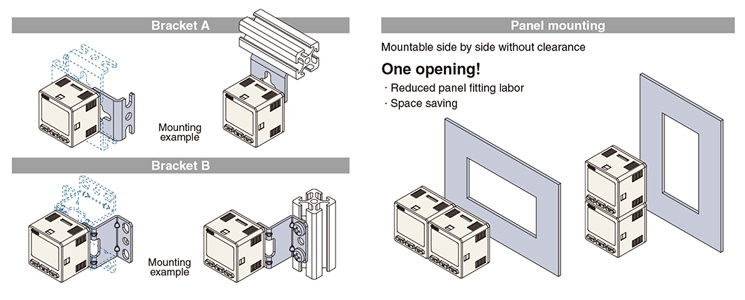

Mounting

Bracket configuration allows for mounting in four orientations.
