Air Dryers

Refrigerated Air Dryer IDF

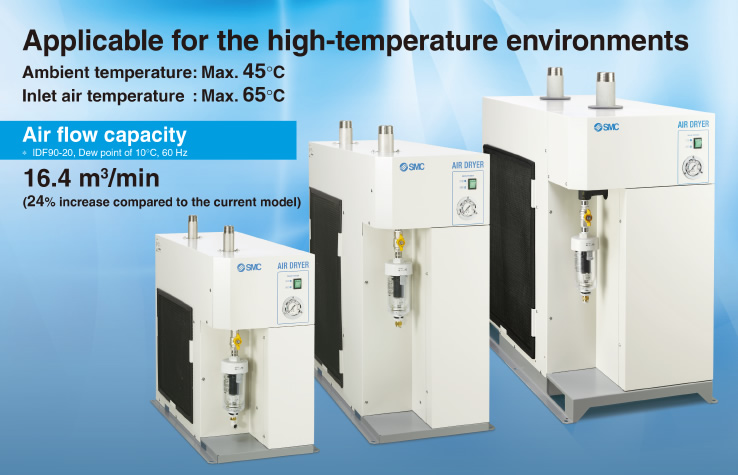

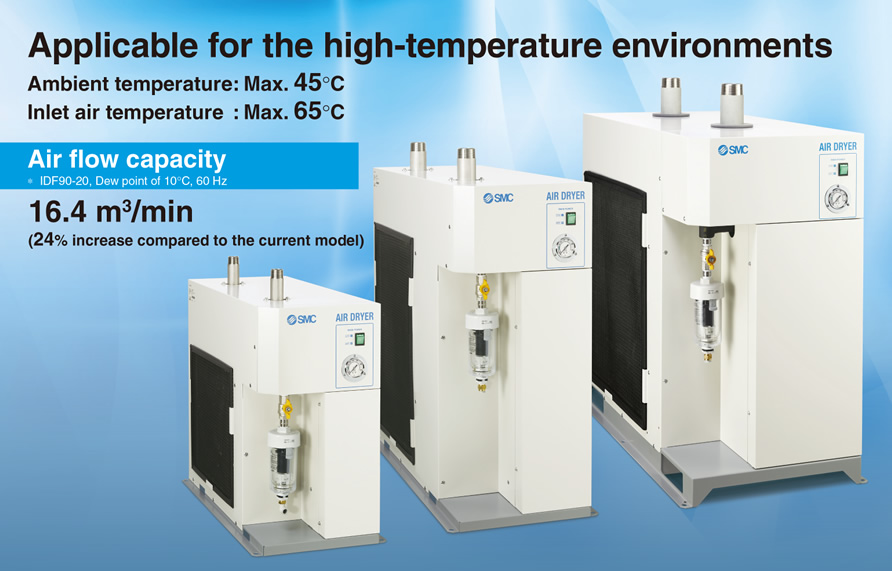

    ・Applicable for the high-temperature environments
    　Ambient temperature : Max. 45℃
    　Inlet air temperature : Max. 65℃
    ・Increased air flow capacity
Safety Instructions　Air Preparation Equipment/Precautions
Model Selection Guide/Quick Reference Guide　Green Procurement (RoHS)　Proposal for the Use of a Separate Refrigerated Air Dryer

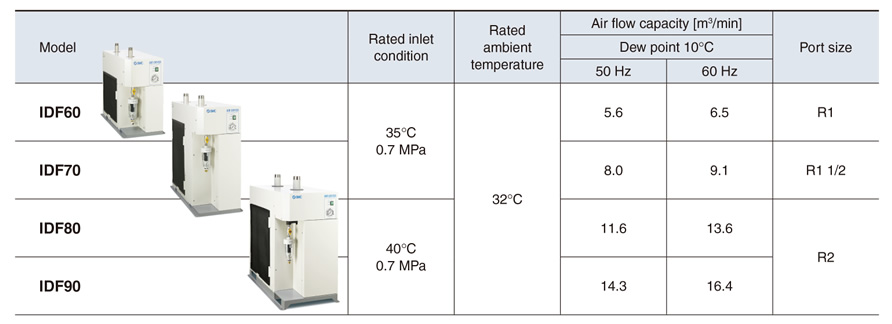

SeriesRated inlet
condition		Air flow capacity
(m3/min[ANR])
50 Hz		Air flow capacity
(m3/min[ANR])
60 Hz		RefrigerantPort sizeCompressor
output
IDF6035℃
0.7 MPa		5.66.5R410A（HFC）
GWP：2088		R1Less than 7.5kw
IDF7035℃
0.7 MPa		89.1R410A（HFC）
GWP：2088		R1 1/2Less than 7.5kw
IDF8040℃
0.7 MPa		11.613.6R410A（HFC）
GWP：2088		R2Less than 7.5kw
IDF9040℃
0.7 MPa		14.316.4R410A（HFC）
GWP：2088		R2Less than 7.5kw

Features

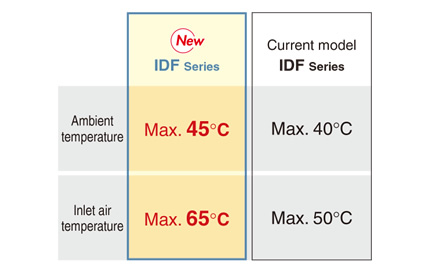

■Applicable for the hightemperature environments

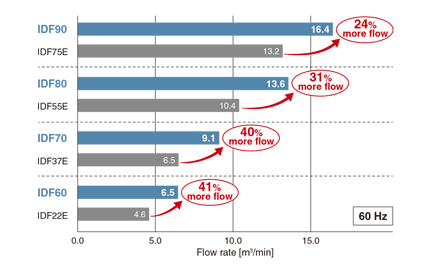

■Increased air flow capacity

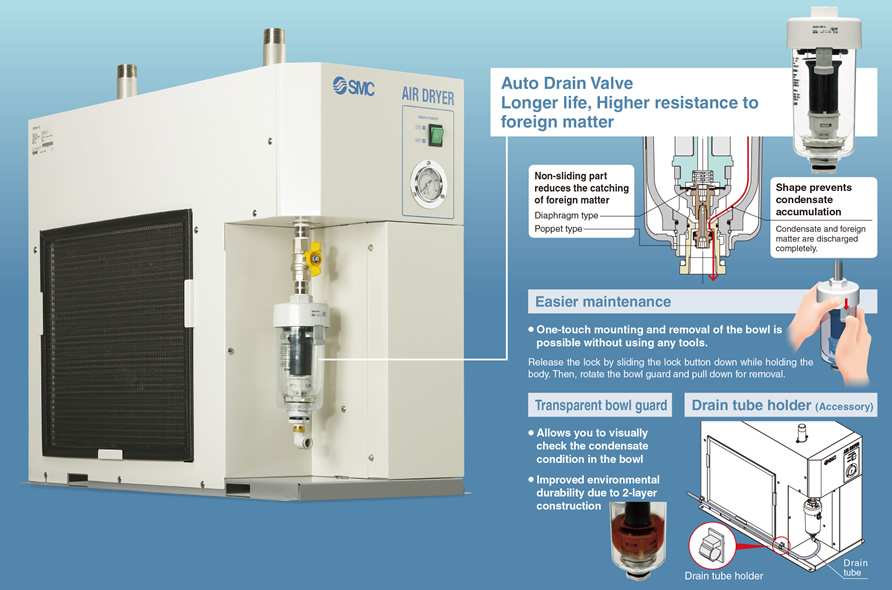

■Features ①

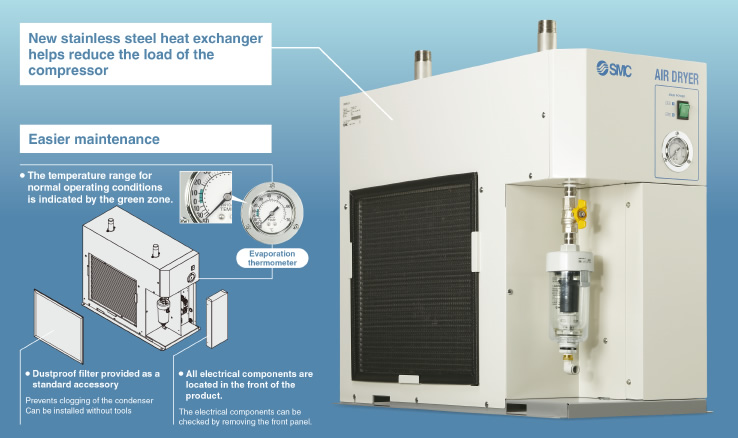

■Features ②
■Series Variations
■Options

・Cool compressed air output ［New］
・Anti-corrosive treatment for copper tube
・With Chinese labels and a Chinese operation manual ［New］
・With a heavy-duty auto drain
・With an earth leakage breaker
・ With a terminal block for operating, error, and remote operation signals
・With a timer controlled solenoid valve type auto drain

■Optional accessories

・Foundation bolt set
・Piping adapter
・Bypass piping set ［New］

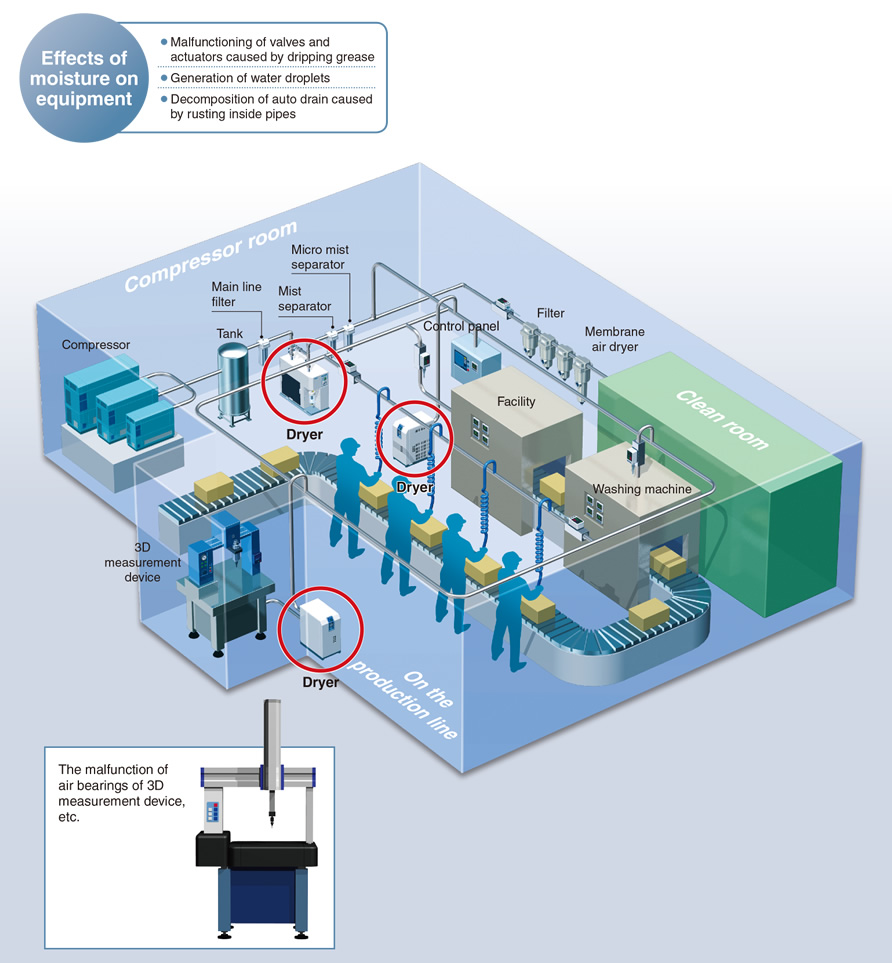

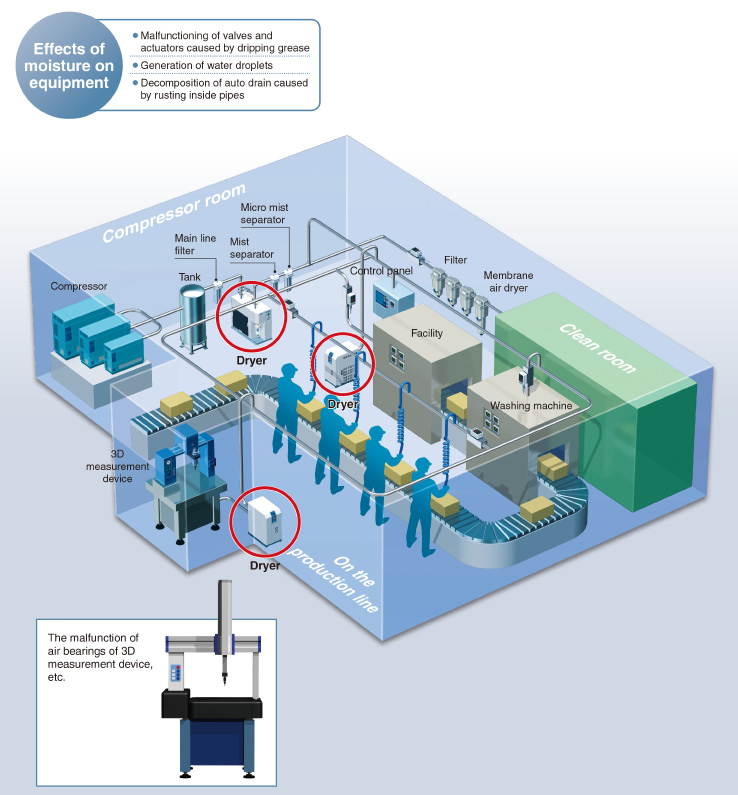

■Protect Pneumatic Equipment from Moisture!

An air dryer removes the vapor from the moist compressed air delivered by the compressor and prevents it from causing the pneumatic equipment to fail.
