Modular F.R.L.

3-Port Solenoid Valve Modular Type/Residual Pressure Release Valve  VP346E/VP546E/746E/VP946E

    ・Can be connected to F.R.L. units (AC-D series)
    　Allows for space saving and reduced piping labor.
    ・Flow rate characteristics C [dm3/(s·bar)]
    　VP346E：4.2
    　VP546E：7.5
    　VP746E：12.6
    ・Effective area mm2
    　VP946E：234
    ・A model with a soft start-up function is also available.
    ・Power consumption: 0.35 W (Without light)
    ・Features a check valve built into the pilot flow path
    　(Supports pilot pressure drops caused by pressure fluctuations on the inlet side)
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Selection/Technical Data
Green Procurement (RoHS)

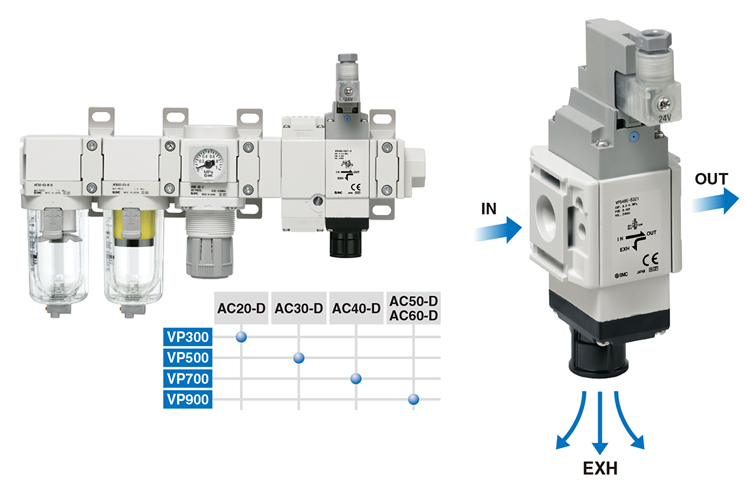

SeriesApplicable combinations
VP346EAC20-D
VP546EAC30-D
VP746EAC40-D
VP946EAC50-D, AC60-D

Features

Can be connected to F.R.L. units (AC-D series)

Allows for space saving and reduced piping labor.


Flow rate characteristics C［dm3（/ s·bar）］

VP346E：4.2　VP546E：7.5　VP746E：12.6　VP946E：234

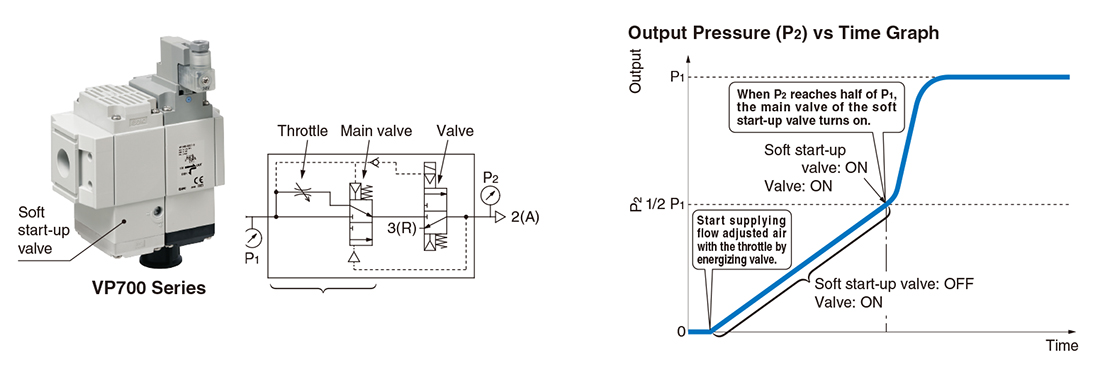

A model with a soft start-up function is also available.

  • Power consumption: 0.35 W (Without light)

  • Features a check valve built into the pilot flow path

    (Supports pilot pressure drops caused by pressure fluctuations on the inlet side)
