Mechanically Jointed Rodless Cylinder MY1
![](https://www.smcworld.com/upfiles/etc/series/en-jp/img1-MY1.jpg)
-

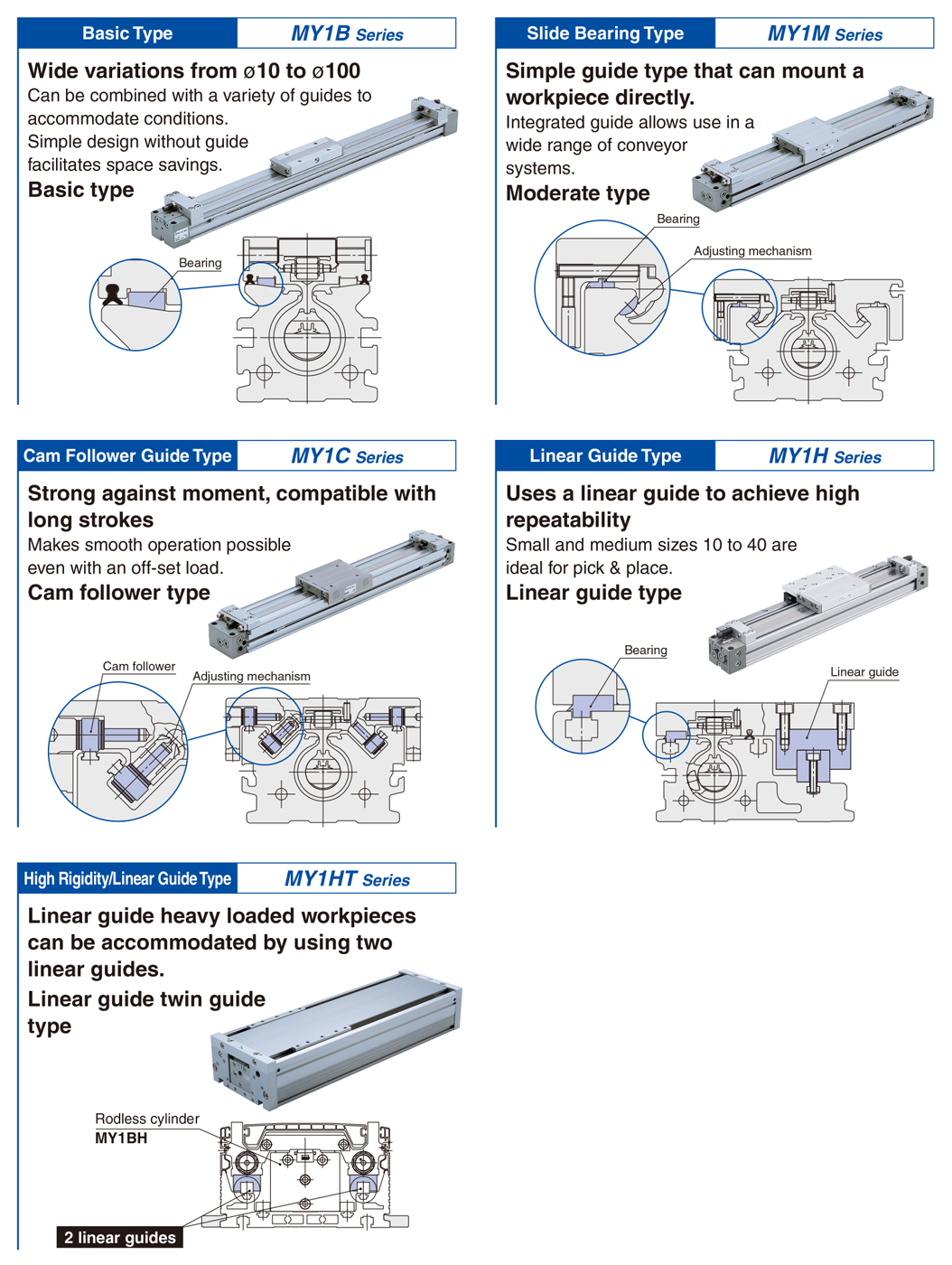

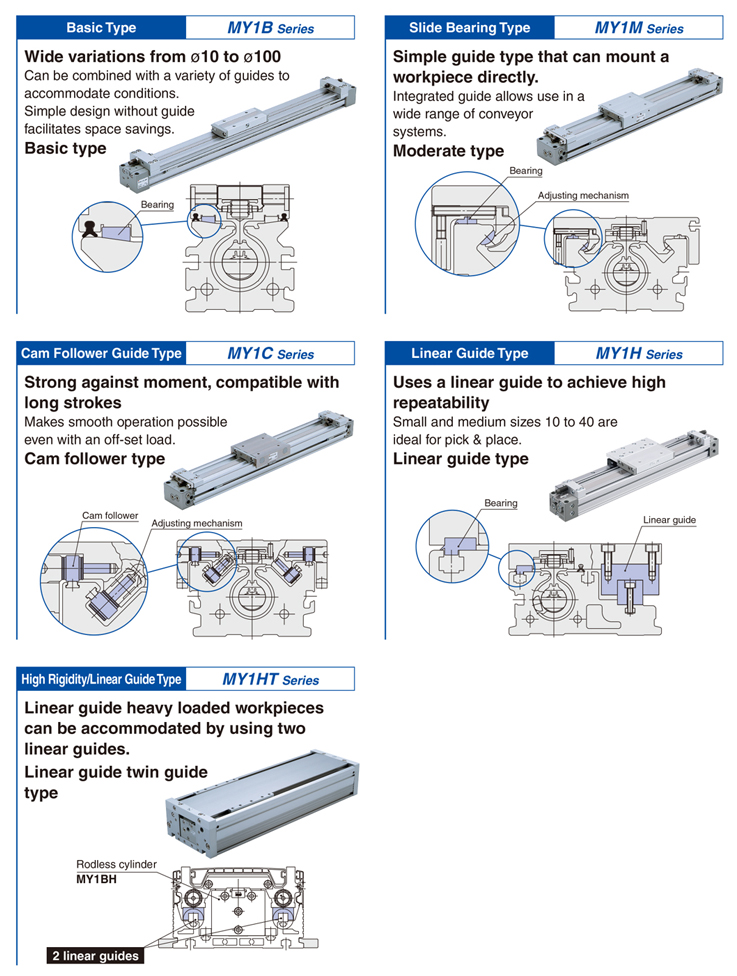

・With 5 standardized guide types
・A variety of applications are available based on the load mass and required accuracy.
Safety Instructions Actuators/Precautions Auto Switches/Precautions
Model Selection/Technical Data Quick Selection Tables
Made to Order Common Specifications Green Procurement (RoHS)
Model Selection/Technical Data Quick Selection Tables
Made to Order Common Specifications Green Procurement (RoHS)

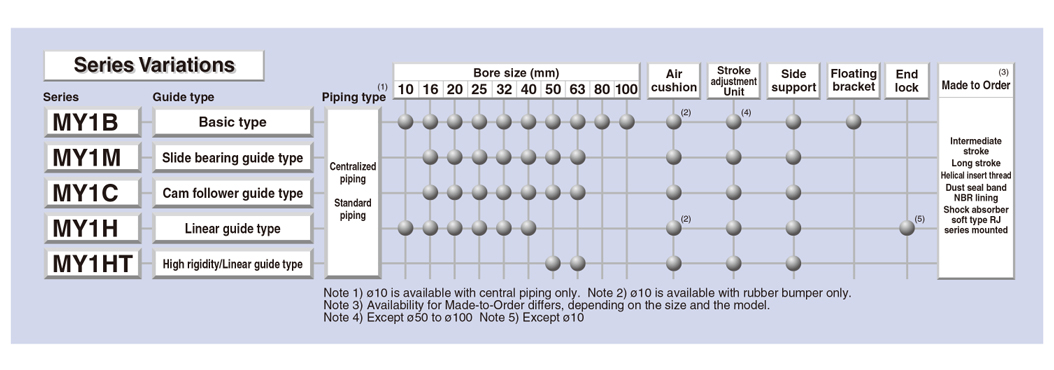

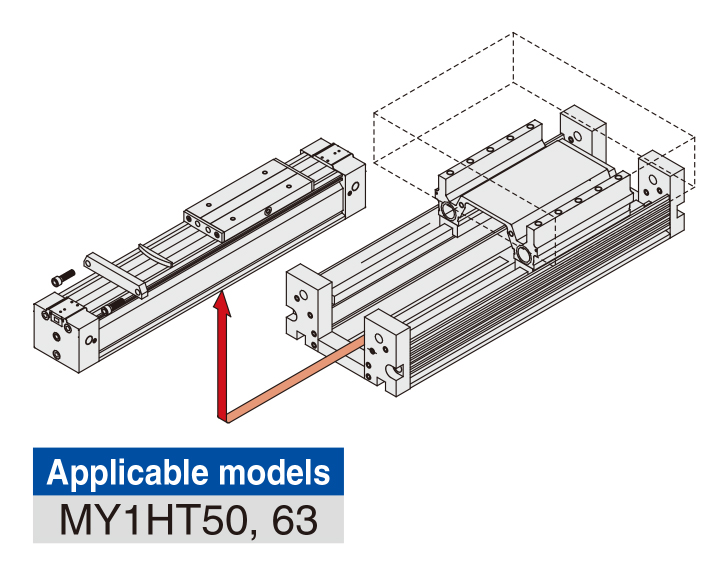

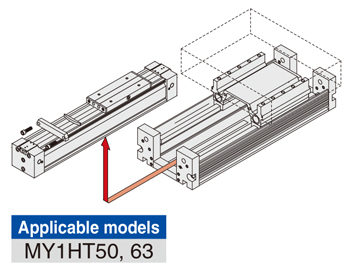

Type | Series | Action | Bore size (mm) |
---|---|---|---|
Basic | MY1B | Double acting | 10,16,20,25,32,40,50,63,80,100 |
Slide bearing | MY1M | Double acting | 16,20,25,32,40,50,63 |
Cam follower guide | MY1C | Double acting | 16,20,25,32,40,50,63 |
Linear guide | MY1H | Double acting | 10,16,20,25,32,40 |
Linear guide | MY1HT | Double acting | 50,63 |
Features
■Minimal leakage seal construction

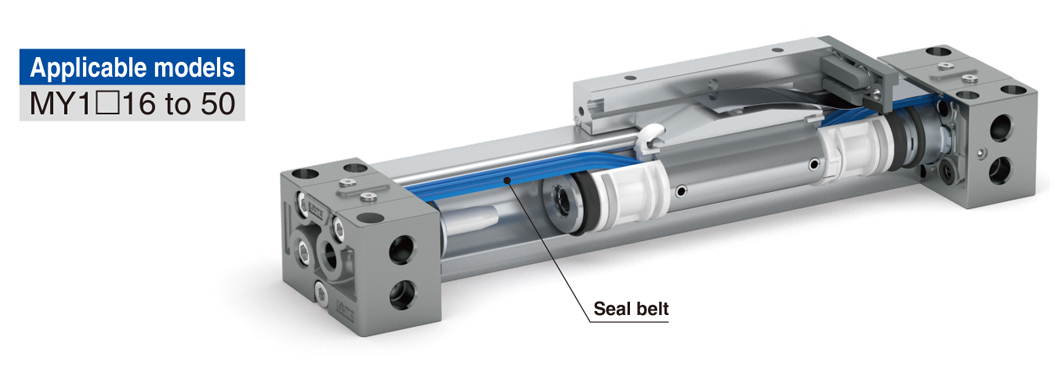

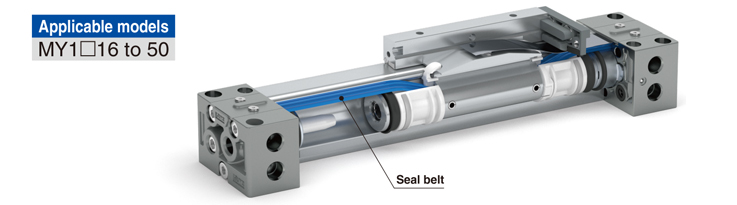

The flexible material of the seal belt allows for improved adherence to the cylinder tube, resulting in a reduced leakage amount.
(50% reduction compared with the current product)
![](/assets/newproducts/en-jp/my1/images/my1_02.jpg)
■Dust seal band with improved holding force

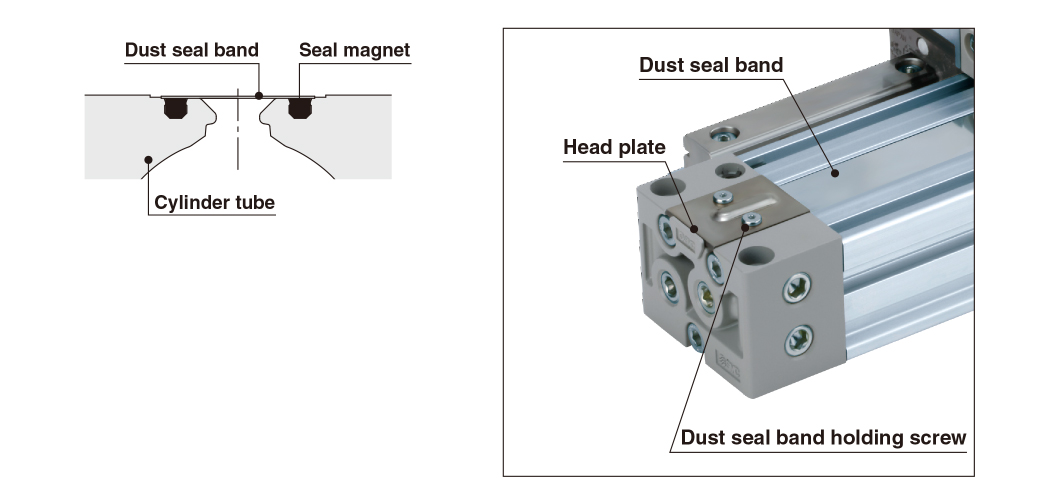

The seal magnet on the cylinder tube adsorbs the dust seal band with magnetic force, resulting in improved holding force.
![](/assets/newproducts/en-jp/my1/images/my1_03.jpg)

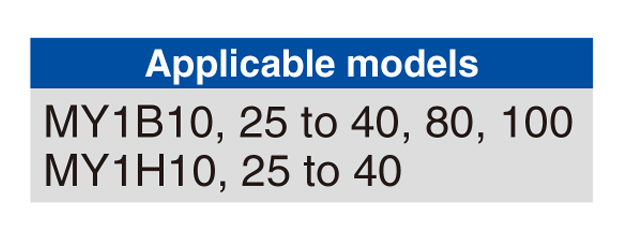

The dust seal band can be easily removed for replacement by simply loosening the two holding screws.
Easier maintenance
![](/assets/newproducts/en-jp/my1/images/my1_04.jpg)

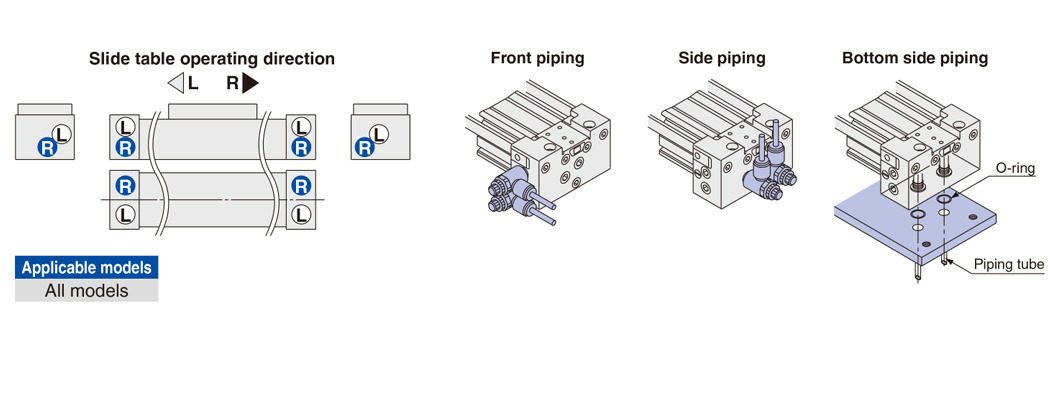

■Allows for piping to be connected according to installation conditions. Centralized piping type for increased piping freedom
![](/assets/newproducts/en-jp/my1/images/my1_05.jpg)

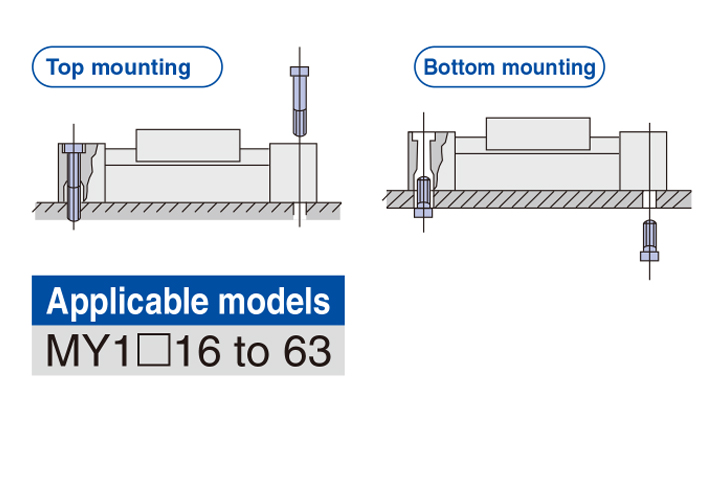

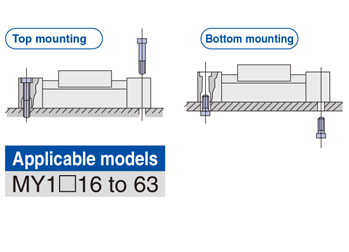

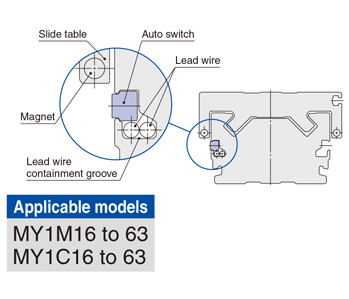

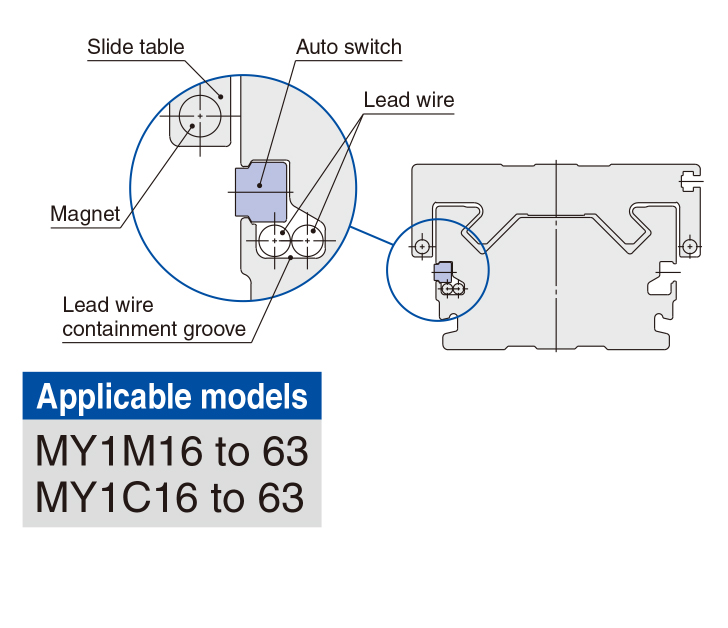

■MY1M and MY1C compatibility guaranteed

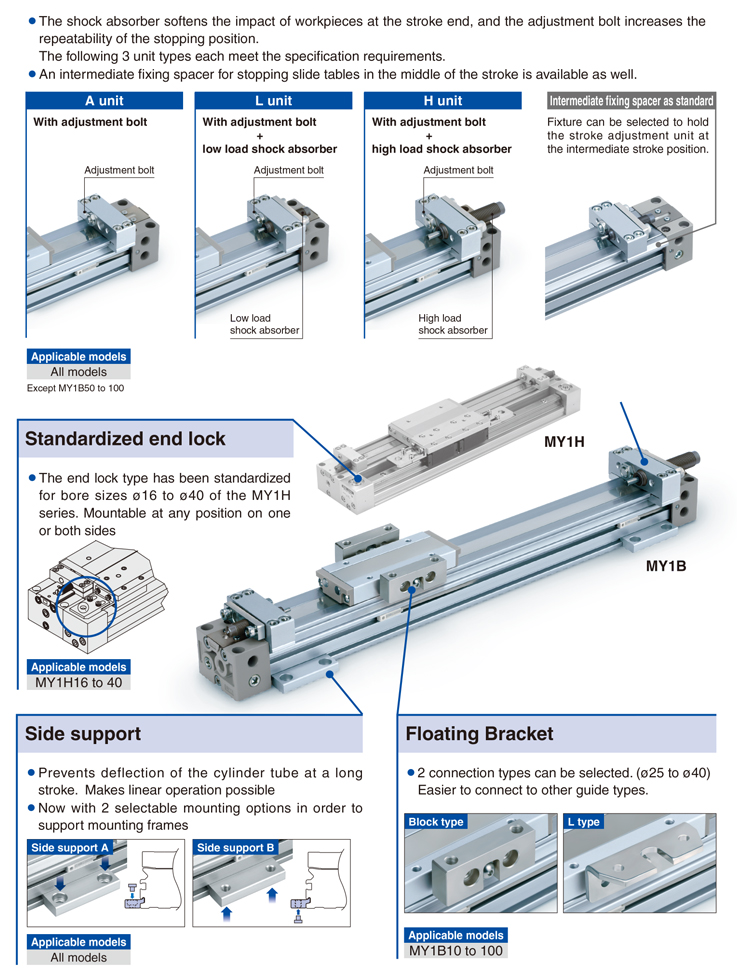

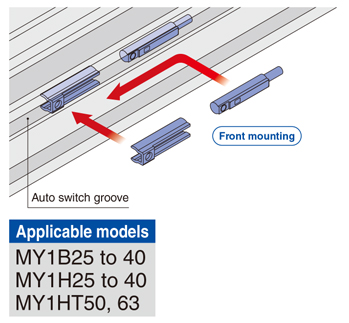

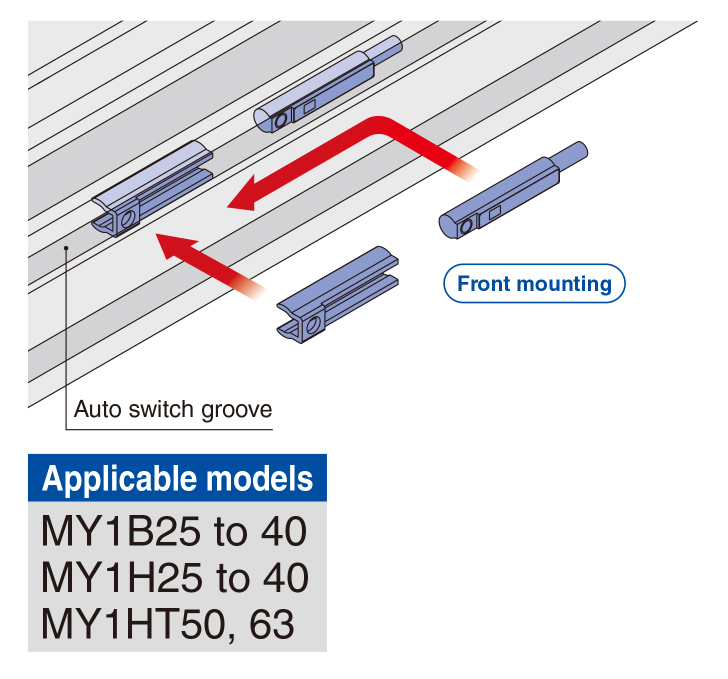

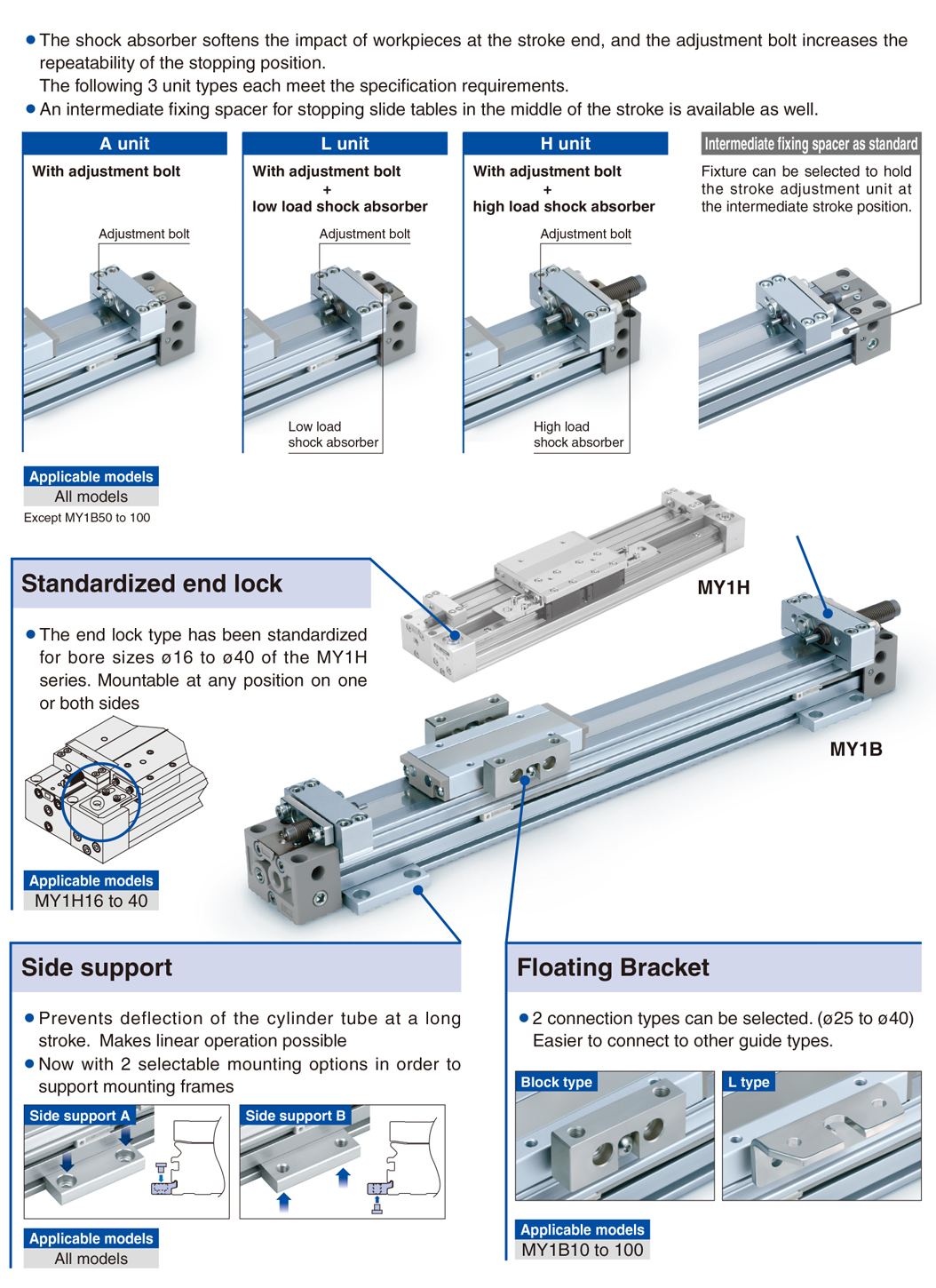

With the same outer dimensions and workpiece mounting dimensions, both series are compatible with stroke adjustment units, side supports, auto switches, etc.
![](/assets/newproducts/en-jp/my1/images/my1_06.jpg)
