Thermo-Chillers (Circulating Fluid Temperature Controllers) Dual Channel Thermo chiller for Lasers

[Low GWP Refrigerant Chiller] Thermo-chiller/Dual Channel Thermo-chiller for Lasers HRLF

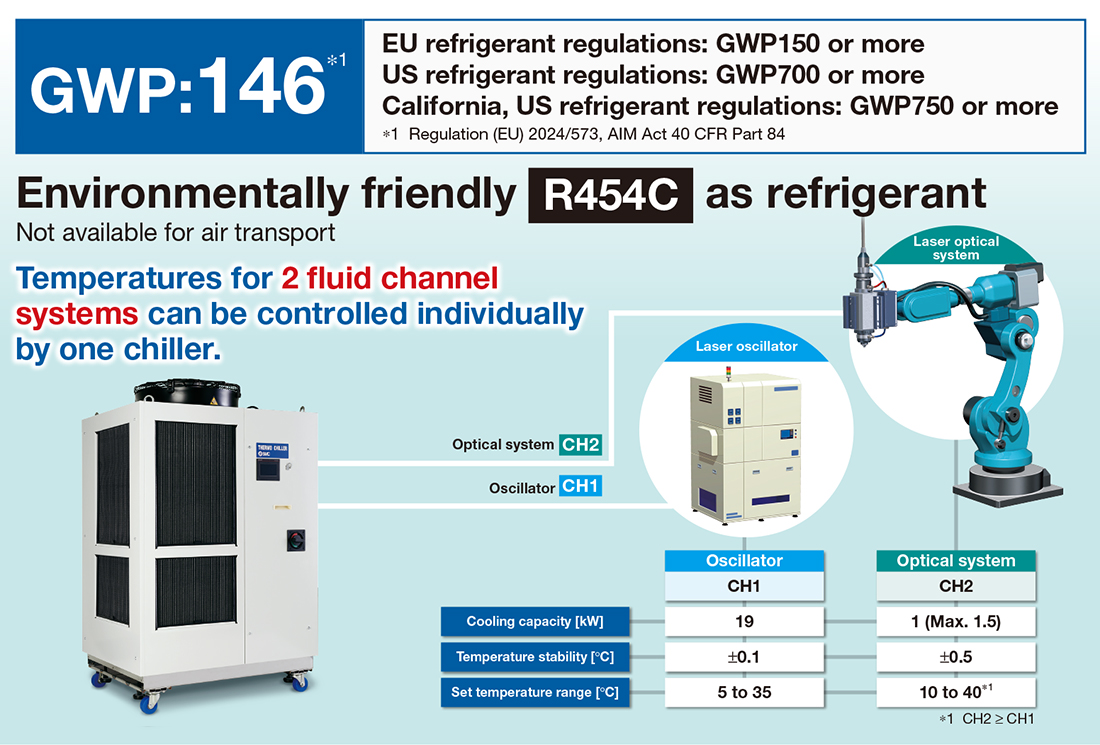

    ・Low GWP refrigerant chiller
    　GWP: 146∗　∗ Regulation (EU) 2024/573, AIM Act 40 CFR Part 84
    　　EU refrigerant regulations: GWP150 or more
    　　US refrigerant regulations: GWP700 or more
    　　California, US refrigerant regulations: GWP750 or more
    ・Environmentally friendly R454C as refrigerant (Not available for air
    　transport)
    ・Temperatures for 2 fluid channel systems can be controlled individually
    　by one chiller.

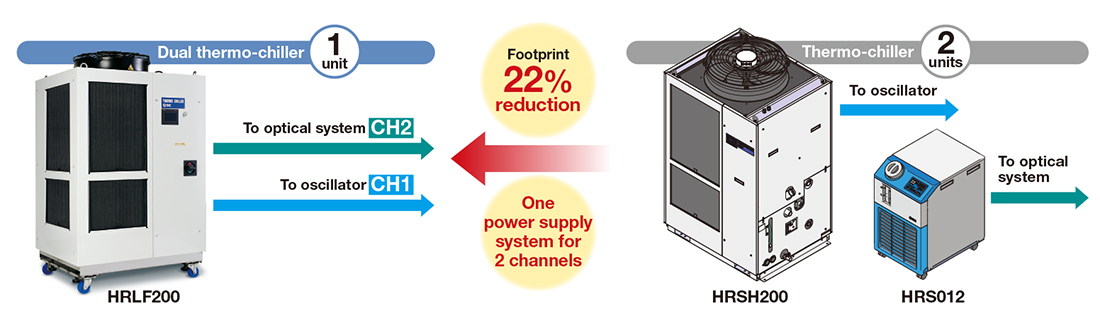

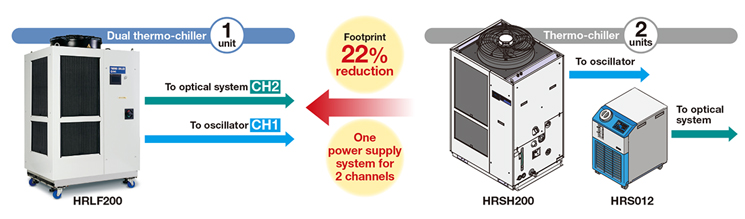

    ・Space saving, Reduced wiring

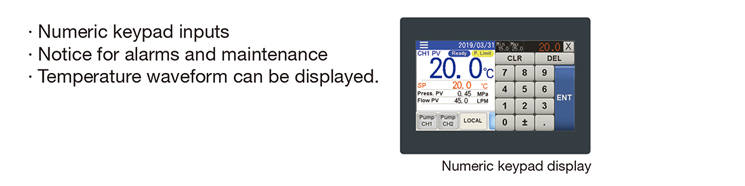

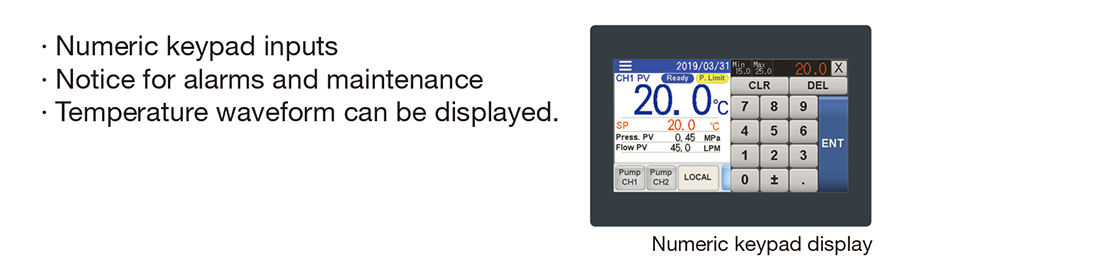

    ・Touch panel
    　Numeric keypad inputs
    　Notice for alarms and maintenance
    　Temperature waveform can be displayed.
Safety Instructions　Temperature Control Equipment/Precautions　Features/Series Variations
Technical Data　Can be used in a wide range of applications!
Temperature Control Equipment Warranty　Green Procurement (RoHS)
SeriesSet temperature
range		Cooling
capacity		Temperature
stability		Cooling methodCirculating fluid
HRLF200-A-40CH1:5 to 35℃
CH2:10 to 40℃		CH1: 19 kW
CH2: 1.0 kW (Max. 3.0 kW)		CH1: ±0.1℃
CH2: ±0.5℃		Air-cooled refrigerationTap water,
Deionized water
HRLF200-W-40CH1:5 to 35℃
CH2:10 to 40℃		CH1: 21.5 kW
CH2: 1.0 kW (Max. 3.0 kW)		CH1: ±0.1℃
CH2: ±0.5℃		Water-cooled refrigerationTap water,
Deionized water

Features

Low GWP Refrigerant Chiller

Temperatures for 2 fluid channel systems can be controlled individually by one chiller.

Space saving, Reduced wiring

Touch panel
