Related Equipment for Vacuum Systems

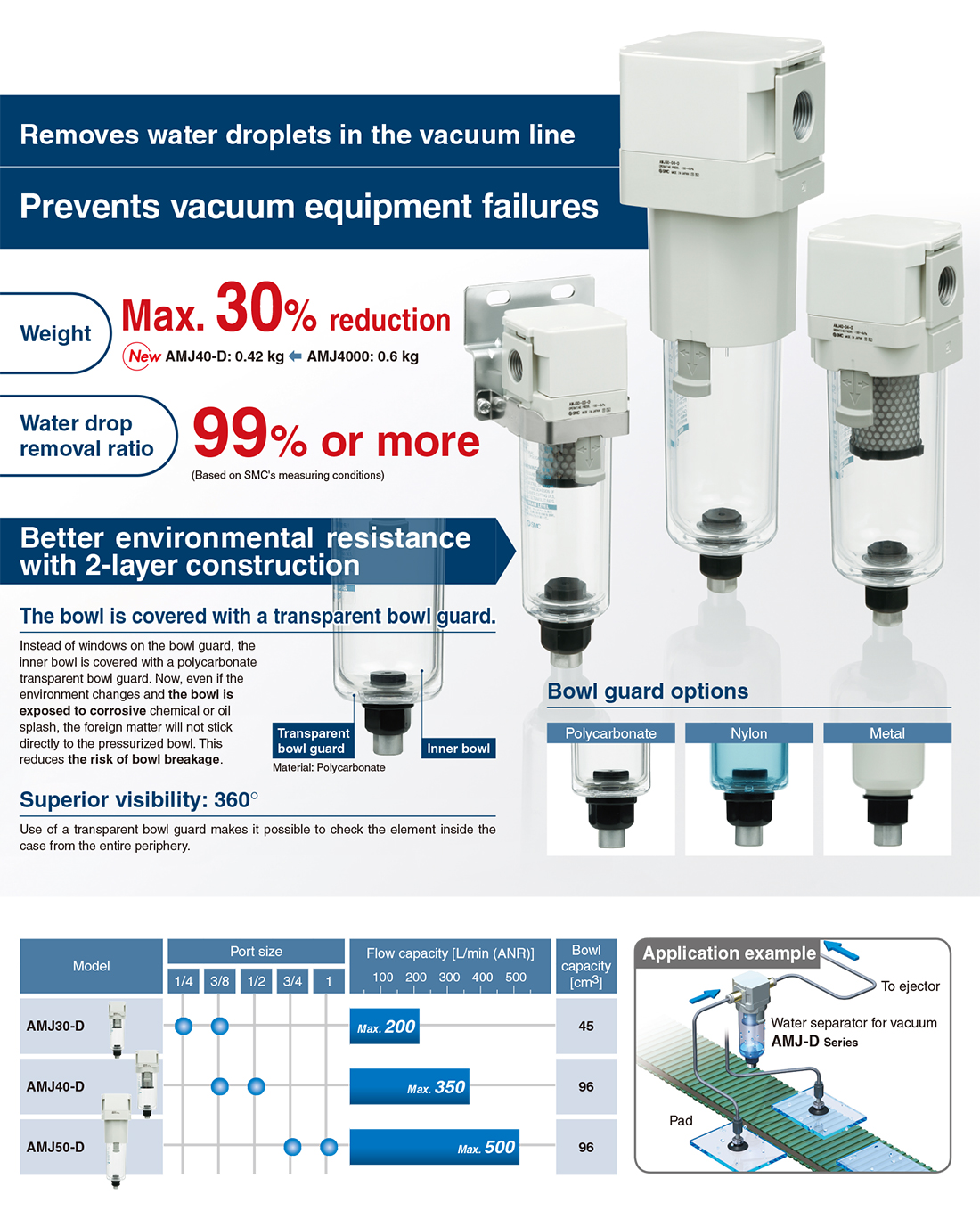

Water Separator for Vacuum AMJ-D

    ・Removes water droplets in the vacuum line
    　Prevents vacuum equipment failures
    ・Weight: Max. 30% reduction (AMJ40-D: 0.42 kg b AMJ4000: 0.6 kg)
    ・Water drop removal ratio: 99% or more
    ・Better environmental resistance with 2-layer construction
    　The bowl is covered with a transparent bowl guard.
    　Superior visibility: 360°
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
Safety Instructions　Vacuum Equipment/Precautions　Series Variations/Model Selection
Green Procurement (RoHS)
SeriesPort sizeMax. flow capacity
[L/min (ANR)]		Operating pressure rangeWater drop removal ratio
AMJ-D1/4，3/8，1/2，3/4，1200，350，500−100〜0kPa99%

Features

Removes water droplets in the vacuum line
Prevents vacuum equipment failures
