Electronic Pressure Switches/Sensors (Remote Type)

3-Screen Display Sensor Monitor PSE300AC

    ・It is possible to change the settings while checking the measured value.
    ・Visualization of settings
    ・NPN/PNP switch function
    ・Input range selection (for pressure/flow rate)
    ・Simple 3-step setting
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • 3-Screen Display Sensor Monitor PSE300AC
    Manual
    Series View search result
    PSE300ACView search result
  • 3-Screen Display Sensor Monitor PSE300AC
    DoC
    Series View search result
    PSE300ACView search result
Safety Instructions　Pressure Switches/Flow Switches/Precautions
Glossary of Terms/Technical Information　Green Procurement (RoHS)
SeriesSet pressure rangeApplicable pressure sensors
PSE300AC−0.2 to 2.1 kPa
10 to −105 kPa
−105 to 105 kPa
−10 to 105 kPa
−50 to 525 kPa
−0.105 to 1.05 MPa
−0.105 to 2.1 MPa
−0.1 to 5.25 MPa
−0.1 to 10.5 MPa		PSE550
PSE531/PSE541/PSE561
PSE533/PSE543/PSE563/PSE573
PSE532
PSE564/PSE574
PSE530/PSE540/PSE560/PSE570
PSE575
PSE576
PSE577

Features

■It is possible to change the settings while checking the measured value.

Visualization of Settings

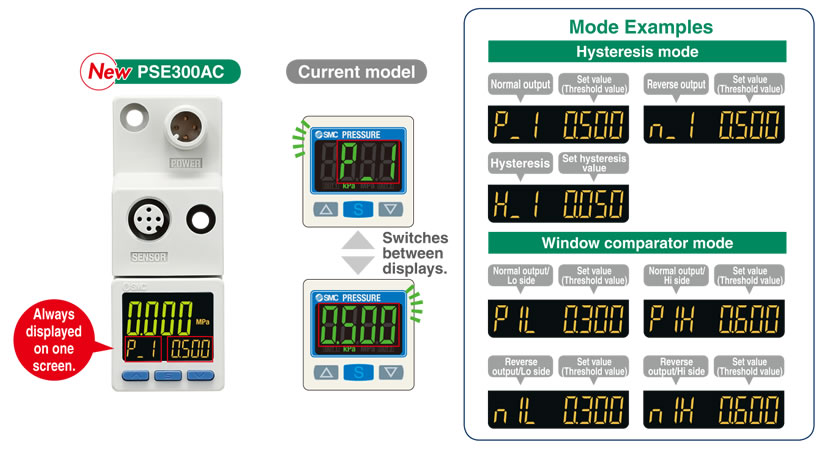

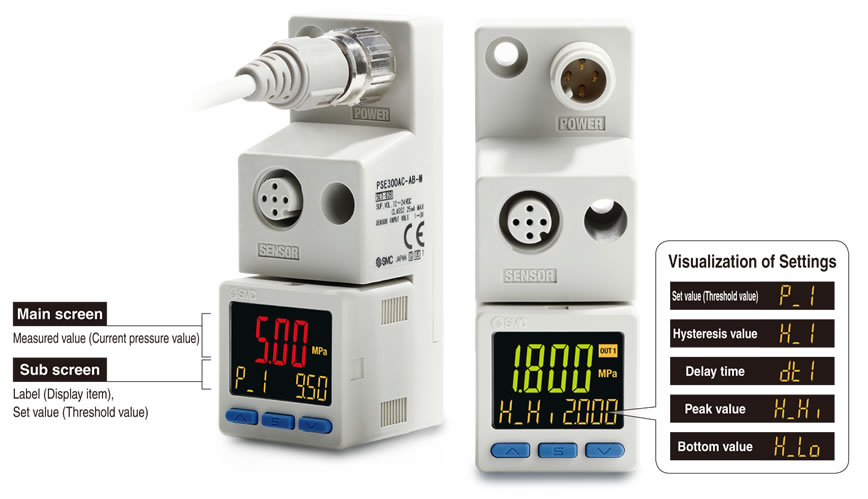

The sub screen (label) shows the item to be set.

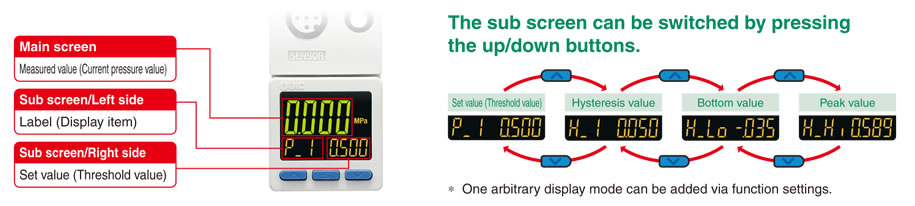

Easy Screen Switching

It is possible to change the settings while checking the measured value.

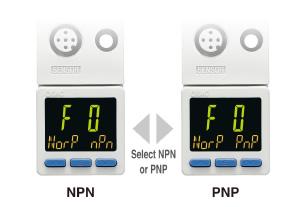

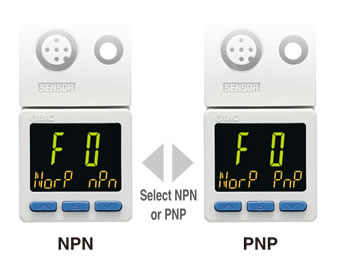

NPN/PNP Switch Function

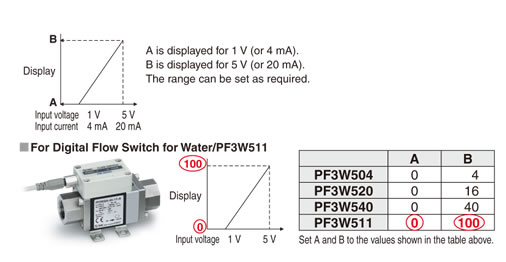

Input Range Selection (for Pressure/Flow rate)

The sensor input range can be set to the required value and displayed. (Voltage input: 1 to 5 V/Current input: 4 to 20 mA) Pressure switch/Flow switch can be displayed.

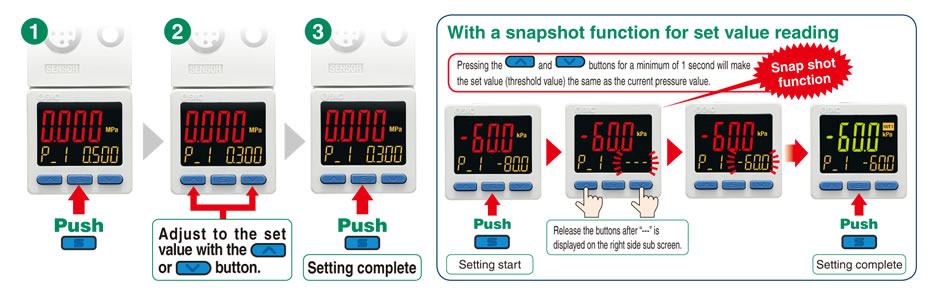

Simple 3-Step Setting

When the S button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the S button is pressed and the hysteresis (H_1) is being displayed, the hysteresis value can be set.

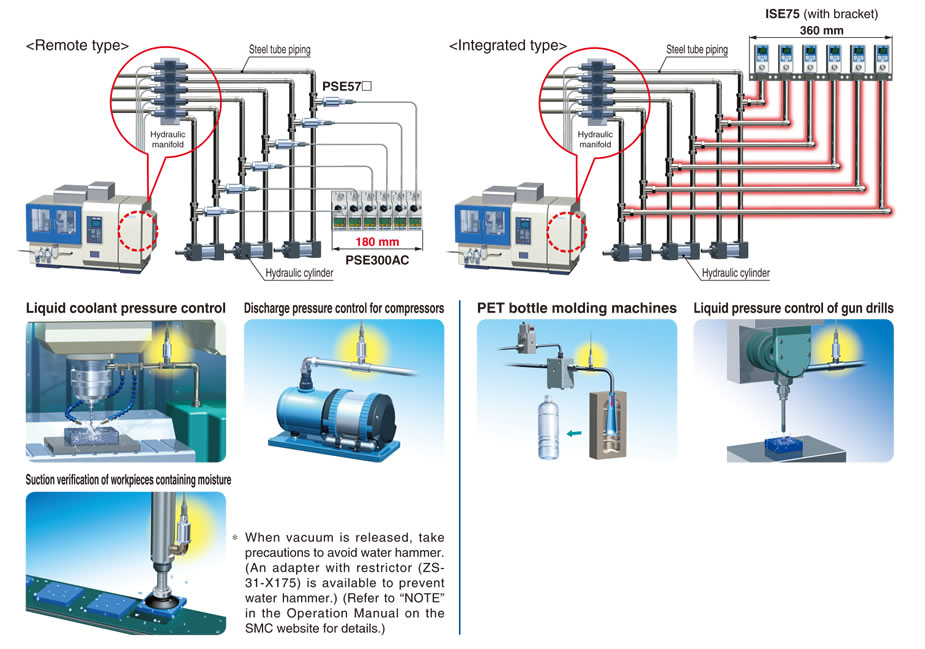

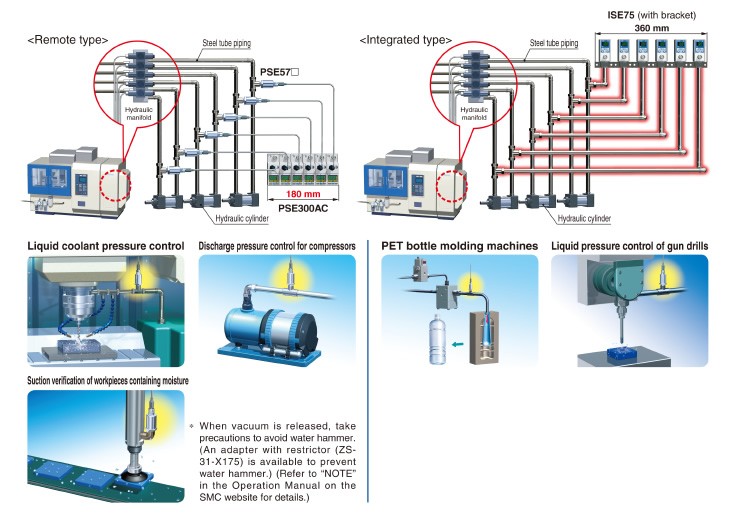

■Reduced Work-hours & Required Installation Space for Piping

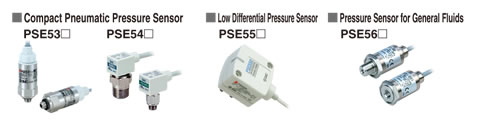

■Pressure Sensor Variations

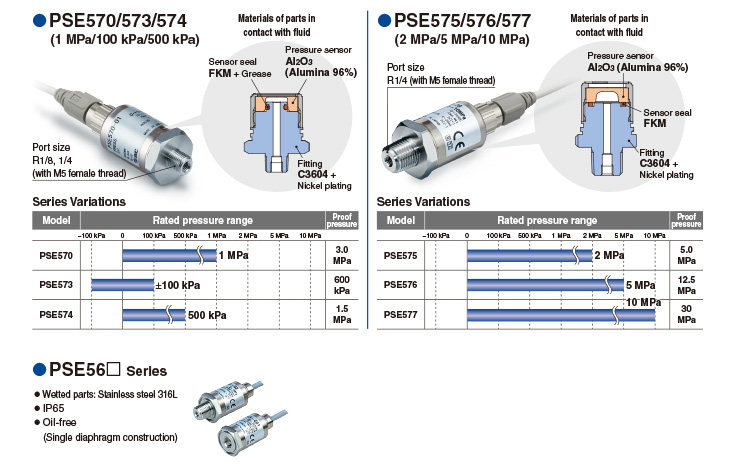

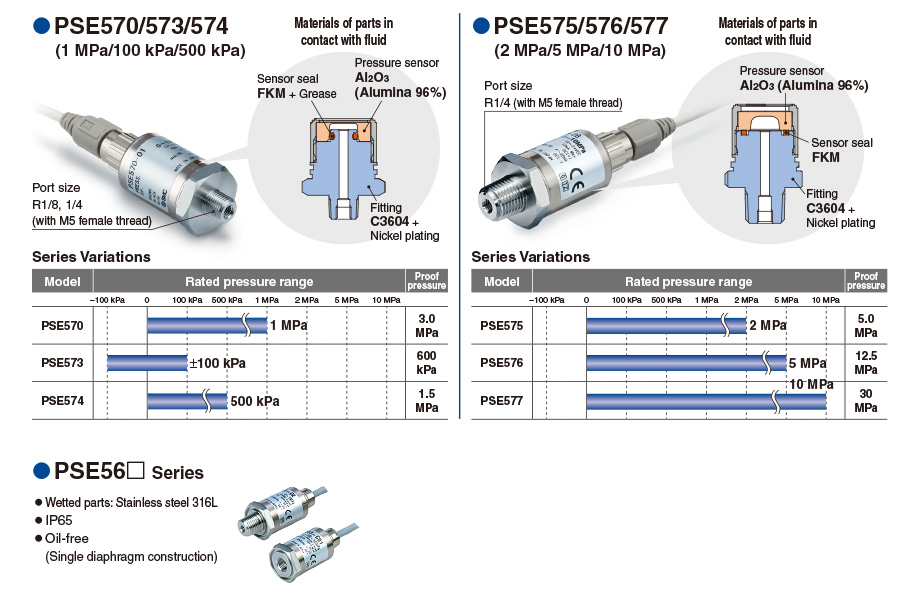

For General Fluids

Applicable Pressure Sensors
