Electronic Pressure Switches/Sensors (Remote Type)

3-Screen Display Sensor Monitor PSE300A

    ・Compatible with 5 types of pressure sensor
    　Applicable sensor: PSE53m, PSE54m, PSE550, PSE57m, PSE56m
    ・It is possible to change the settings while checking the measured value.
    ・NPN/PNP switch function
    ・Input range selection (for pressure/flow rate)
    ・Simple 3-step setting
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • 3-Screen Display Sensor Monitor PSE300A
    Manual
    Series View search result
    PSE300AView search result
  • 3-Screen Display Sensor Monitor PSE300A
    DoC
    Series View search result
    PSE300AView search result
Safety Instructions　Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example 　Glossary of Terms/Technical Information
Green Procurement (RoHS)
SeriesSet pressure range
PSE300A−0.2 to 2.1 kPa
10 to −105 kPa
−105 to 105 kPa
−10 to 105 kPa
−50 to 525 kPa
−0.105 to 1.05 MPa
−0.105 to 2.1 MPa
−0.25 to 5.25 MPa
−0.5 to 10.5 MPa

Features

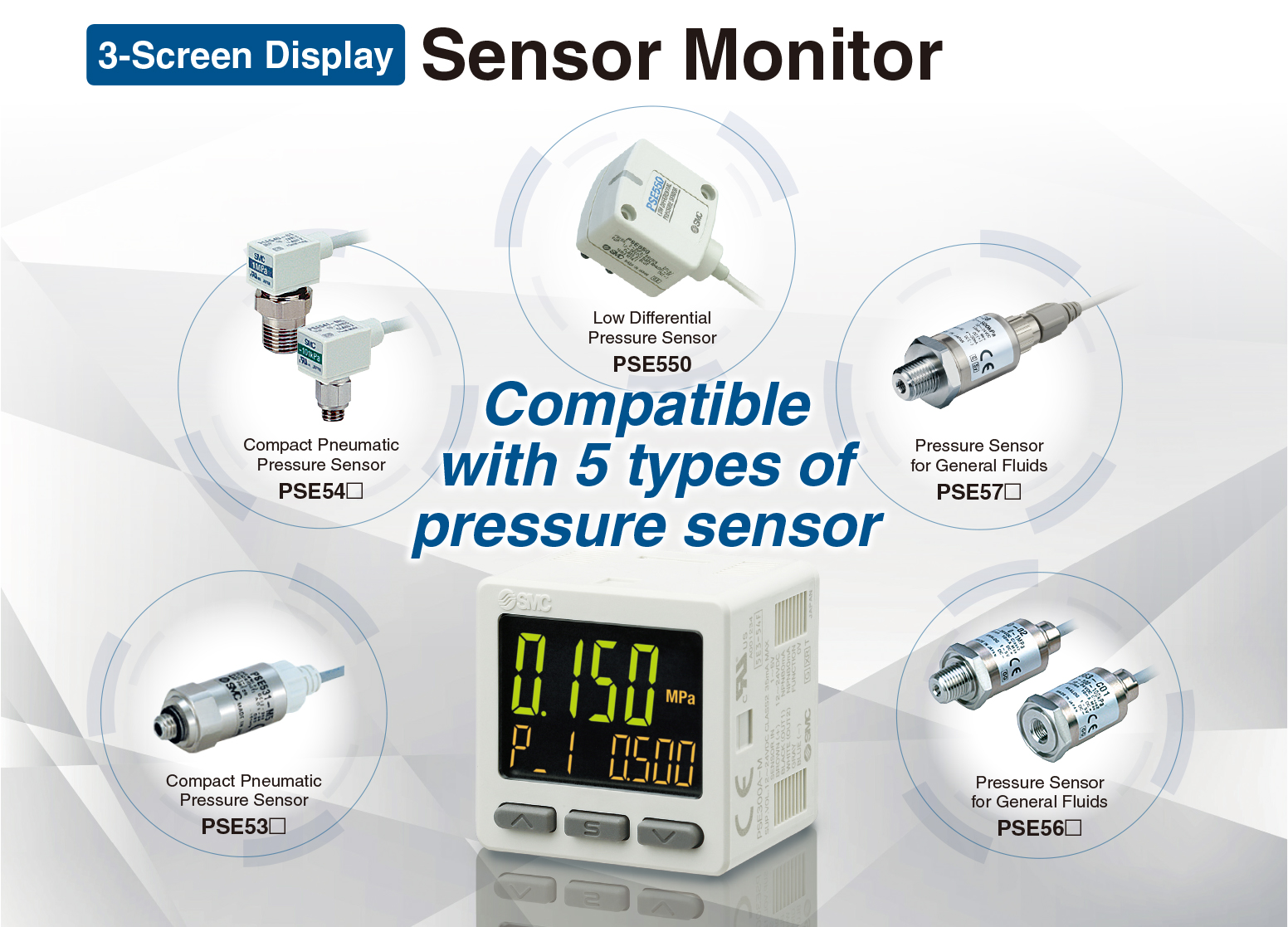

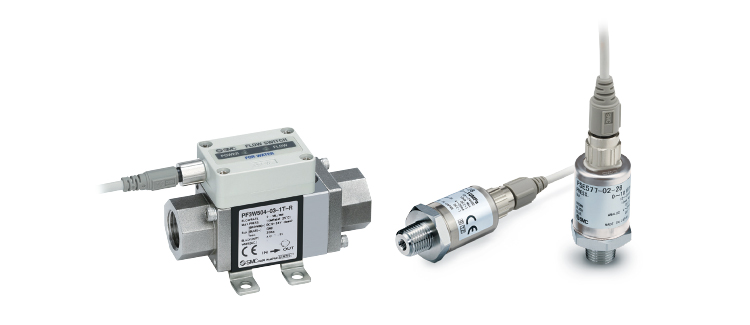

Compatible with 5 types of pressure sensor

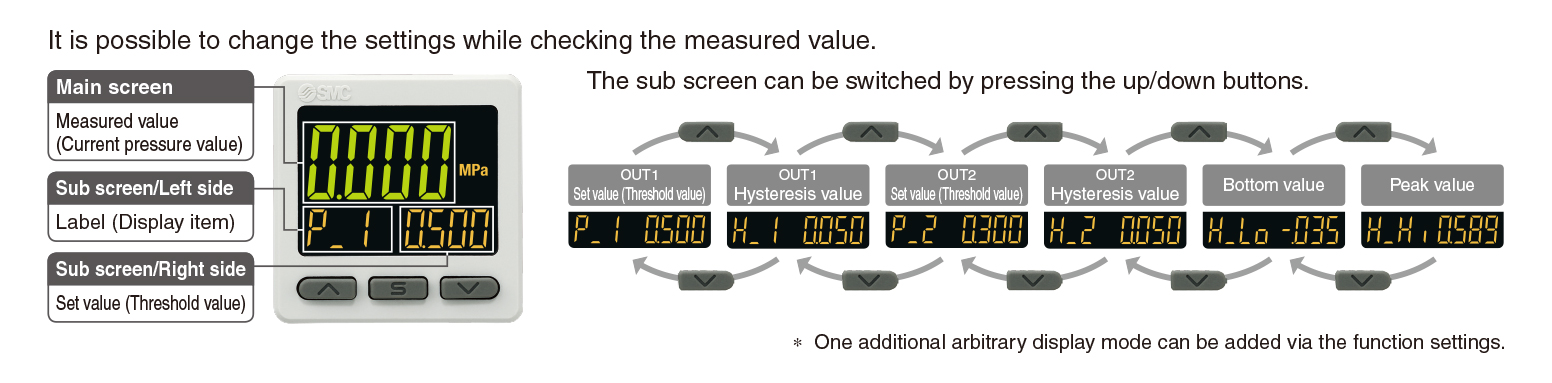

  • It is possible to change the settings while checking the measured value.

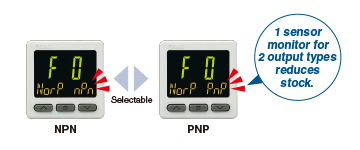

  • NPN/PNP Switch Function

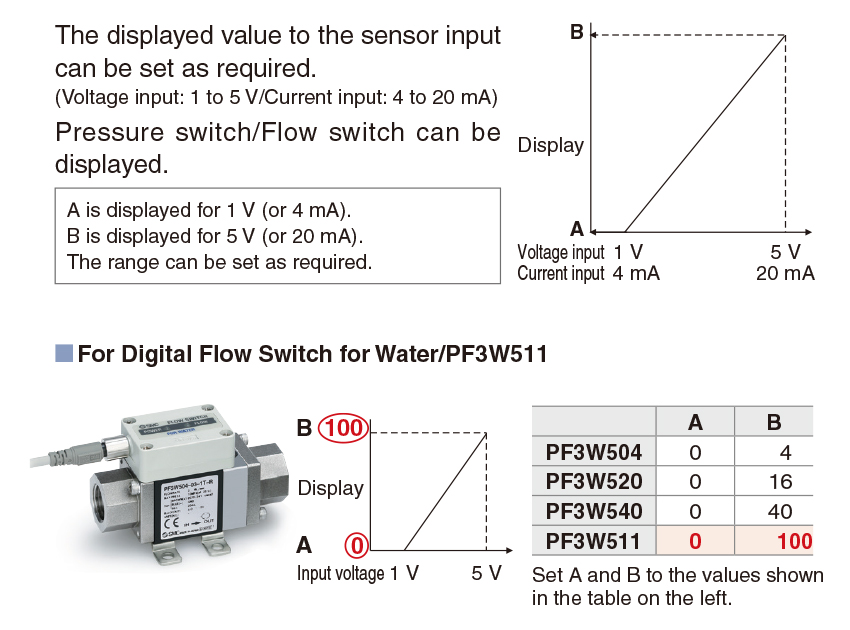

    Input Range Selection
    (for Pressure/Flow rate)

    ・Set the displayed value according to the sensor input.
    (Voltage input: 1 to 5 V/Current input: 4 to 20 mA)
    ・Value is displayed regardless of the pressure switch or flow switch.

Visualization of Settings

The sub screen (label) shows the item to be set.

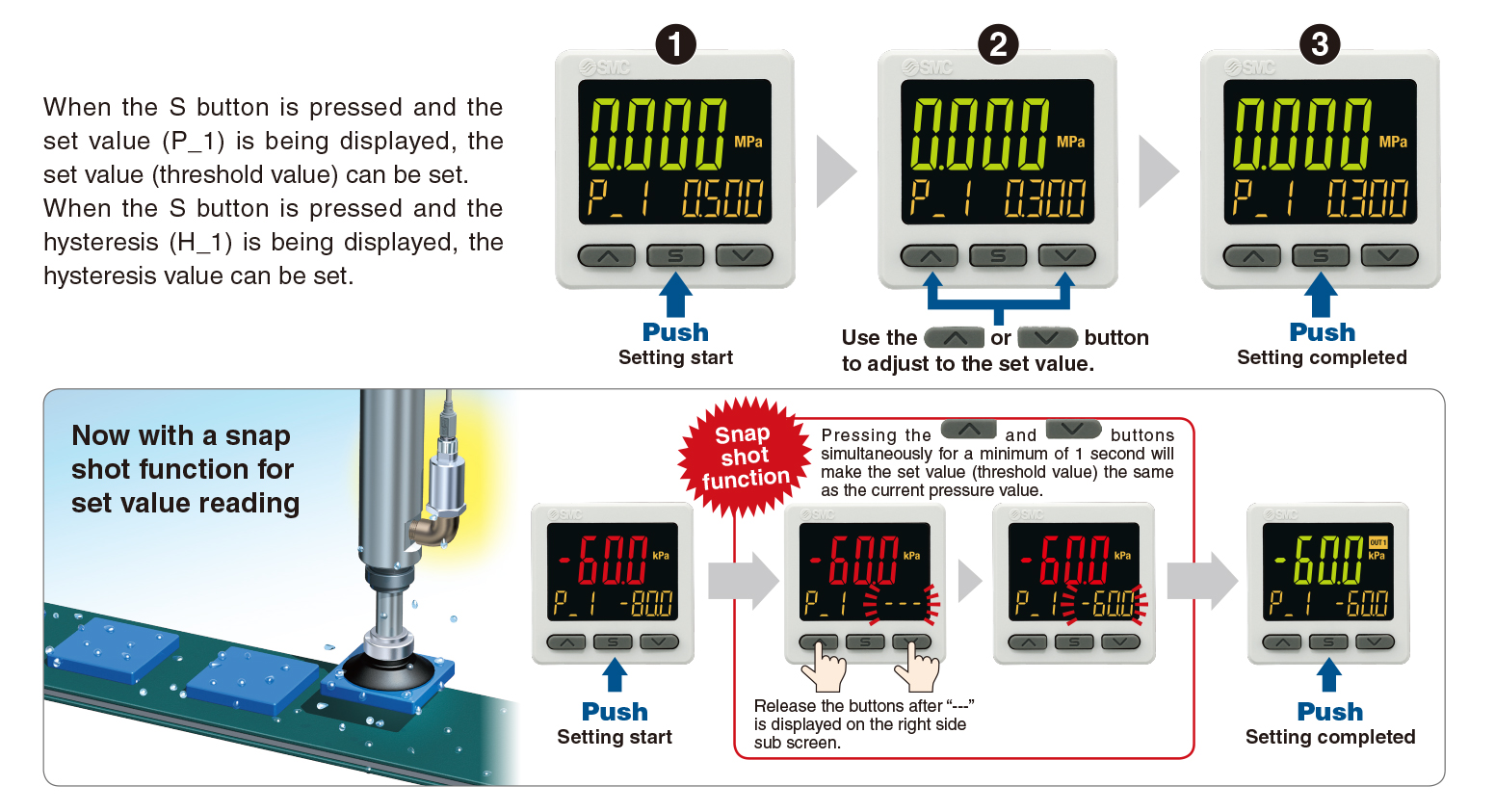

Simple 3-Step Setting

Easy Screen Switching

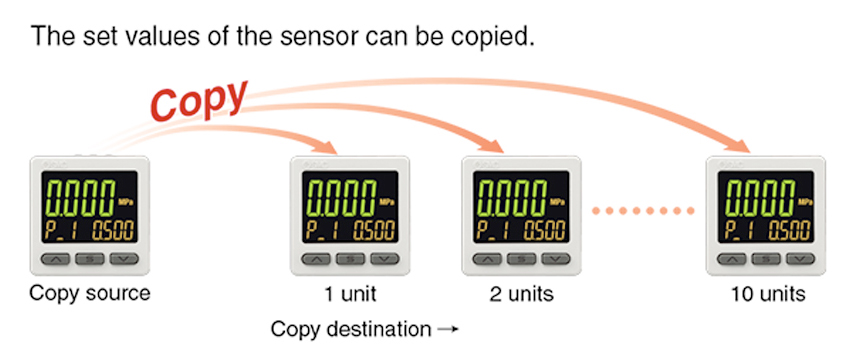

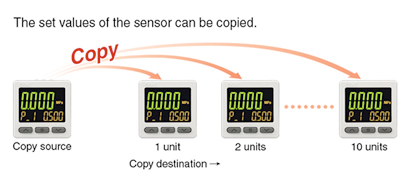

  • Copy Function

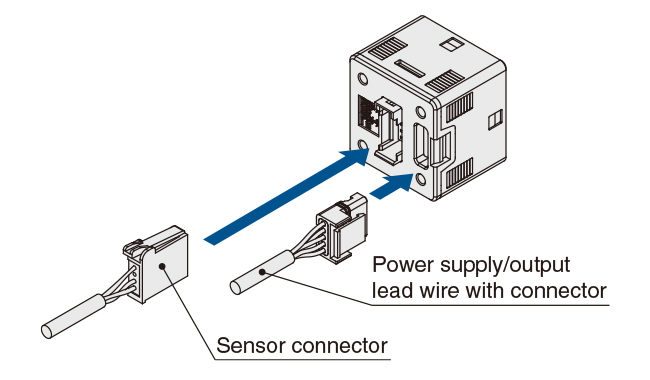

  • Easy Fitting of Connector

  • Input Range Selection
    (for Pressure/Flow rate)

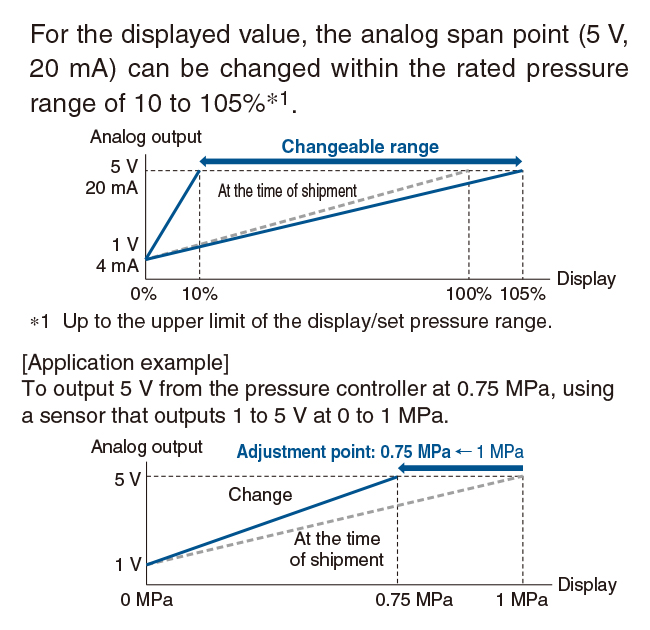

  • Analog Free Span Function

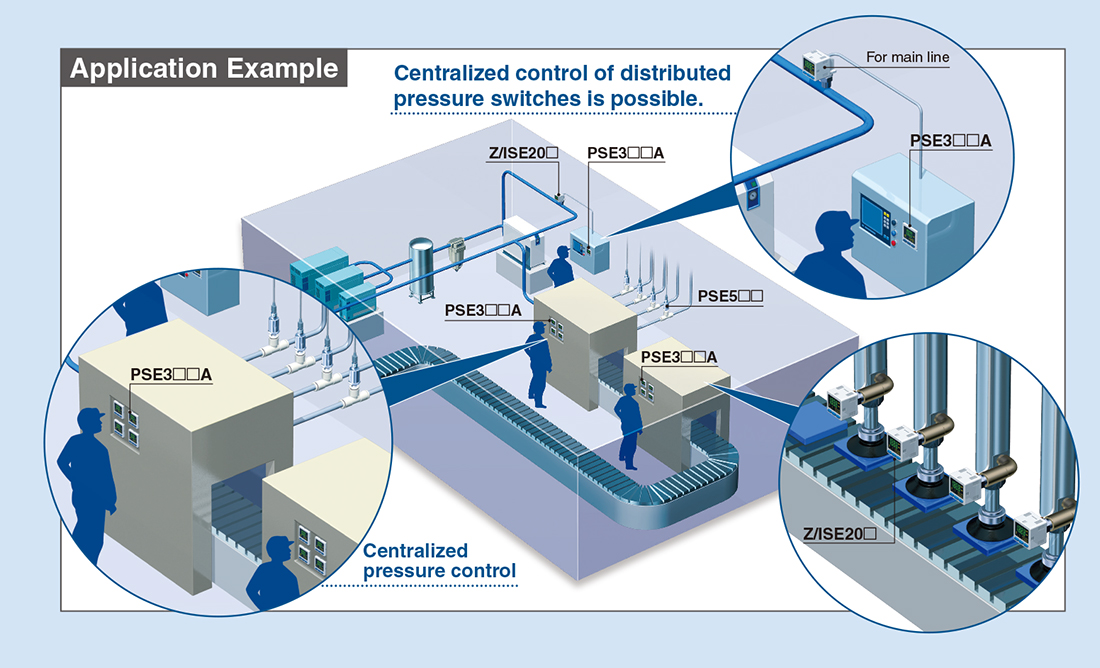

Application Example
