Rotary Actuators Rack & Pinion Type

Rotary Table MSQ

    ・Compact and lightweight

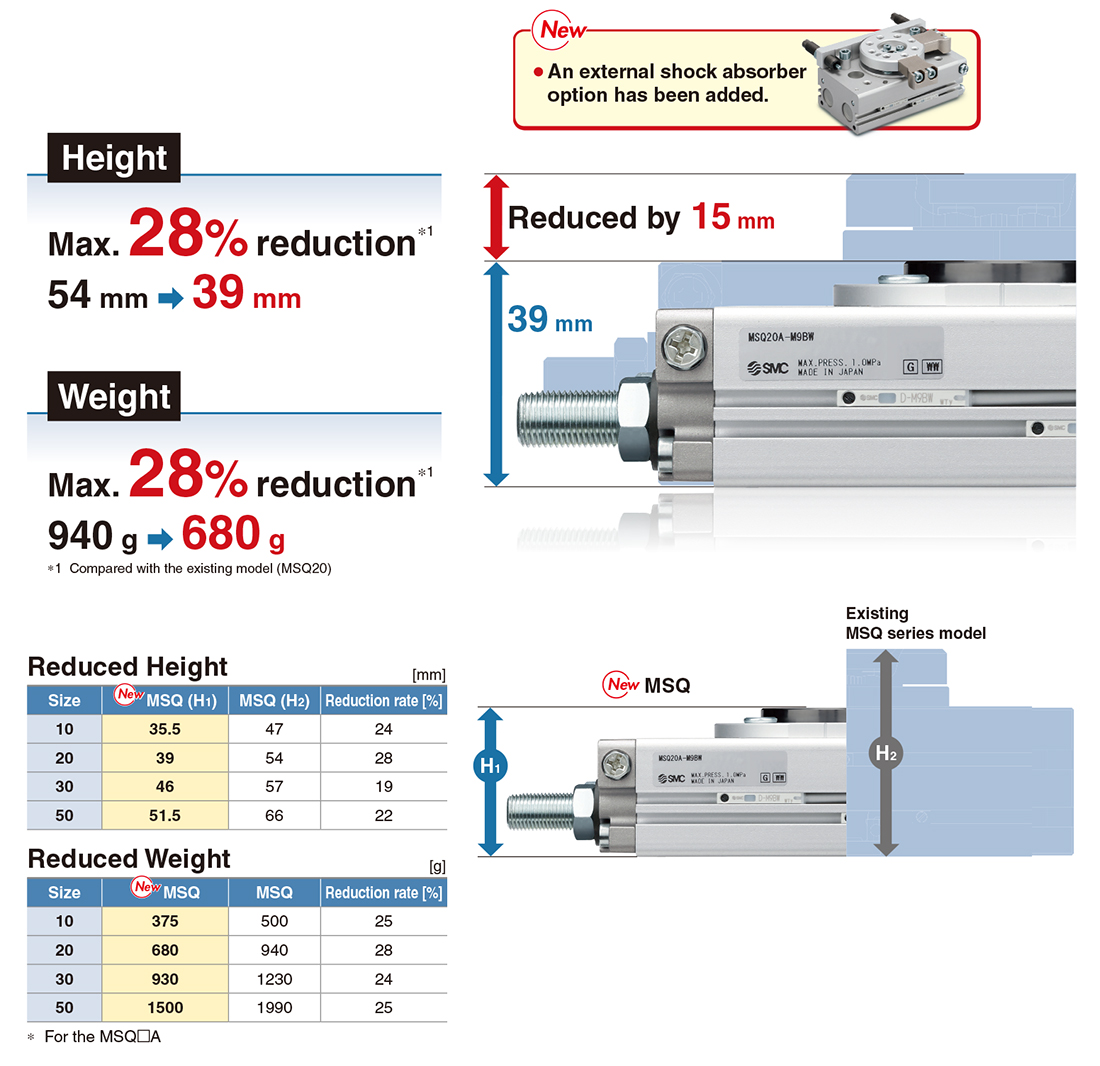

    　Height: Max. 28% reduction∗ (54 mm → 39 mm)
    　Weight: Max. 28% reduction∗ (940 g → 680 g)
    ・Enlarged center hole diameter for piping (ø9 mm → ø12 mm)
    　* Compared with the existing model (MSQ20)
    ・The adjustable rotation time range is expanded. (0.2 to 2.0 s/90º)
    　Can be used at lower speeds compared with the existing model
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Rotary Table MSQ
    Manual
    Type Series View search result
    Basic typeMSQView search result
    With external shock absorberMSQ□L
    With external shock absorberMSQ□H
Safety Instructions　Rotary Actuators/Precautions　Auto Switches/Precautions
Rotary Actuators Series Variations/Model Selection　Green Procurement (RoHS)
TypeSeriesRack typeSizeRotating angle
Basic typeMSQDouble10，20，30，500 to 190°
With external shock absorberMSQ□LDouble10，20，30，5090° 180°
With external shock absorberMSQ□HDouble10，20，30，5090° 180°

Features

Compact and lightweight

Improved workability

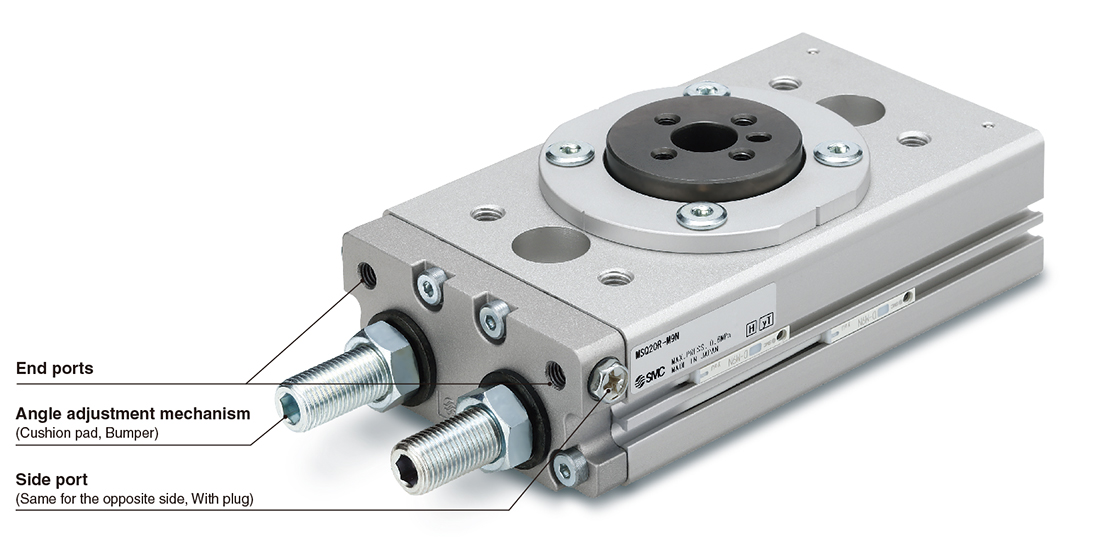

The end ports and the angle adjustment mechanisms are located on the same surface.

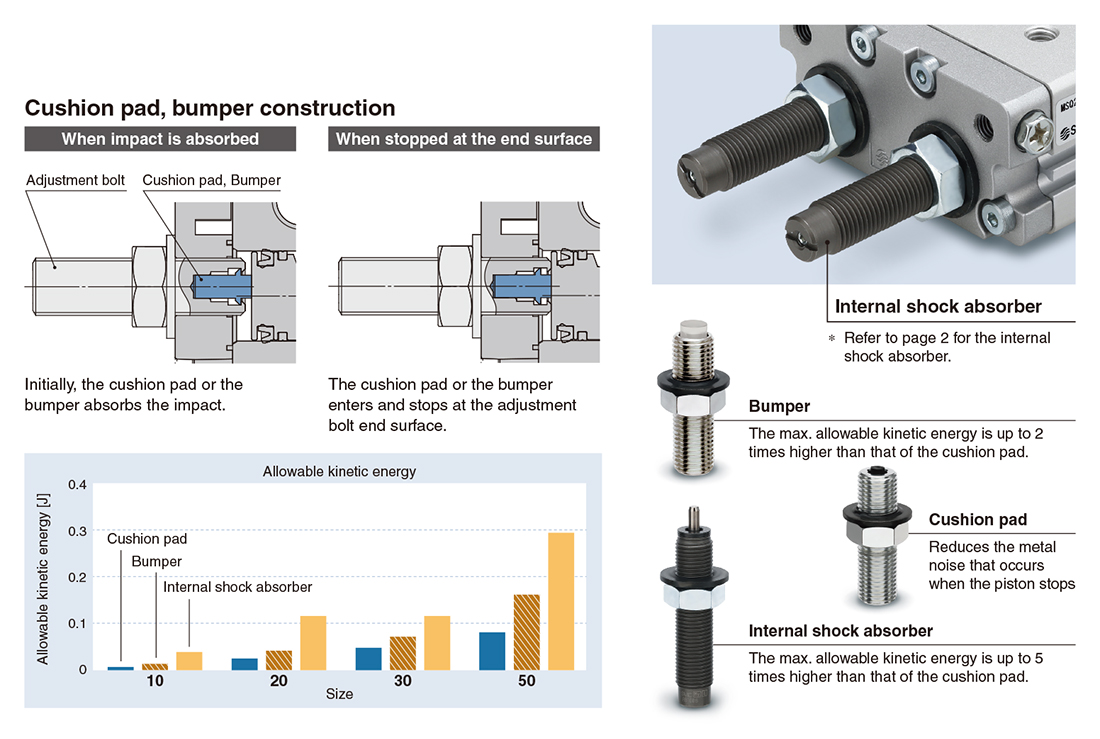

5 types of cushions are available.

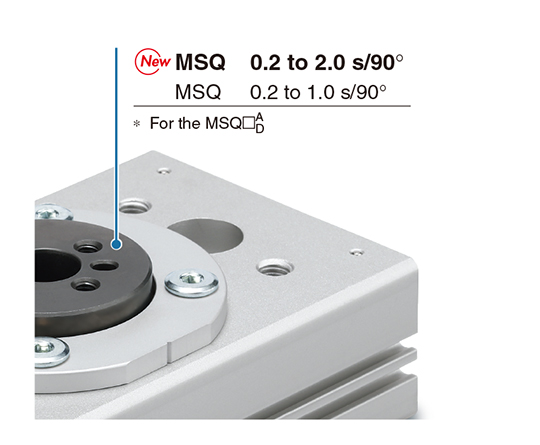

  • The adjustable rotation time range is expanded.

    Can be used at lower speeds compared with the existing model

  • High durability and high accuracy

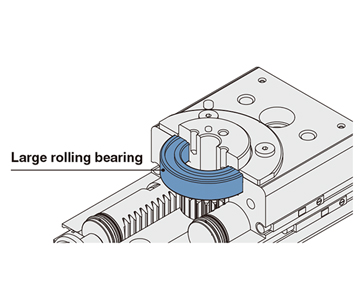

    The large rolling bearing provides high durability and high accuracy.

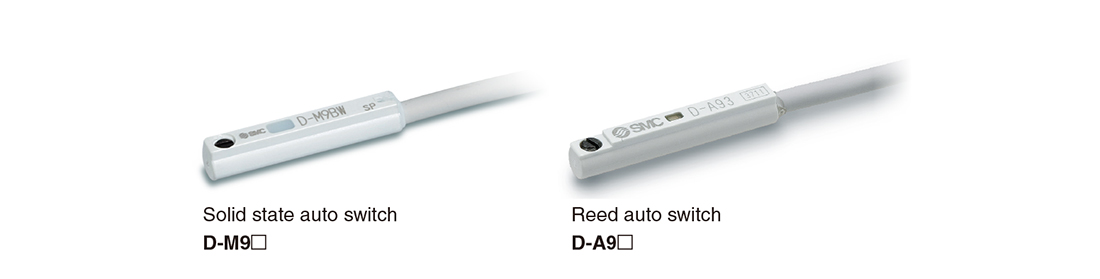

Compact auto switches are mountable.

An external shock absorber option has been added. NEW

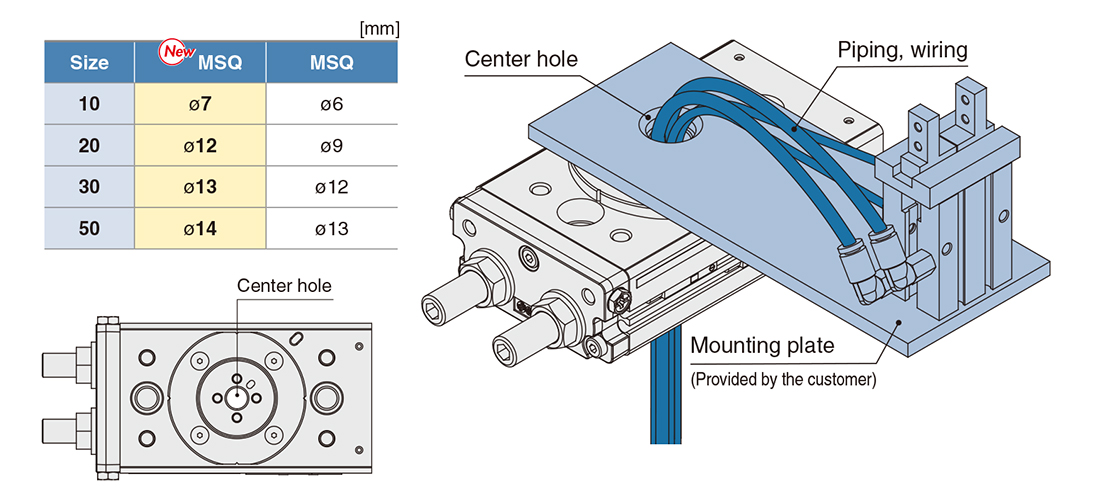

Enlarged center hole diameter for piping

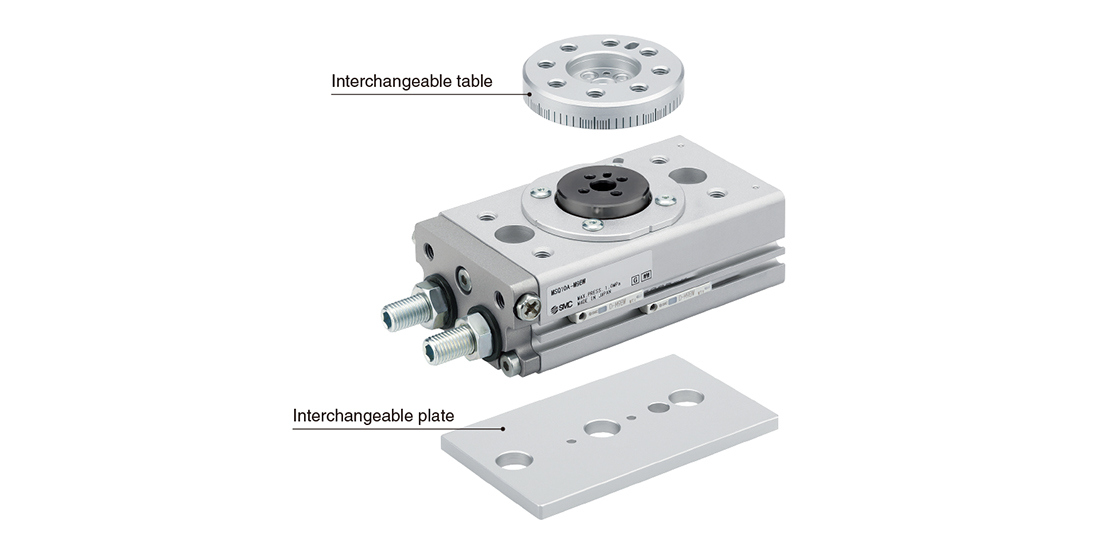

An interchangeable table and plate are available. (Made to order)

The new model is only fully interchangeable with the existing model when the optional interchangeable plate and table are utilized.

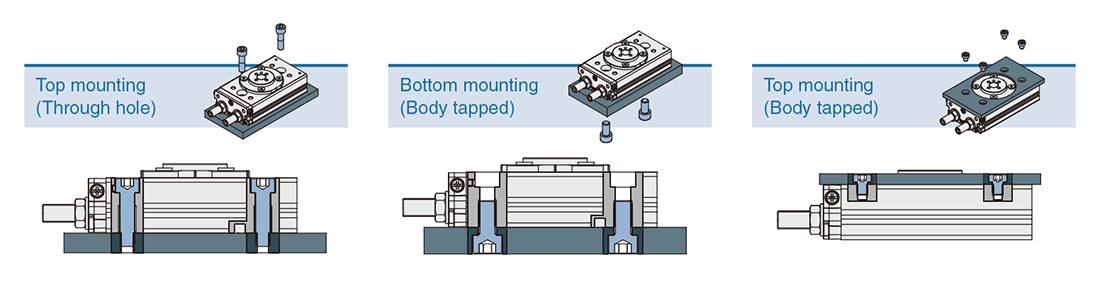

Select from 3 mounting methods.

Mounting dimensions are interchangeable with the existing MSQ series model.
