Rod Type/Guide Rod Type

High Performance Electric Actuator/Rod Type LEY□F

    ・A rod type (LEY□F) has been added. [New]
    ・Reduces cycle time
    　LEFS□F: Reduced by 39% (0.57 s ← 0.93 s) compared with the existing
    　model∗1
    　LEY□F: Reduced by 44% (0.54 s ← 0.97 s) compared with the existing
    　model∗2
    　∗1 When LEFS25FH-400 is operated from 0 to 400 mm (stroke)
    　∗2 When LEY25FA-300 is operated from 0 to 300 mm (stroke)
    ・Acceleration/Deceleration: 10000 mm/s2 (334% increase compared with
    　the existing model)
    ・Max. speed
    　LEFS□F: 1500 mm/s (Improved by 25% compared with the existing
    　model)
    　LEY□F: 800 mm/s (Improved by 60% compared with the existing model)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions　Green Procurement (RoHS)　CE/UL-compliance List
SpecificationModelStroke
(mm)		Pushing force
(N)		Speed
(mm/s)		Screw lead
(mm)
High performance
Step motor
(Servo/24 VDC)		LEY16F30 to 300Max.141Max.8002.5，5，10
High performance
Step motor
(Servo/24 VDC)		LEY25F30 to 400Max.452Max.15003，6，12
High performance
Step motor
(Servo/24 VDC)		LEY40F30 to 500Max.1058Max.13004，8，16

Features

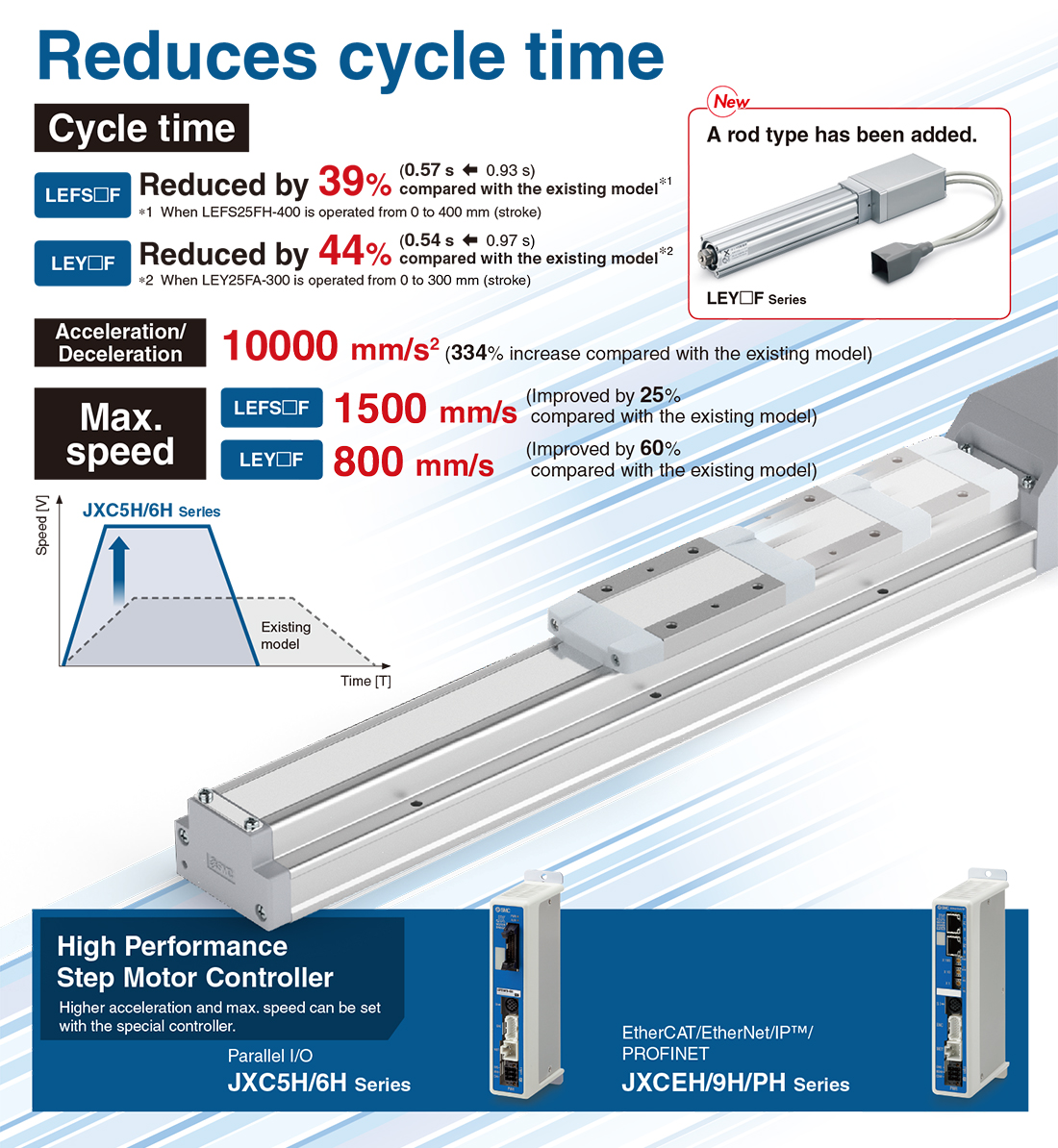

Reduces cycle time
