Battery-less Absolute Encoder Type

Battery-less Absolute Encoder Type
Electric Actuator/Slider Type, Belt Drive LEFB

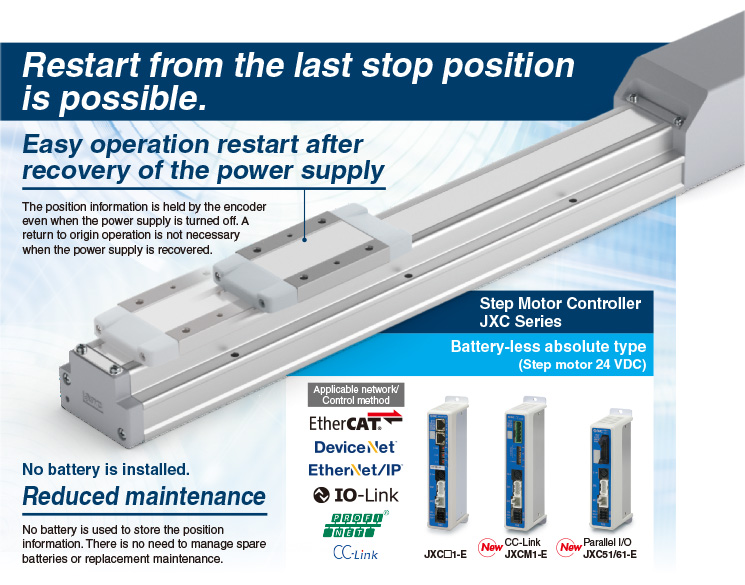

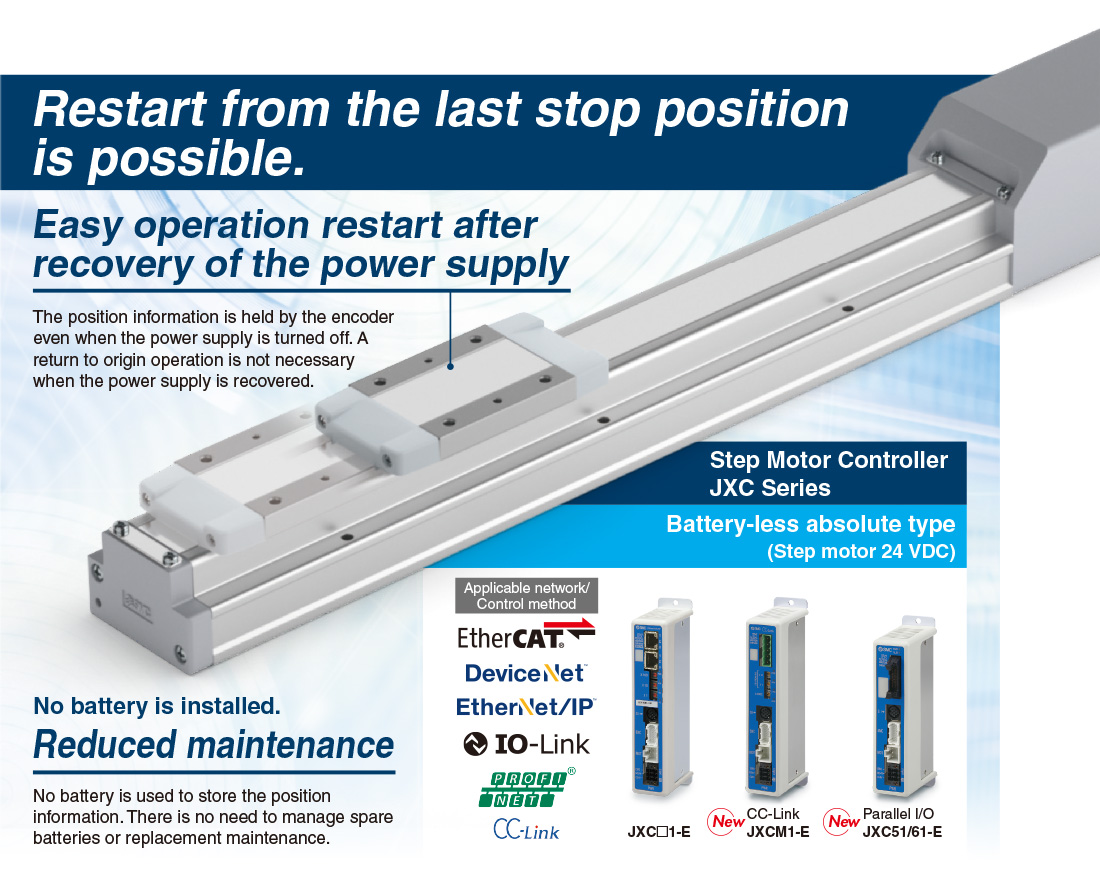

    ・Restart from the last stop position is possible.
    ・Easy operation restart after recovery of the power supply
    　The position information is held by the encoder even when the power supply is turned off.
    　A return to origin operation is not necessary when the power supply is recovered.
    ・No battery is installed. Reduced maintenance
    　No battery is used to store the position information.
    　There is no need to manage spare batteries or replacement maintenance.
    ・Max. stroke: 2000 mm
    ・Max. speed: 2000 mm/s
    ・Positioning repeatability: ±0.08 mm
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Electric Actuators/Precautions　Auto Switches/Precautions
Features　Series Variations　Simplified Selection Flow Chart　Green Procurement (RoHS)
SpecificationModelStroke
(mm)		Work load (kg)
Horizontal
Speed
(mm/s)		Equivalent lead
(mm)
Battery-less absolute
(Step motor/24 VDC)		LEFB16300 to 1000148 to 110048
Battery-less absolute
(Step motor/24 VDC)		LEFB25300 to 20001048 to 140048
Battery-less absolute
(Step motor/24 VDC)		LEFB32300 to 20001948 to 150048

Features

■Restart from the last stop position is possible.

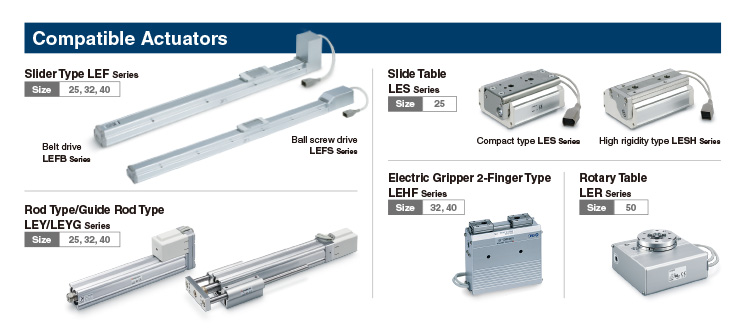

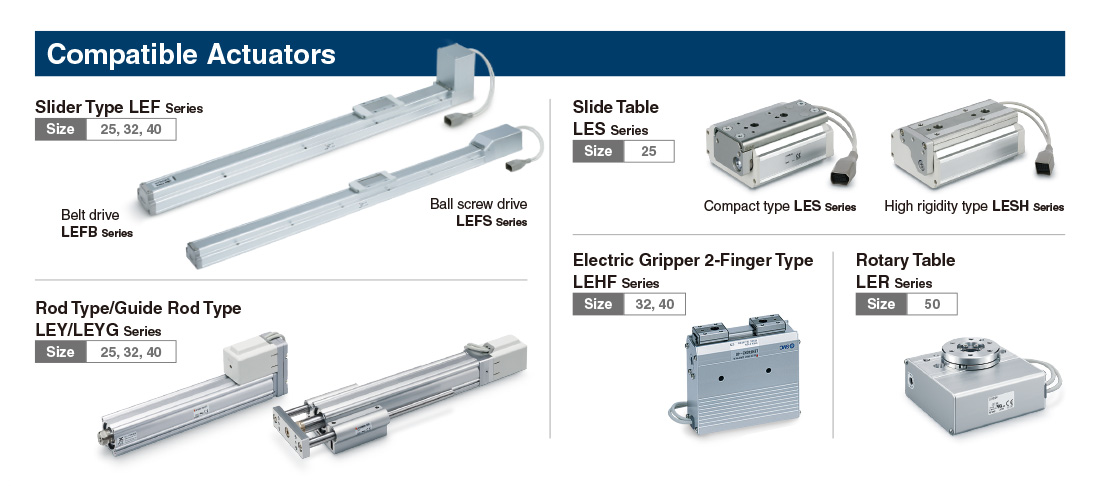

■Compatible Actuators
