Rotary Actuator CRB2/CDRB2

Safety Instructions　Rotary Actuators/Precautions　Auto Switches/Precautions
Rotary Actuators Series Variations/Model Selection　Quick Selection Table
Green Procurement (RoHS)

Type	Series	Vane type	Size	Rotating angle Single	Rotating angle Double
Standard	CRB2	Single Double	10，15，20，30，40	90°180°270°	90°100°
With angle adjuster	CRB2□WU	Single Double	10，15，20，30，40	90°180°270°	90°100°

Features

Many combinations available!

Standard Type/Series CRB2

Free mount type/Series CRBU2

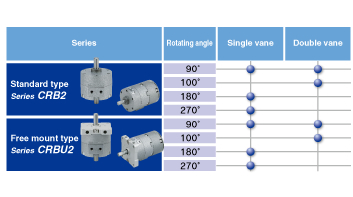

Rotating angle: 90°, 180°, 270°
All series can rotate up to 270°.

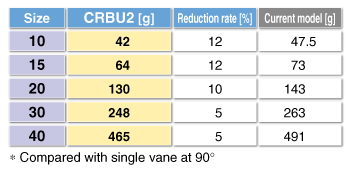

The use of specially designed seals and stoppers now enables our compact vane type rotary actuators to rotate up to 270°. (Single vane type)

Interchangeable mounting pitch with the current model

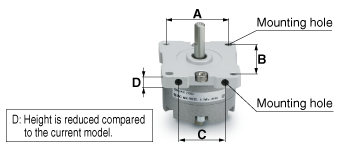

Mounting pitches A to C shown and mounting hole diameters are interchangeable with the current model.

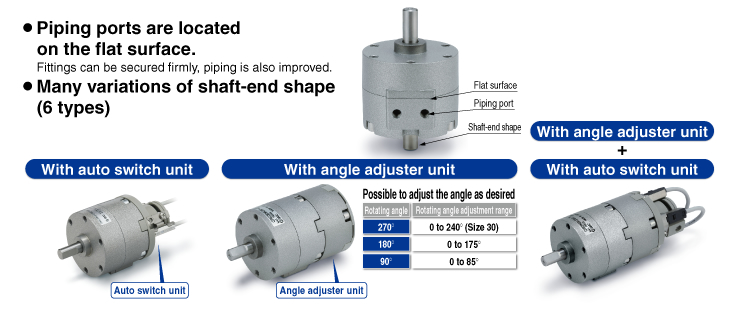

Shaft type variations

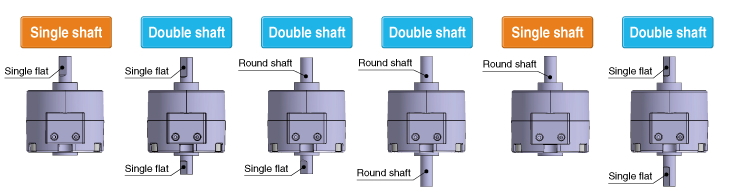

Six shaft options available(∗The figures below show size 30 actuators.)

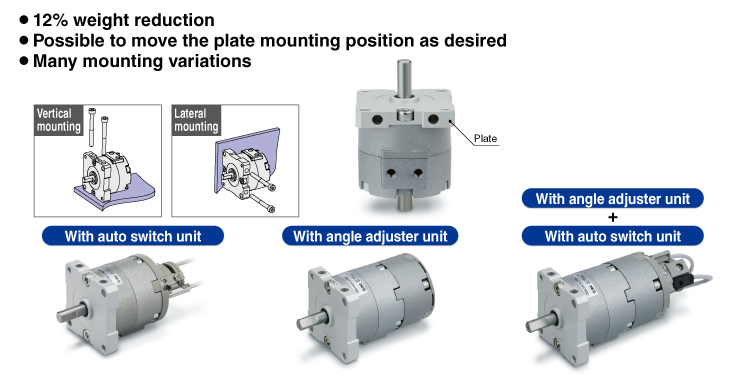

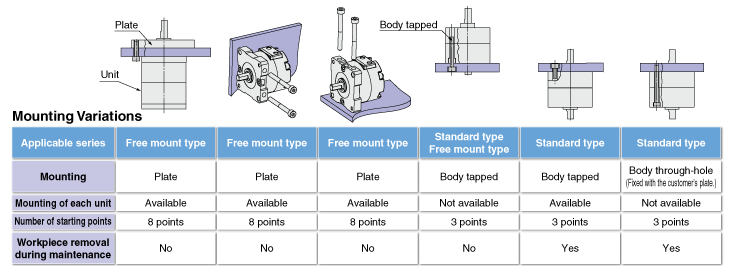

Direct mounting

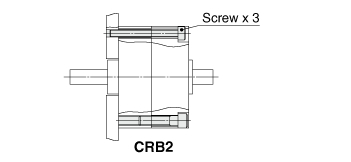

The rotary actuator body can be mounted directly.
∗Not possible for size 10 to 40 with unit(s)

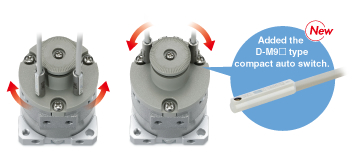

The mounting position of the auto switch can be set freely.

The switch can be fixed in the desired position in the circumferential direction.

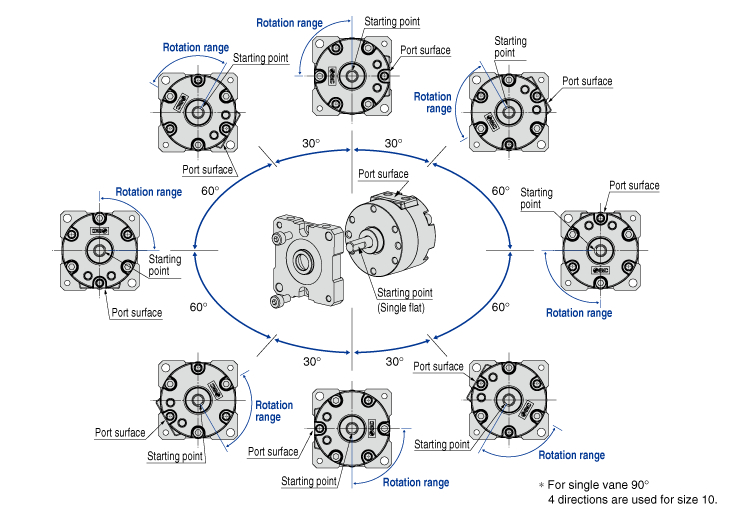

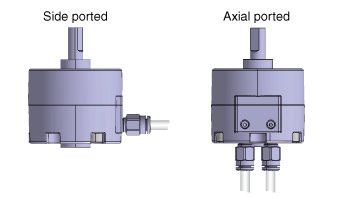

Connecting port location: Side ported or Axial ported

The port location can be selected according to the application. (Size 10 to 40 with unit(s) are side ported only.)

Double vane type is standardized for 90° and 100°.

The outside dimensions of the double vane type are equivalent to those of the single vane type (except size 10). Double vane construction can get twice the torque of the single vane type.
