Fittings for Special Environments

Stainless Steel One-touch Fittings KQ2-G

    ・Metal material: Stainless steel 303

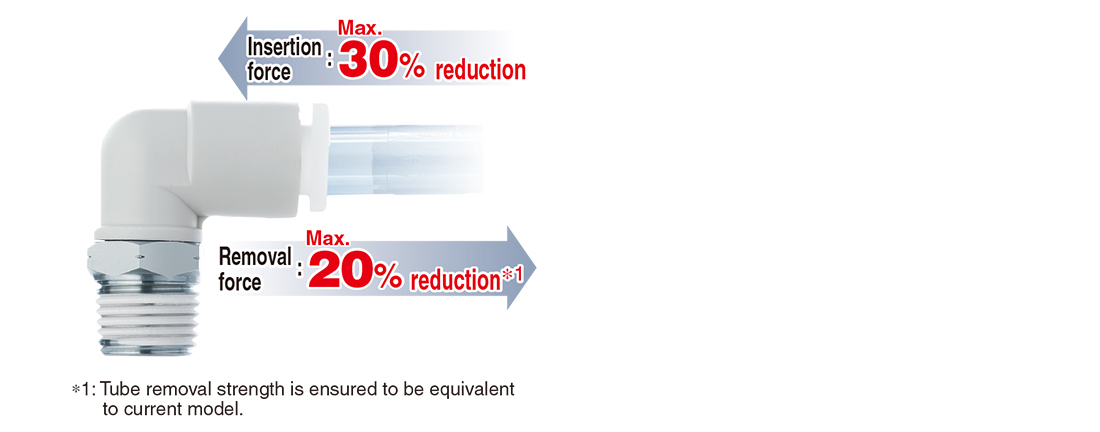

    ・Improved tube insertion/removal: Insertion force reduced by up to 30%,
    　Removal force reduced by up to 20%

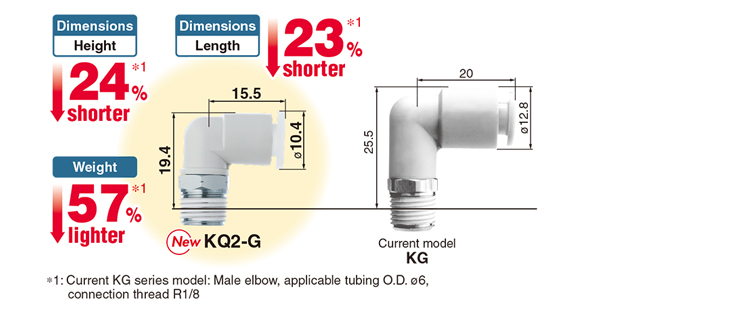

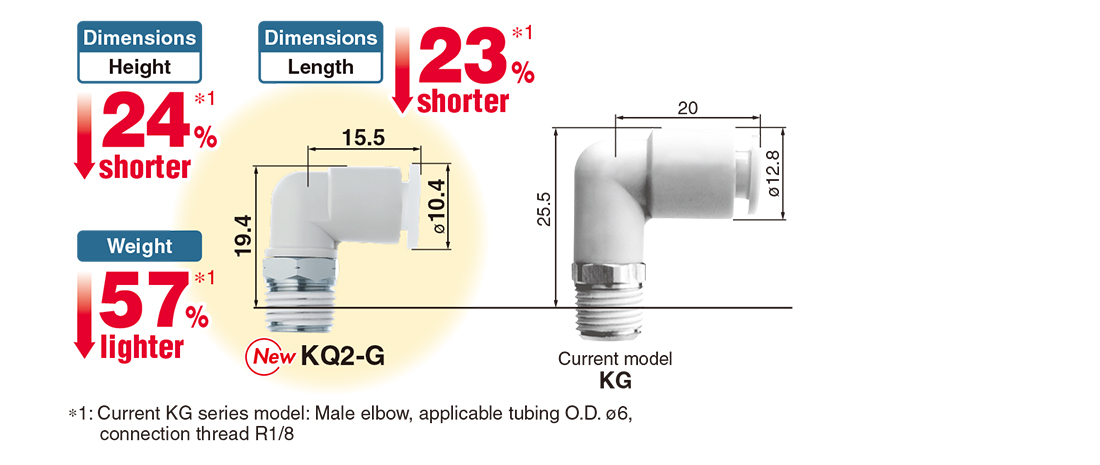

    ・Compact and lightweight
    　Dimensions: Height 24% shorter, Length 23% shorter,
    　Weight 57% lighter

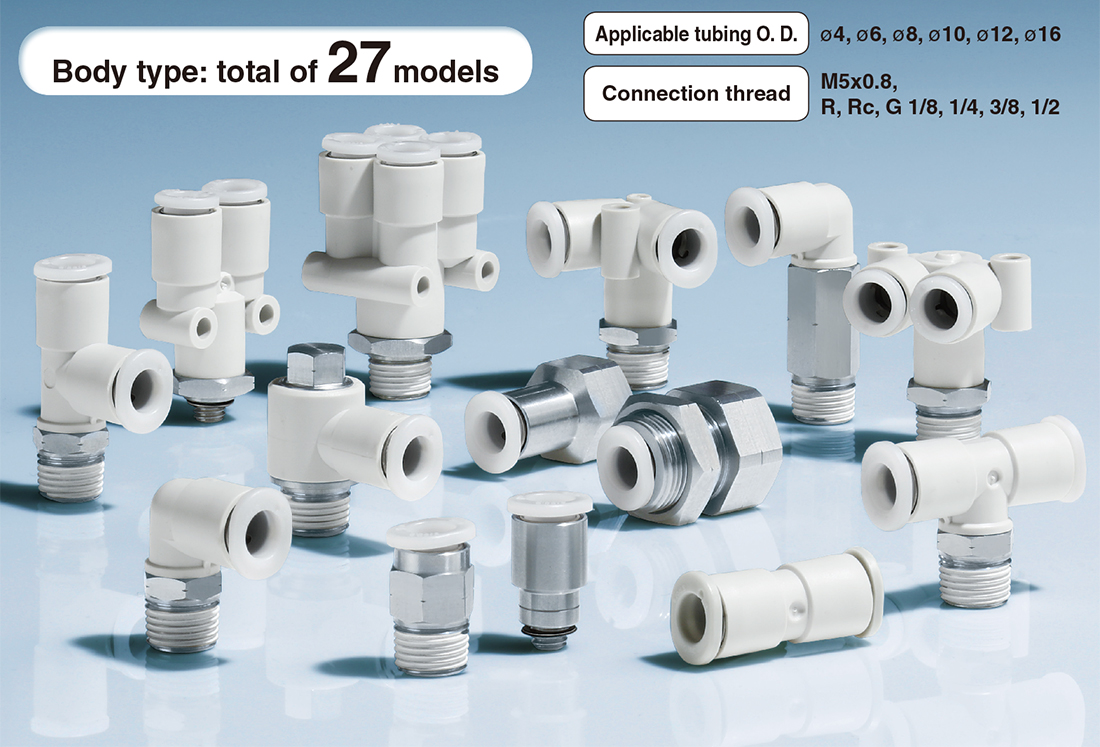

    ・Body types: Total of 27 models
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
Safety Instructions　Fittings and Tubing/Precautions　Green Procurement (RoHS)
SeriessizeApplicable tubing O.D.Connection thread
KQ2-GMetricφ4, φ6, φ8, φ10, φ12, φ16M5
R, Rc, G 1/8, 1/4, 3/8, 1/2

Features

Metal material: Stainless steel 303



Improved tube insertion/removal

Improved tube insertion/removal

Body type: total of 27 models
