Air Filters/Mist Separators/Micro Mist Separators

Modular Type Water Separator AFG-D

    · The no filter element design achieves a large flow and
    　maintenance free construction.

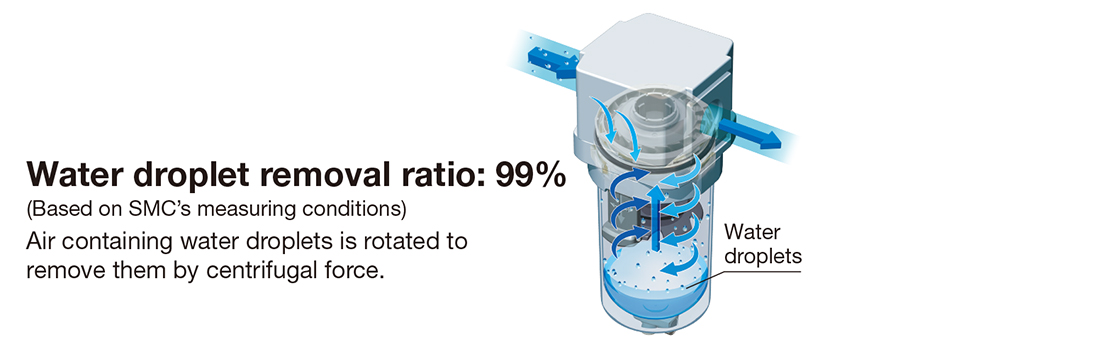

    · Water droplets are removed by centrifugal force.
    　(Water droplet removal ratio: 99%)
    　Air containing water droplets is rotated to remove them
    　by centrifugal force.
    · Modular Design with Uniform Body Style
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Modular Type Water Separator AFG-D
    Manual
    Series View search result
    AFG20 to 40-DView search result
Safety Instructions　F.R.L. Units/Precautions　Product Selection Guide
Green Procurement (RoHS)

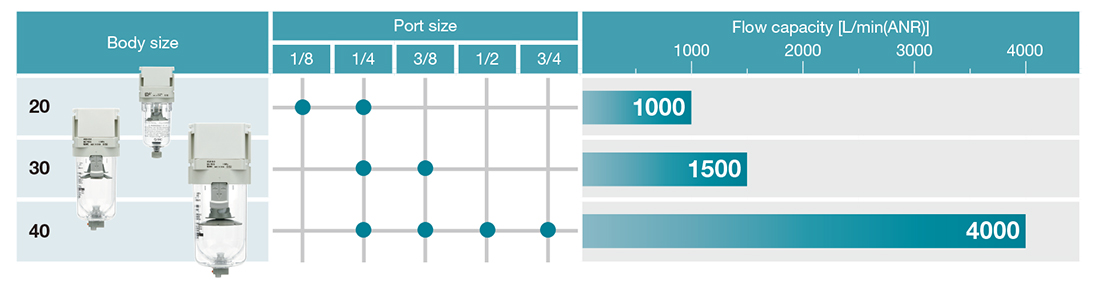

SeriesPort sizeWater droplet removal rat
AFG20 to 40-D1/8，1/4，3/8，1/2，3/499%

Features

The no filter element design achieves a large flow and maintenance free construction.

Water droplets are removed by centrifugal force.

Variations

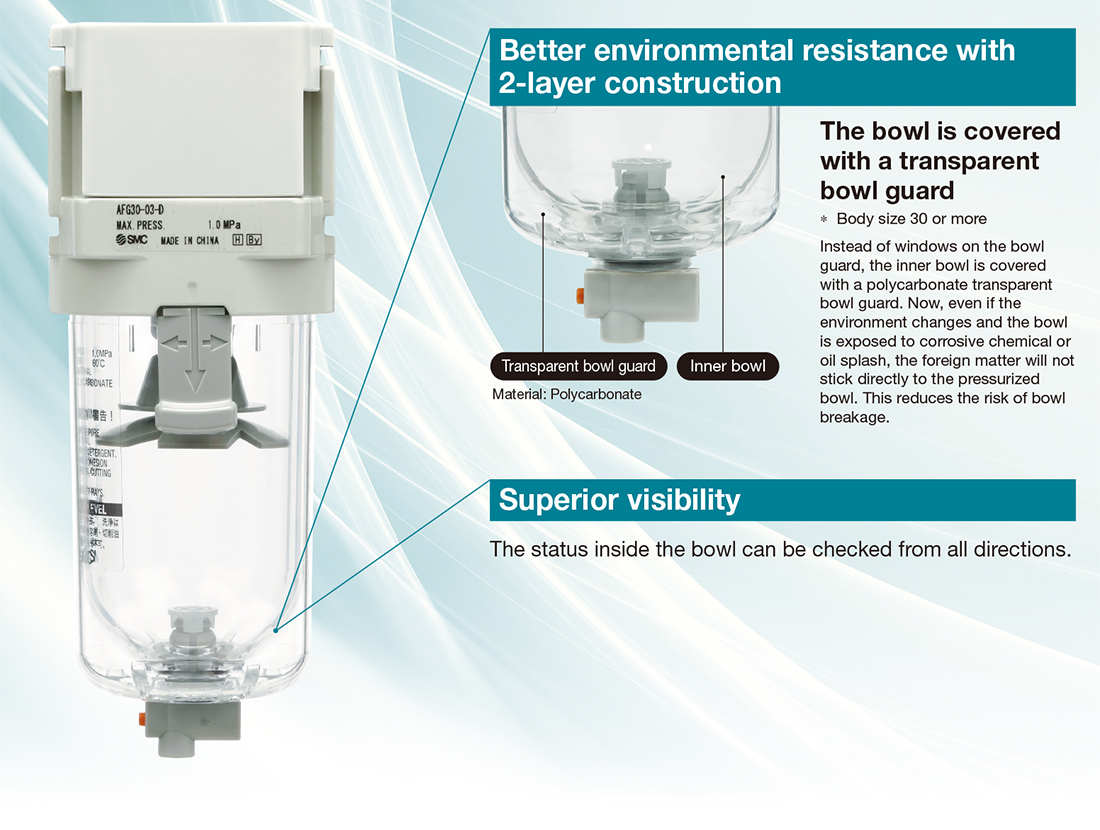

Better environmental resistance with 2-layer construction

Superior visibility

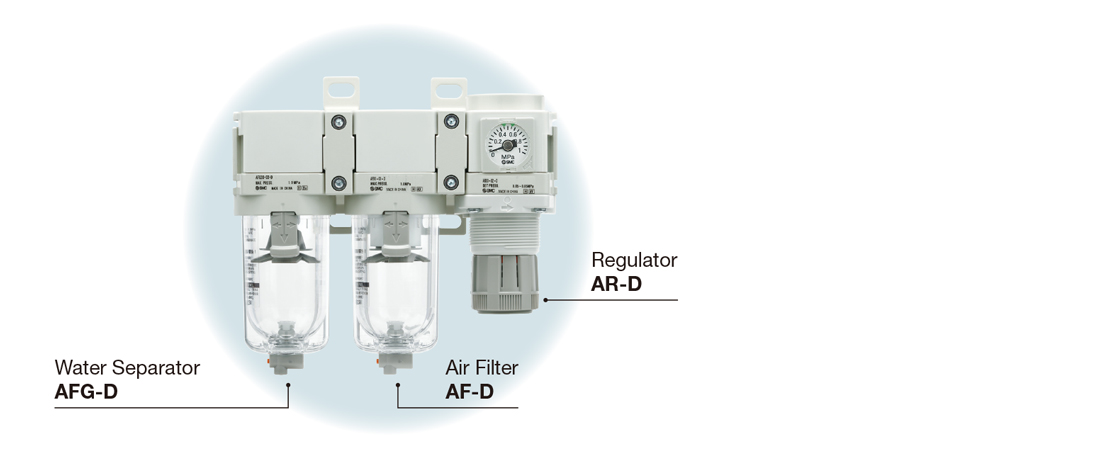

Modular Design with Uniform Body Style

Modular connection is possible.

Simple Specials System

A system designed to respond quickly and easily to your special ordering needs

Please contact your local sales representative for more details.

Examples of Simple Specials
