Rotary Actuators Vane Type

Rotary Actuator CRB/CDRB

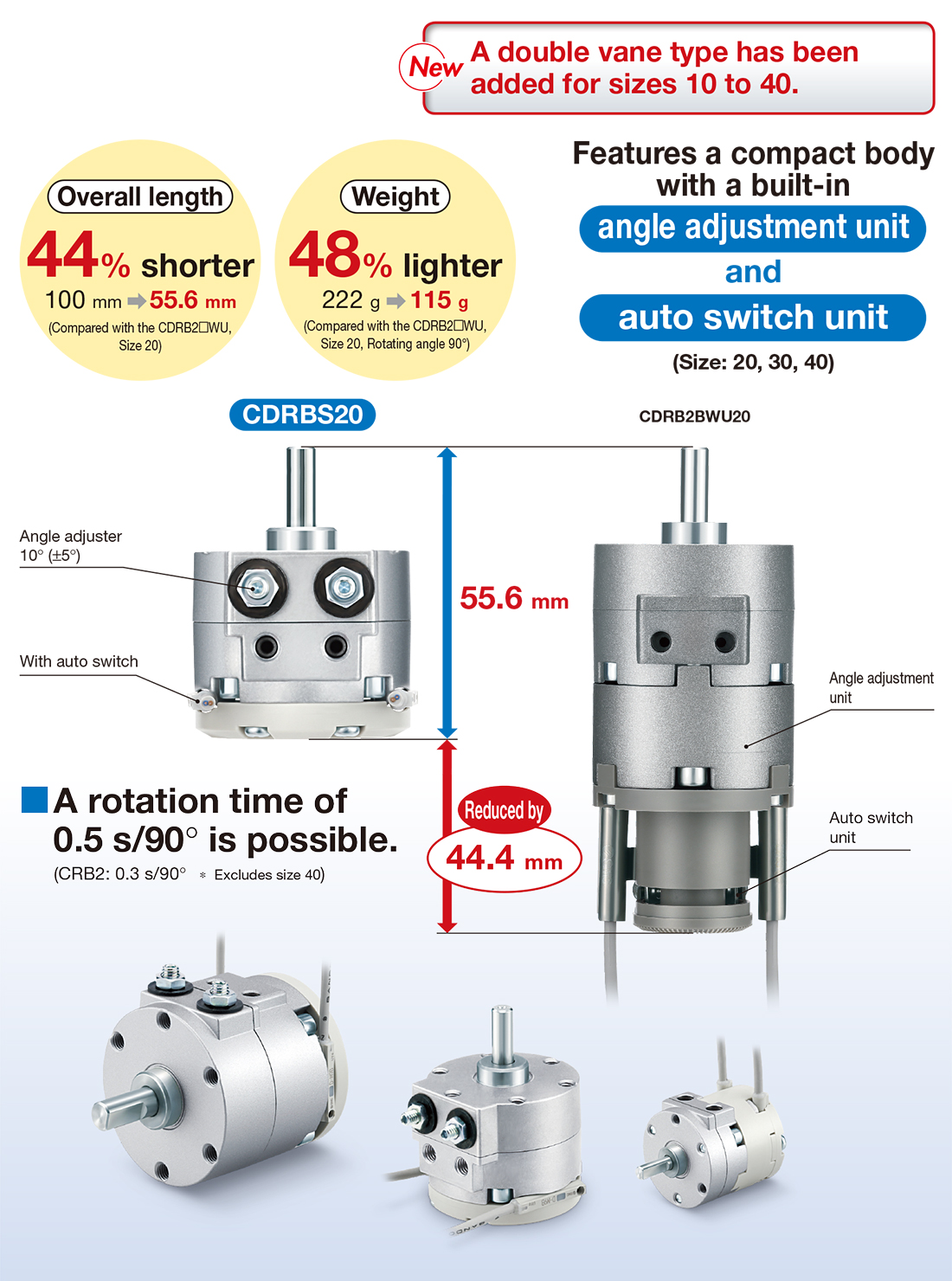

    ・A double vane type has been added for sizes 10 to 40. [New]
    ・Features a compact body with a built-in angle adjustment unit and auto
    　switch unit (Size: 20, 30, 40)
    　Overall length: 44% shorter, Weight: 48% lighter

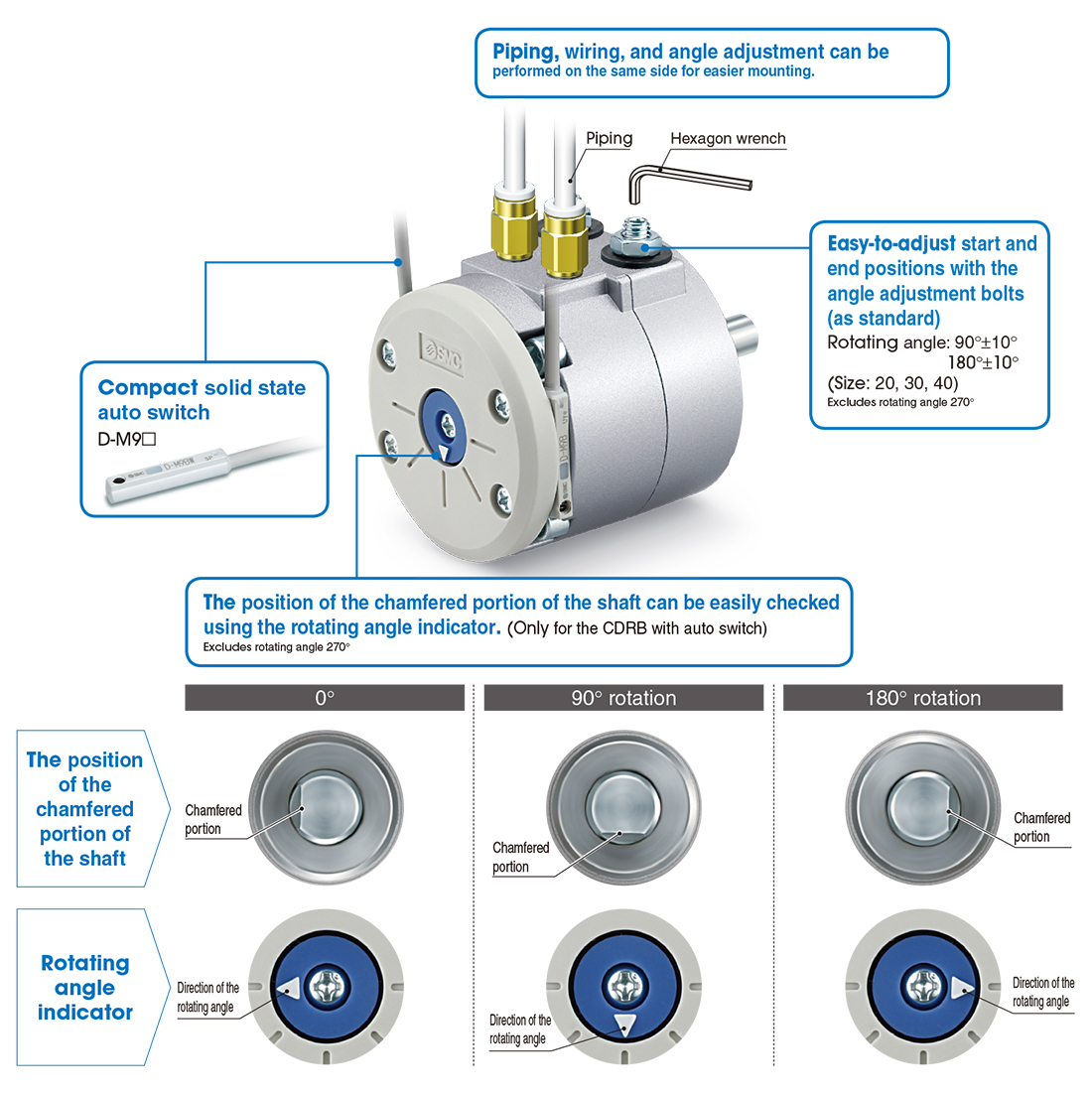

    ・Piping, wiring, and angle adjustment can be performed on the same side
    　for easier mounting.
    ・Easy-to-adjust start and end positions with the angle adjustment bolts
    　(as standard)
    ・The position of the chamfered portion of the shaft can be easily checked
    　usingthe rotating angle indicator. (Only for the CDRB with auto switch)
    ・Each of the units below for the CRB2 series can be mounted to the CRB
    　series.
  • 2D CAD
    Click here for 2D CAD
  • Rotary Actuator CRB/CDRB
    Manual
    Type Series View search result
    Standard (Without auto switch)CRBView search result
    Standard (With auto switch)CDRBView search result
    With vertical auto switch unitCRB□-A
    With angle adjustment unitCRB□-B
    With vertical auto switch unit　With angle adjustment unitCRB□-C
Safety Instructions　Rotary Actuators/Precautions　Auto Switches/Precautions
Rotary Actuators Series Variations/Model Selection　Quick Selection Table
Green Procurement (RoHS)
TypeSeriesVane typeSizeRotating angle SingleRotating angle Double
Standard (Without auto switch)CRBSingle，Double10，15，20，30，4090°，180°，270°90°，100°
Standard (With auto switch)CDRBSingle10，15，20，30，4090°，180°-
With vertical auto switch unitCRB□-ASingle，Double10，15，20，30，4090°，180°，270°90°，100°
With angle adjustment unitCRB□-BSingle，Double10，15，20，30，4090°，180°，270°90°，100°
With vertical auto switch unit　With angle adjustment unitCRB□-CSingle，Double10，15，20，30，4090°，180°，270°90°，100°

Features

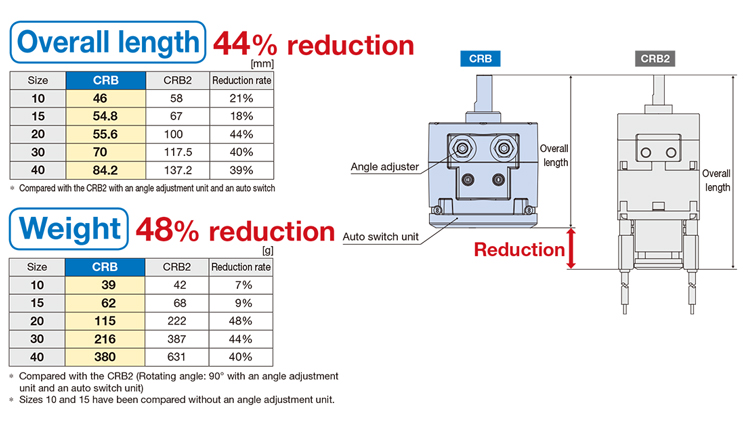

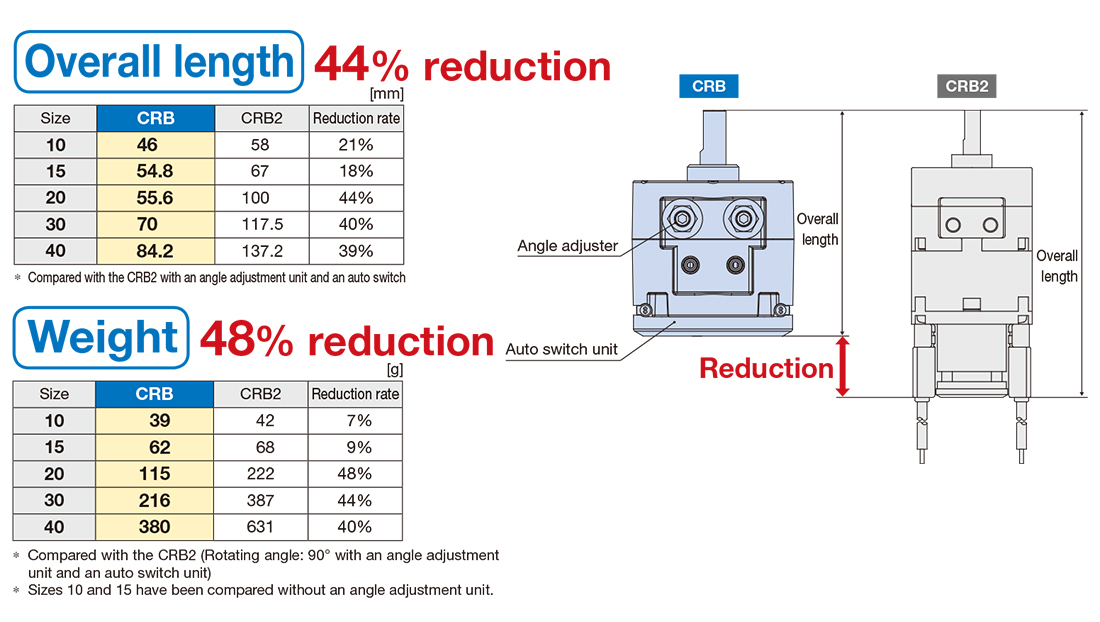

Features a compact body with a built-in angle adjustment unit and auto switch unit
　(Size: 20, 30, 40)

Overall length: 44% reduction
Weight: 48% reduction

Features

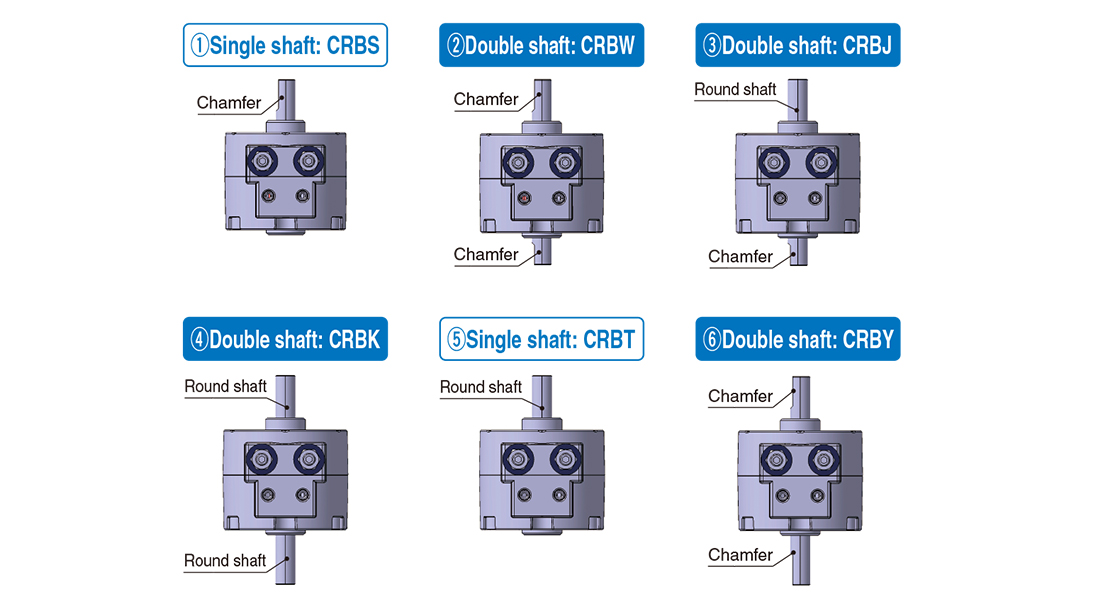

Shaft type variations

＊ If an auto switch is to be mounted, choose a single shaft (options ① and ⑤).

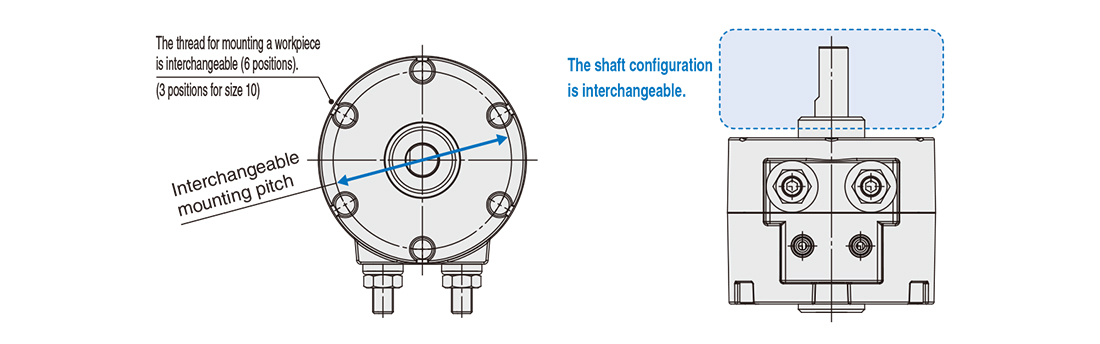

Interchangeable mounting

The mounting pitch and shaft configuration are the same as those for the CRB2.

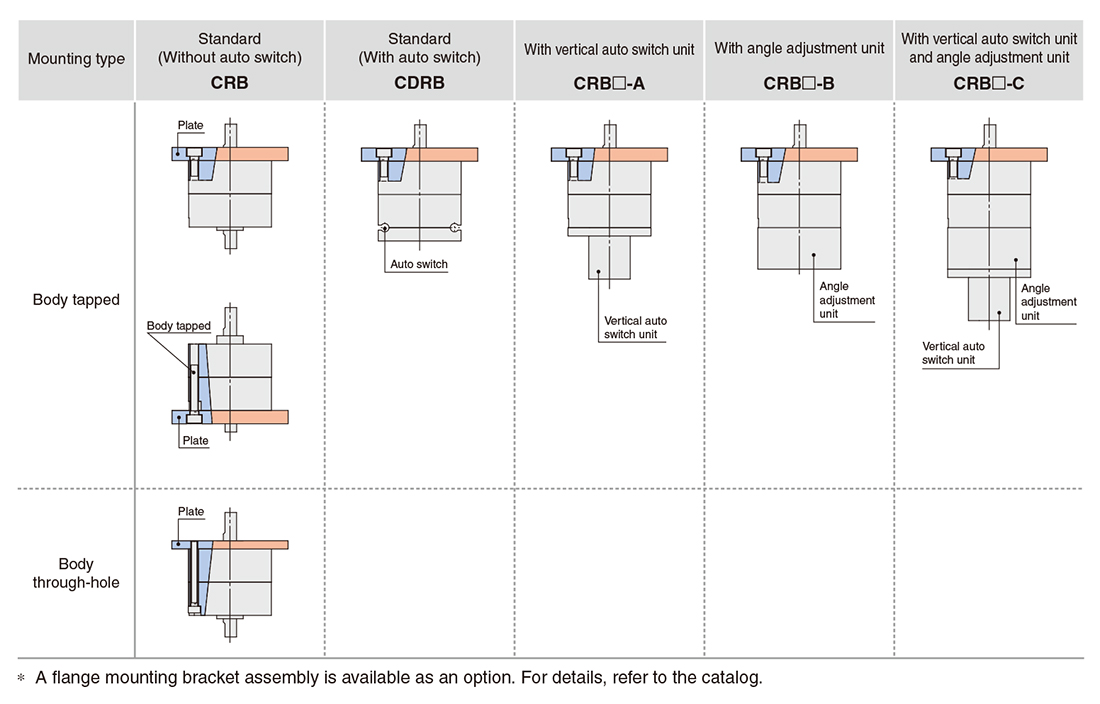

Mounting

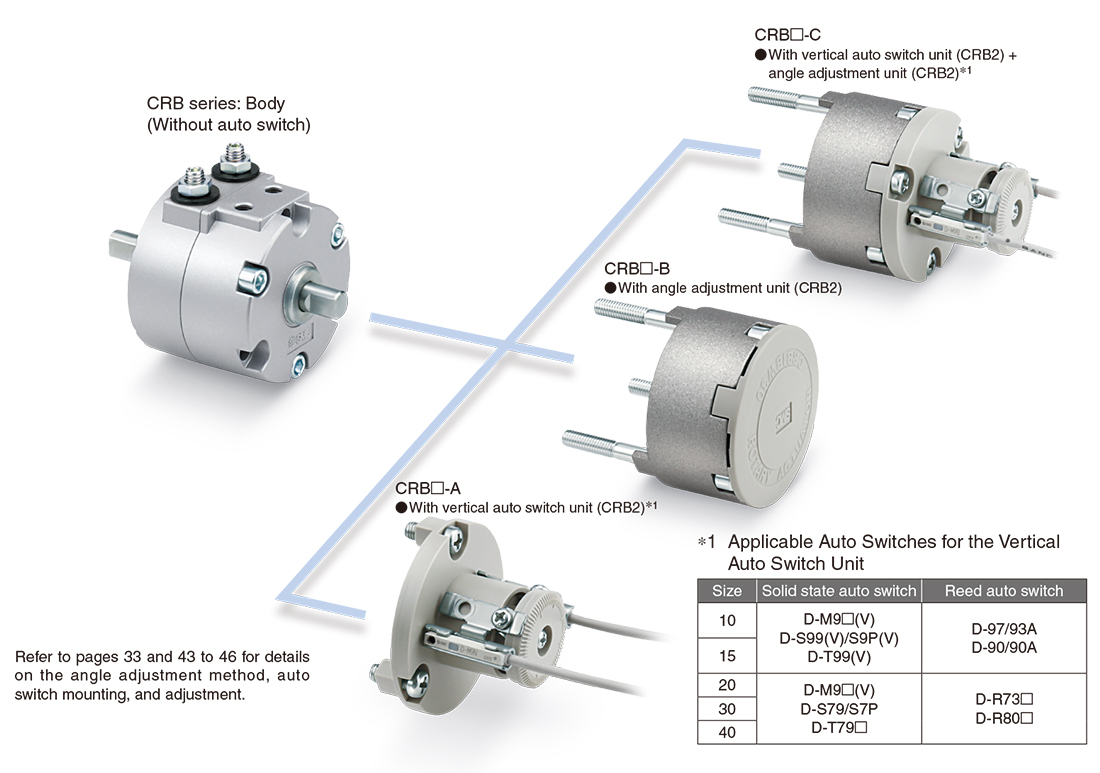

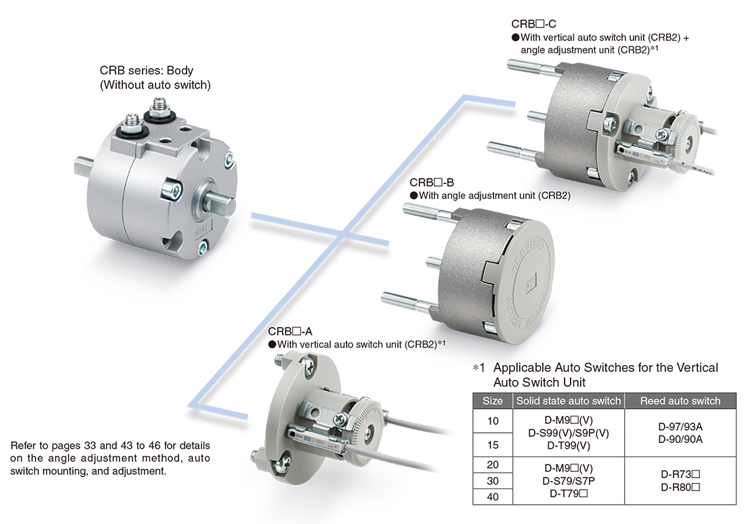

Each of the units below for the CRB2 series can be mounted to the CRB series.

・The vertical auto switch unit and the angle adjustment unit are the same as those of the CRB2 series. Replacement of just the CRB body can be done during maintenance.
・Each of the units for the CRB2 series can be mounted to the CRB without an auto switch (CRBW).

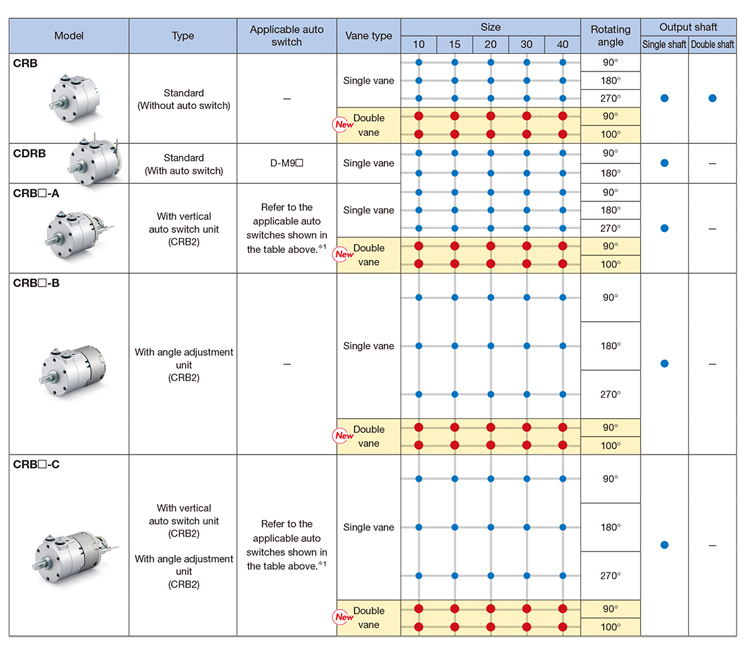

Series Variations
