New Products:Energy Saving, Exhaust-Recovery Booster Regulator VBAE Series
New Product Information
Energy Saving, Exhaust-Recovery Booster Regulator VBAE Series
New
![](/assets/newproducts/en-jp/images/prod/vbae.jpg)
![](/assets/newproducts/en-jp/images/mark/rohs.jpg)
Updated Jul-24
- CO2 emissions (Air consumption) :Max. 40% reduction
(Based on SMC's measuring conditions)
Driven by reusing the exhaust air - Increase factory air pressure by 1.7 times Air-only operation that requires no power supply, and allows for easy installation.
- Operation noise: 65 dB (A)
15 dB (A) reduction compared with the existing model (VBA series) (Based on SMC's measuring conditions) - Charging time: Max. 50% shorter
Reduced maintenance frequency due to improved life
(Based on SMC's measuring conditions) - Compatible with vertical and horizontal installation
- Mounting interchangeability with the existing model (VBA series)
Product Features

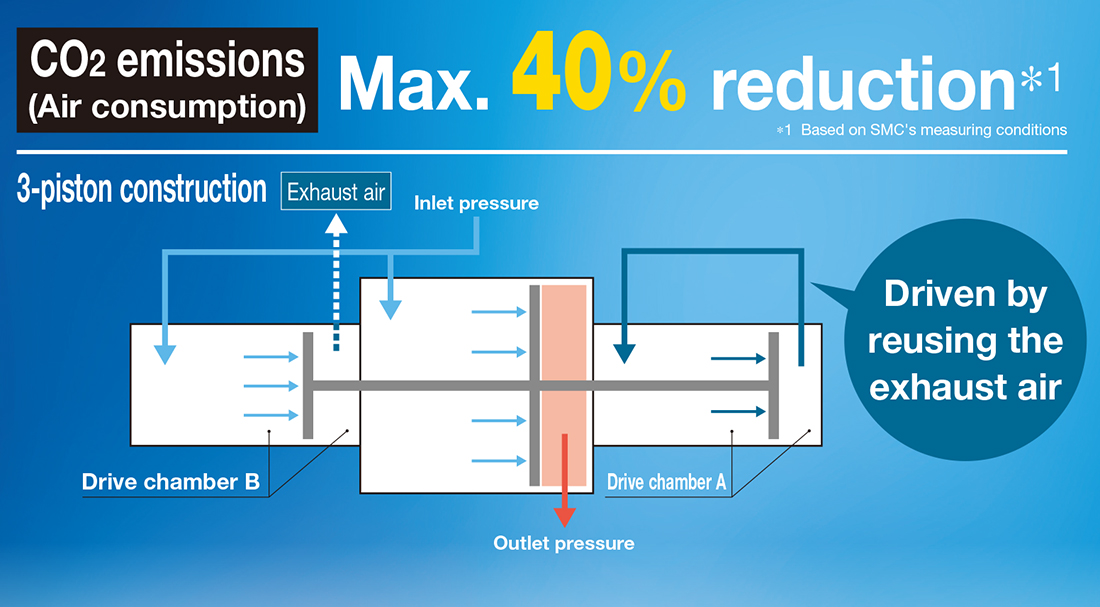

CO2 emissions (Air consumption) :Max. 40% reduction (Based on SMC's measuring conditions)
![](/assets/newproducts/en-jp/vbae/images/01.jpg)

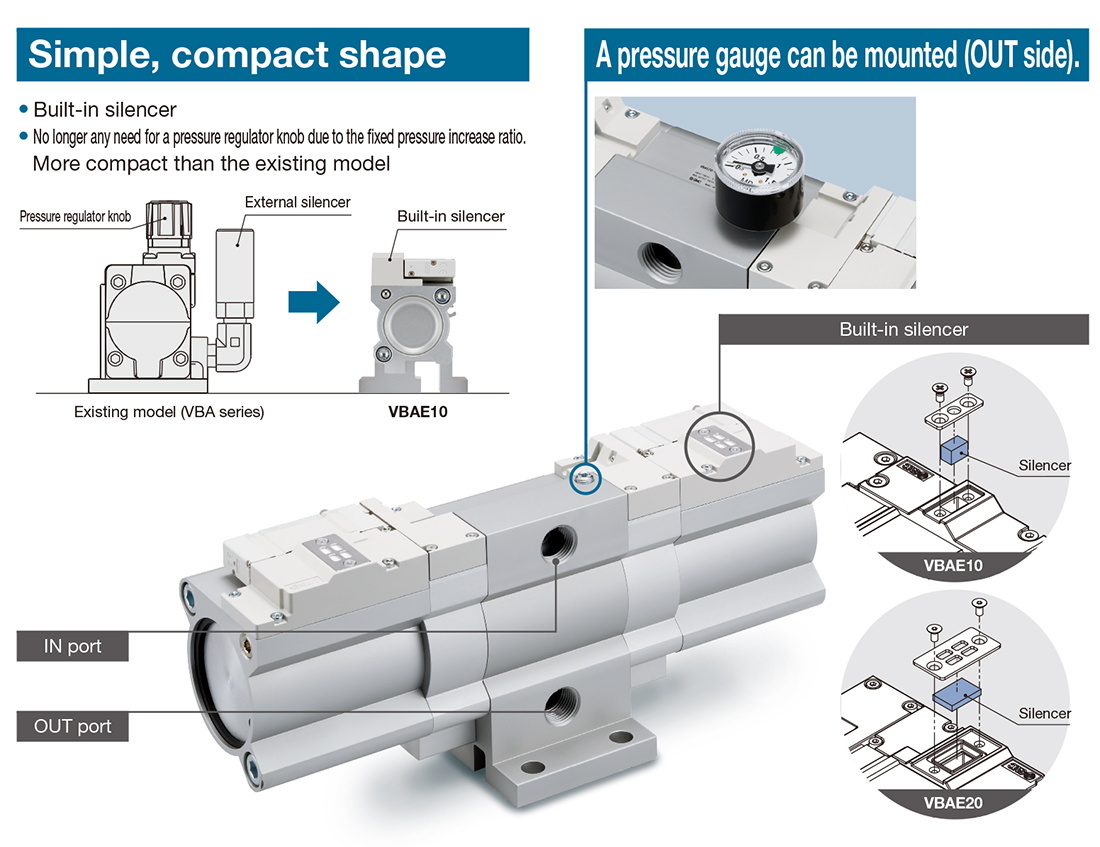

Increase factory air pressure by 1.7 times Air-only operation that requires no power supply, and allows for easy installation.
Operation noise: 65 dB (A)
15 dB (A) reduction compared with the existing model (VBA series)*
・Exhaust noise: Reduced noise due to exhaust of reused low-pressure air
・Metal noise: Reduced noise due to the adoption of a construction in which the internal switching part does not come into contact with any metal parts
* Based on SMC’s measuring conditions. For size 10A
Operating cycles: 50 million cycles or more
Maintenance frequency is reduced due to improved life.
*Based on SMC's test conditions

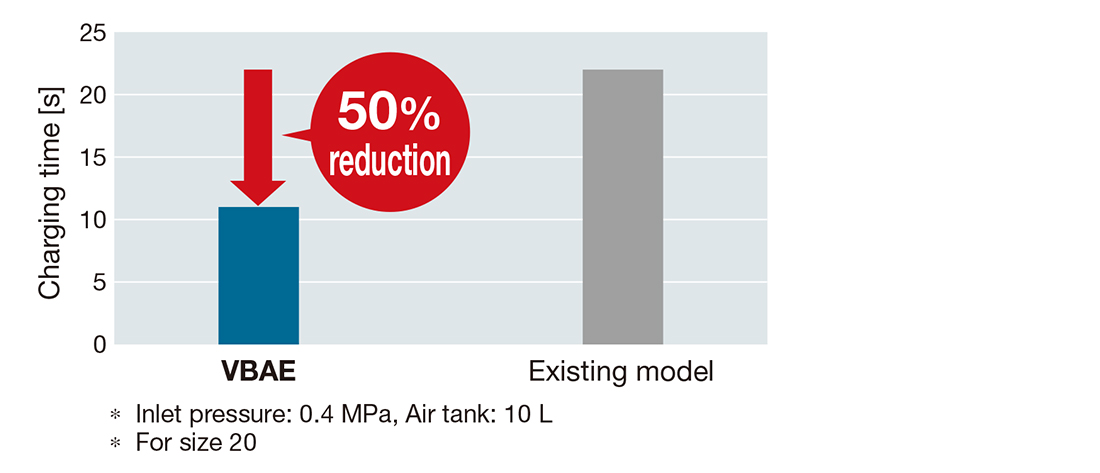

Charging time: Max. 50% shorter
![](/assets/newproducts/en-jp/vbae/images/02.jpg)
![](/assets/newproducts/en-jp/vbae/images/03.jpg)

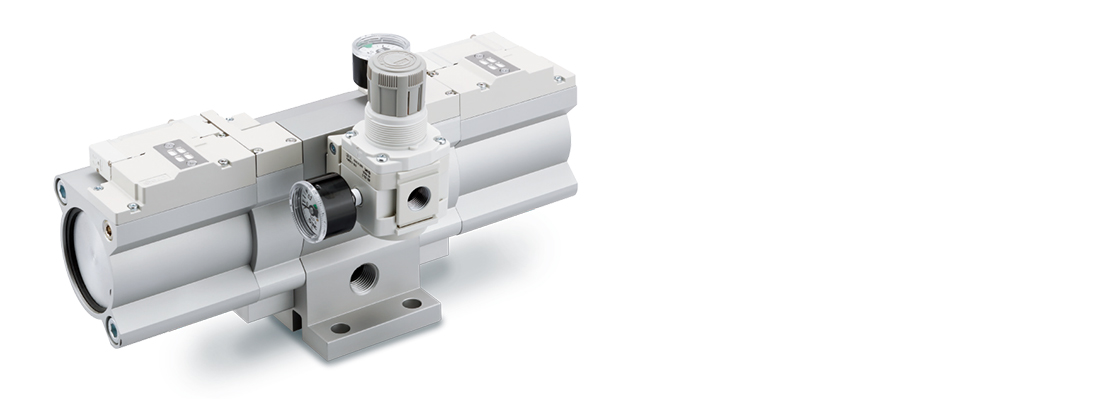

A regulator can be mounted.
![](/assets/newproducts/en-jp/vbae/images/04.jpg)

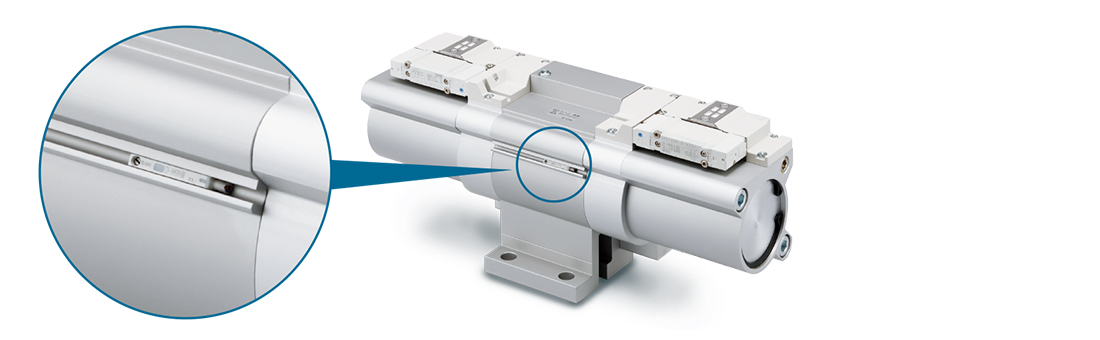

An auto switch can be mounted.
Operating cycle count is possible using an auto switch.
![](/assets/newproducts/en-jp/vbae/images/05.jpg)

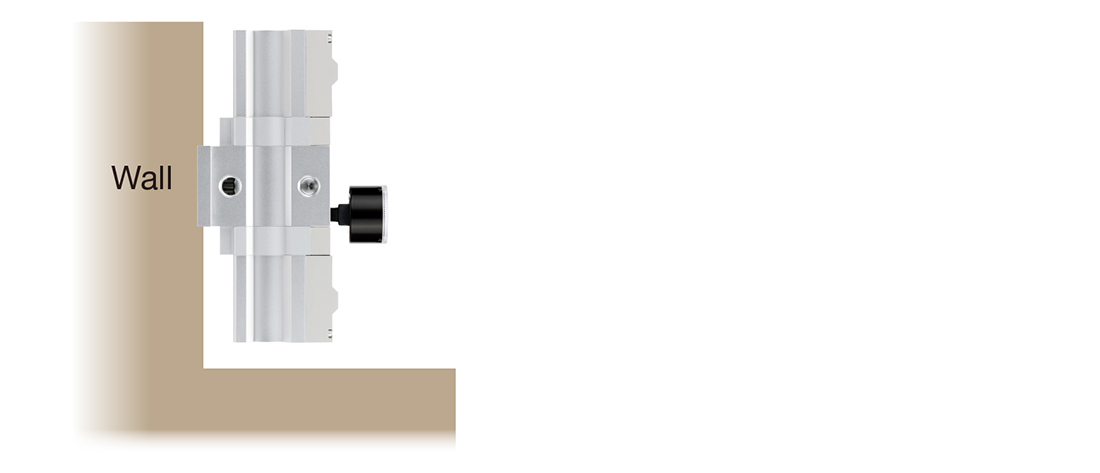

Compatible with vertical and horizontal installation
Improved mounting flexibility
![](/assets/newproducts/en-jp/vbae/images/06.jpg)
Mounting interchangeability with the existing model (VBA series)

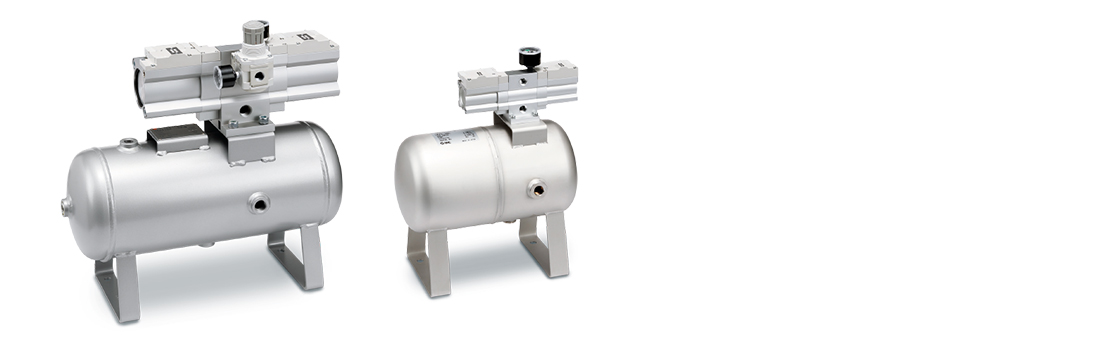

Can be mounted to an air tank. (VBAT series)
![](/assets/newproducts/en-jp/vbae/images/07.jpg)

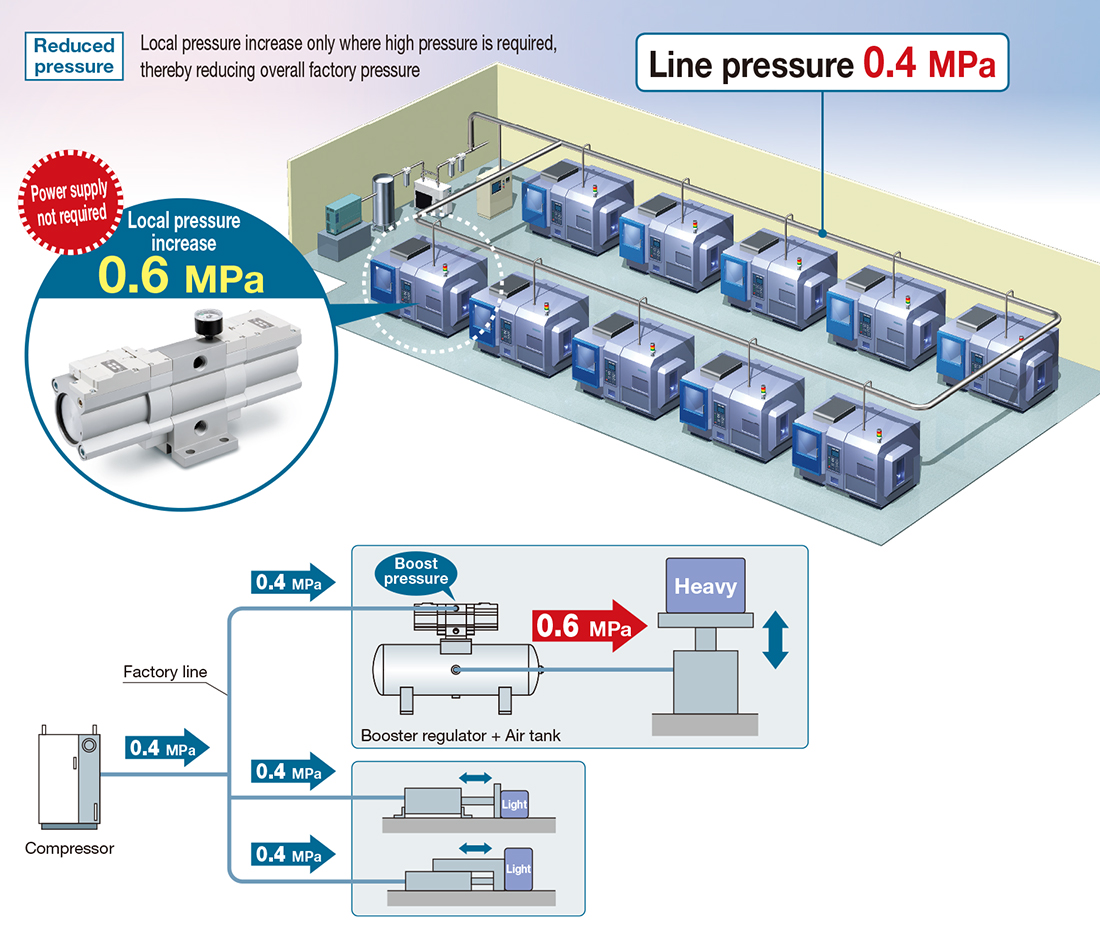

Proposal for reducing pressure
![](/assets/newproducts/en-jp/vbae/images/08.jpg)

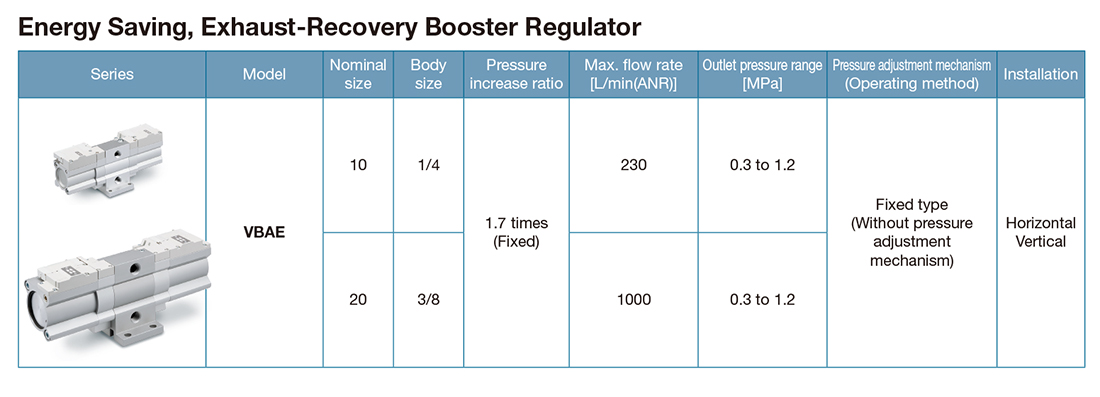

Series Variations
![](/assets/newproducts/en-jp/vbae/images/09.jpg)
