New Products：Pin Clamp Cylinder Lateral Compact Type C(L)KQ32-X3445
New Product Information
Pin Clamp Cylinder Lateral Compact Type C(L)KQ32-X3445
New
Updated Dec-24

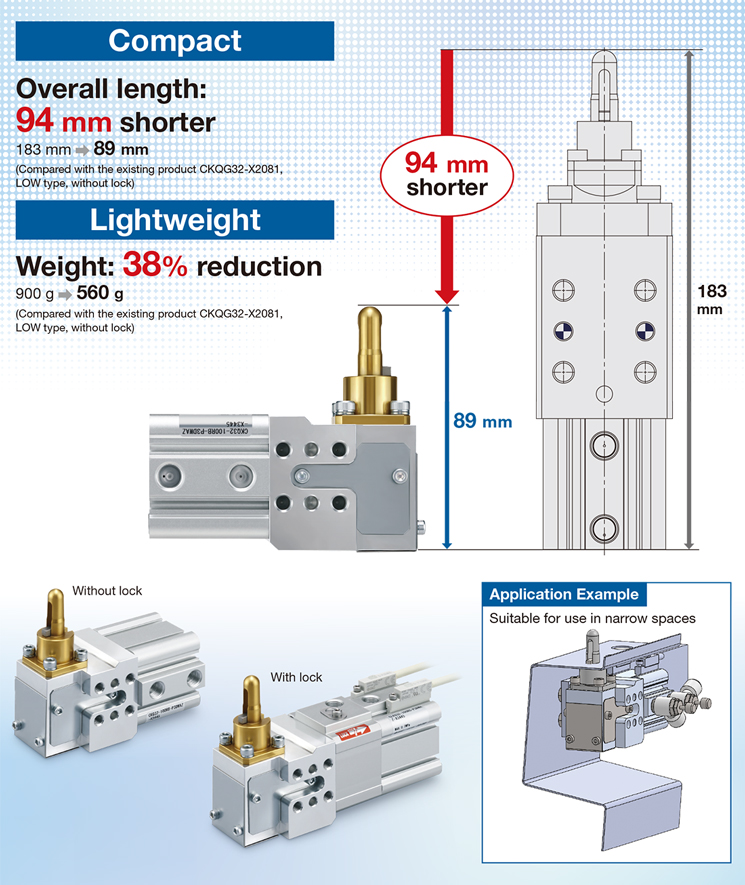

- Lateral Compact Type
- Compact: Overall length: 94 mm shorter (183mm→89mm)∗
- Lightweight: Weight: 38% reduction (900g→560g)∗
∗Compared with the existing product CKQG32-X2081, LOW type, without lock - Lock mechanism to prevent the dropping of workpieces during emergency stops
- Various clamp arm positions and port positions are available.
- Mountable on 2 surfaces
Product Features
Lateral Compact Type

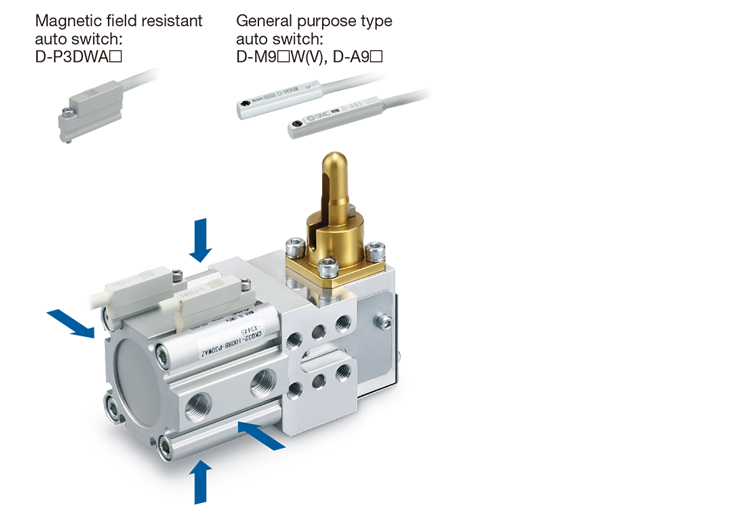

Auto switches are mountable on 4 surfaces.
Lock mechanism to prevent the dropping of workpieces during emergency stops

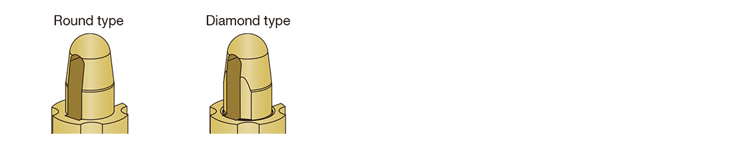

Guide pin shape: Round type/Diamond type
Fine adjustment of the clamping height is possible with shims. (Option)
∗ The clamping force changes depending on the clamping height. (Refer to Graph 1, “Relationship Between Clamping Height and Clamping Force,” for details.)

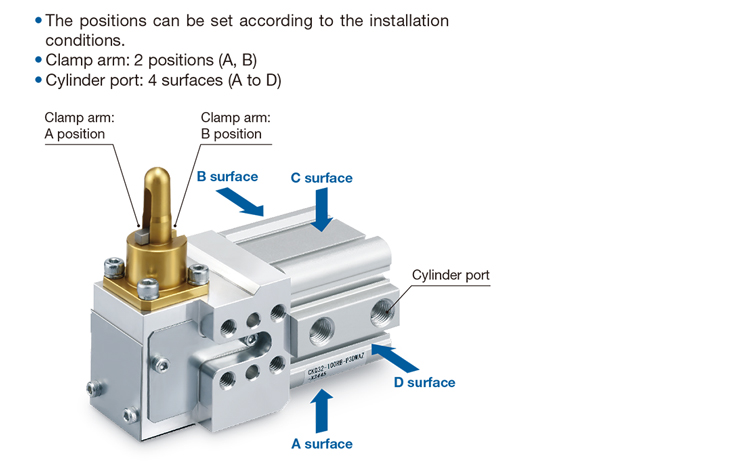

Various clamp arm positions and port positions are available.

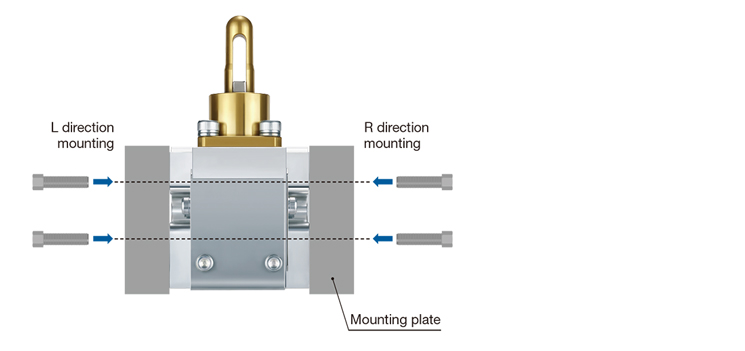

Mountable on 2 surfaces
