New Products:Vacuum Pad/Bowl Shape with Non-slip Feature ZP3M Series
New Product Information
Vacuum Pad/Bowl Shape with Non-slip Feature ZP3M Series
![](/assets/newproducts/en-jp/images/prod/zp3m-r.jpg)
![](/assets/newproducts/en-jp/images/mark/rohs.jpg)
Updated Dec-23
- A bowl bellows shape has been added. [New]
- Non-slip special ribs
Diagonal ribs are radially arranged to secure the gripping force in all directions.
・Prevents workpiece slippage
・Secure adsorbing and transferring are possible. - Bowl shape with excellent flexibility
Curved workpieces can also be adsorbed.
The pad follows the workpiece shape, making stable adsorption possible. - Horizontal holding force: 231 N (Pad diameter ø80)
- Suitable for high-temperature workpieces (200°C)
- Material: FS61 (Fluoro-based rubber) improves abrasion resistance
∗ More than twice the abrasion resistance of SMC's urethane pads - Suitable for workpieces with oil film
As oil is ejected to the grooves between special ribs, the lateral slipping of workpiece can be suppressed even on a steel plate with oil film.
Product Features

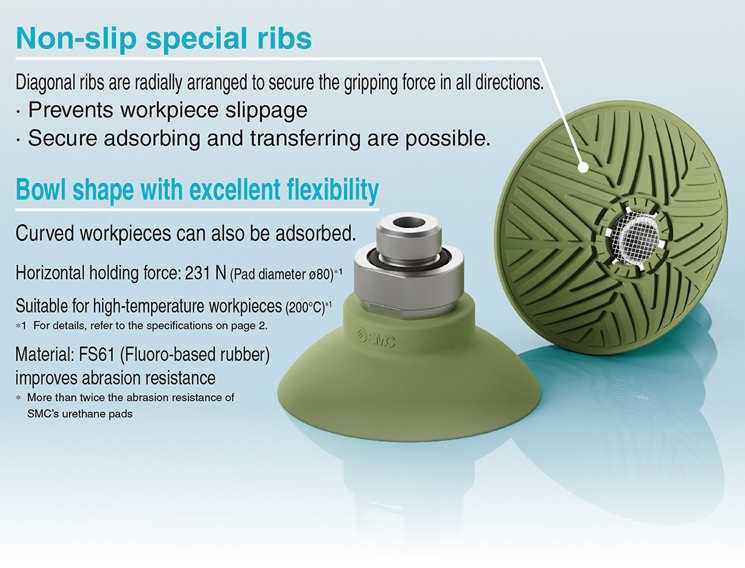

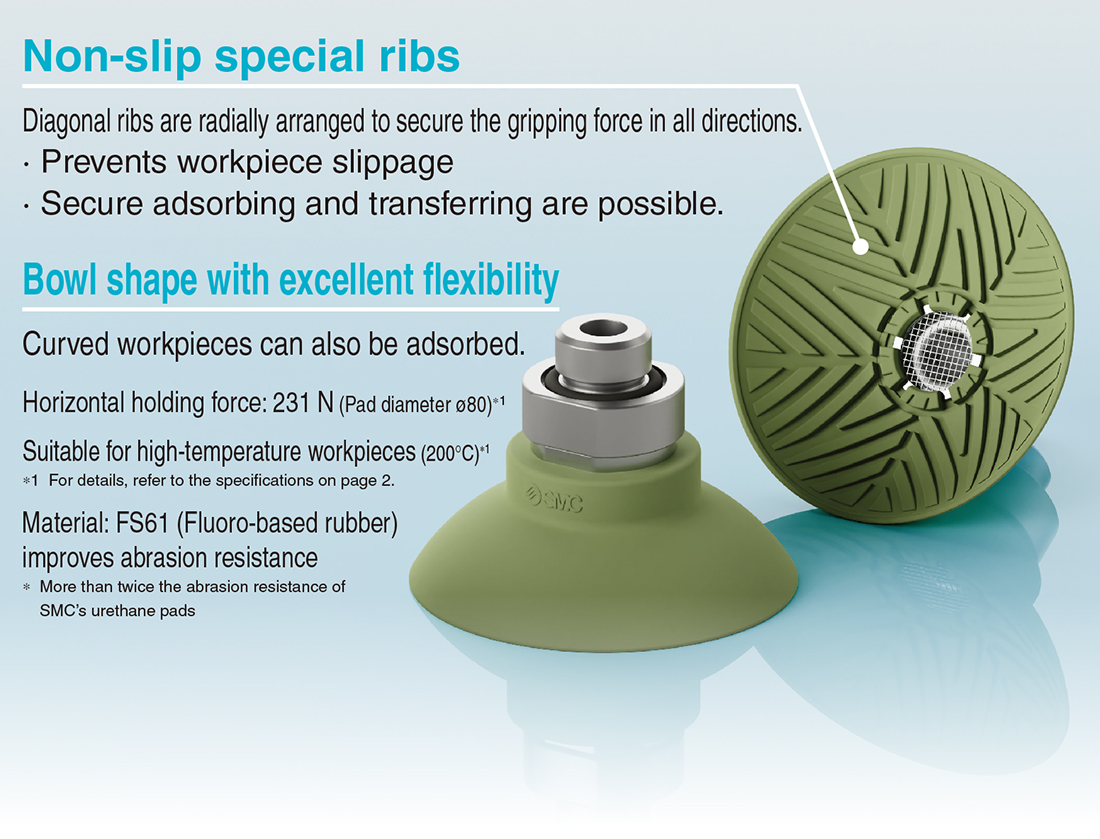

Non-slip special ribs
Diagonal ribs are radially arranged to secure the gripping force in all directions.
・Prevents workpiece slippage
・Secure adsorbing and transferring are possible.
![](/assets/newproducts/en-jp/zp3m/images/01-r.jpg)
Suitable for workpieces with oil film
As oil is ejected to the grooves between special ribs, the lateral slipping of workpiece can be suppressed even on a steel plate with oil film.
![](/assets/newproducts/en-jp/zp3m/images/02.jpg)
The bowl shape can handle curved workpieces.
The pad follows the workpiece shape, making stable adsorption possible.
![](/assets/newproducts/en-jp/zp3m/images/03.jpg)
Mesh filter (Option)

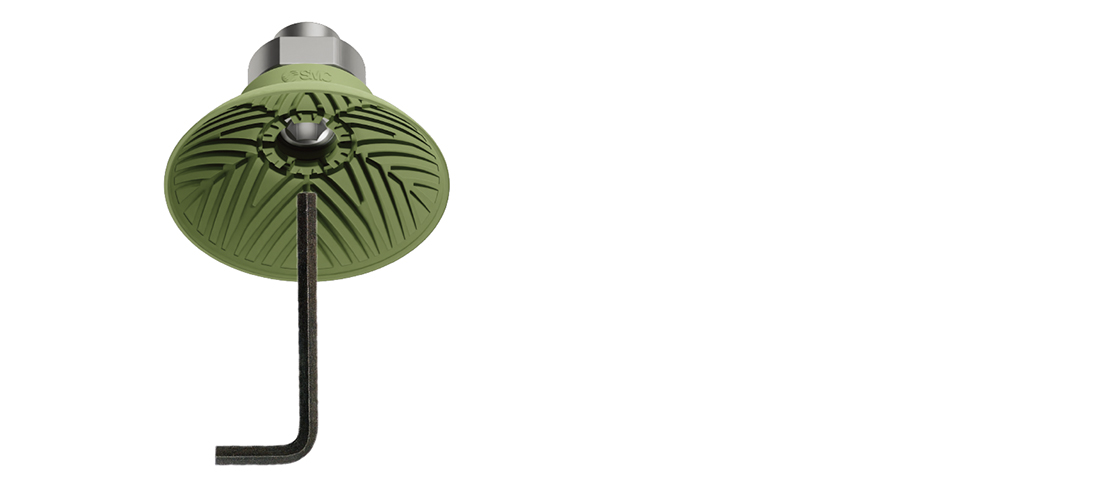

![](/assets/newproducts/en-jp/zp3m/images/04.jpg)
Installation from below is possible.
![](/assets/newproducts/en-jp/zp3m/images/05.jpg)
Insert-molded pad
Prevents the pad from falling out of the adapter
A bowl bellows shape has been added. New
![](/assets/newproducts/en-jp/zp3m/images/07.jpg)

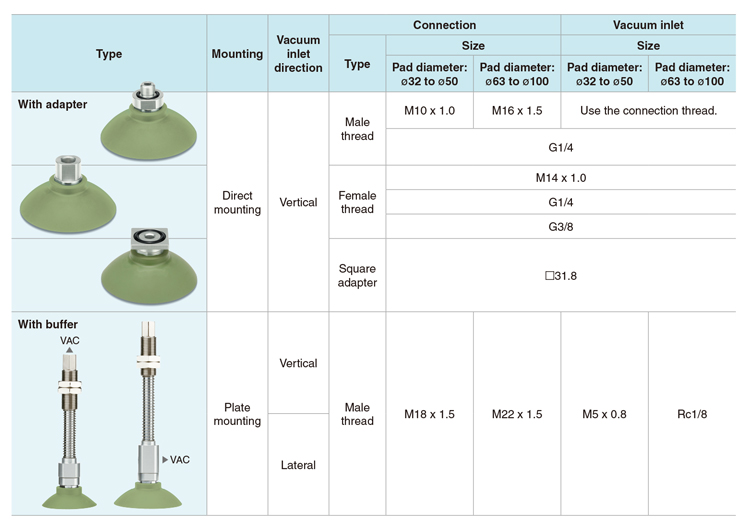

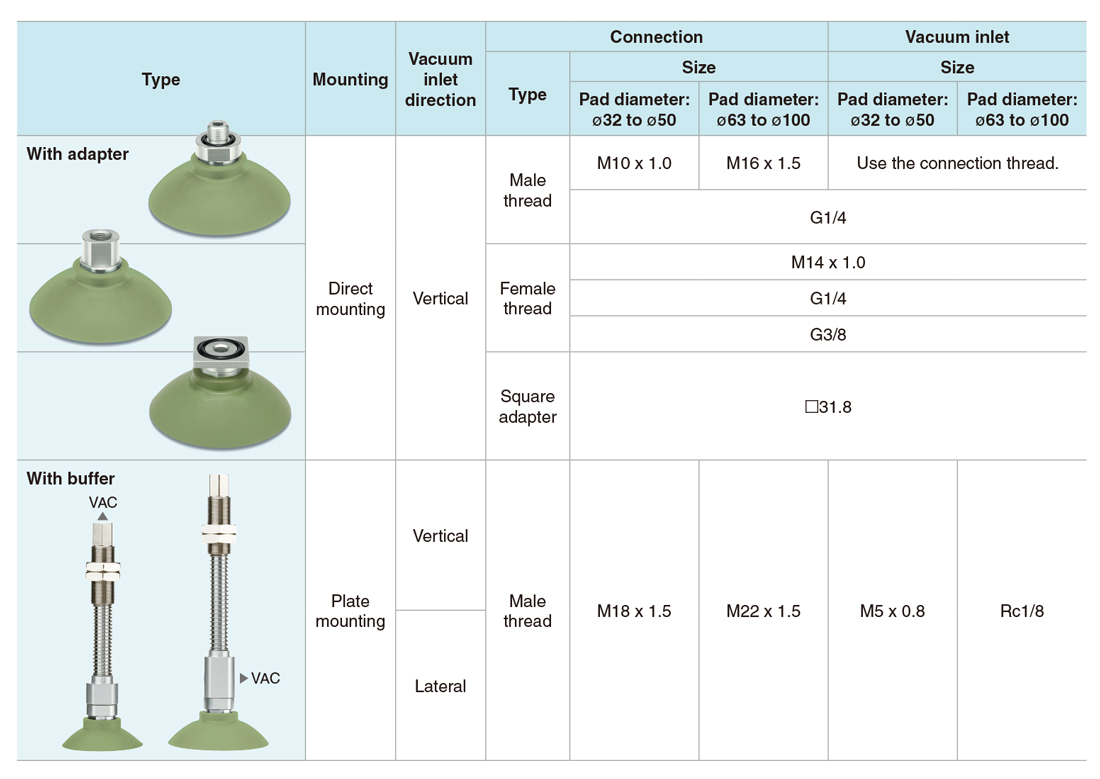

Variations
![](/assets/newproducts/en-jp/zp3m/images/06-r.jpg)
