New Products:Compact Slide ø6, ø10, ø16, ø20 MXH2 Series
New Product Information
Compact Slide ø6, ø10, ø16, ø20, ø25 MXH2 Series
New
![](/assets/newproducts/en-jp/images/prod/mxh2.jpg)
![](/assets/newproducts/en-jp/images/mark/rohs.jpg)
Updated Apr-24
- Size ø25 have been added. [New]
- Same width as size ø20

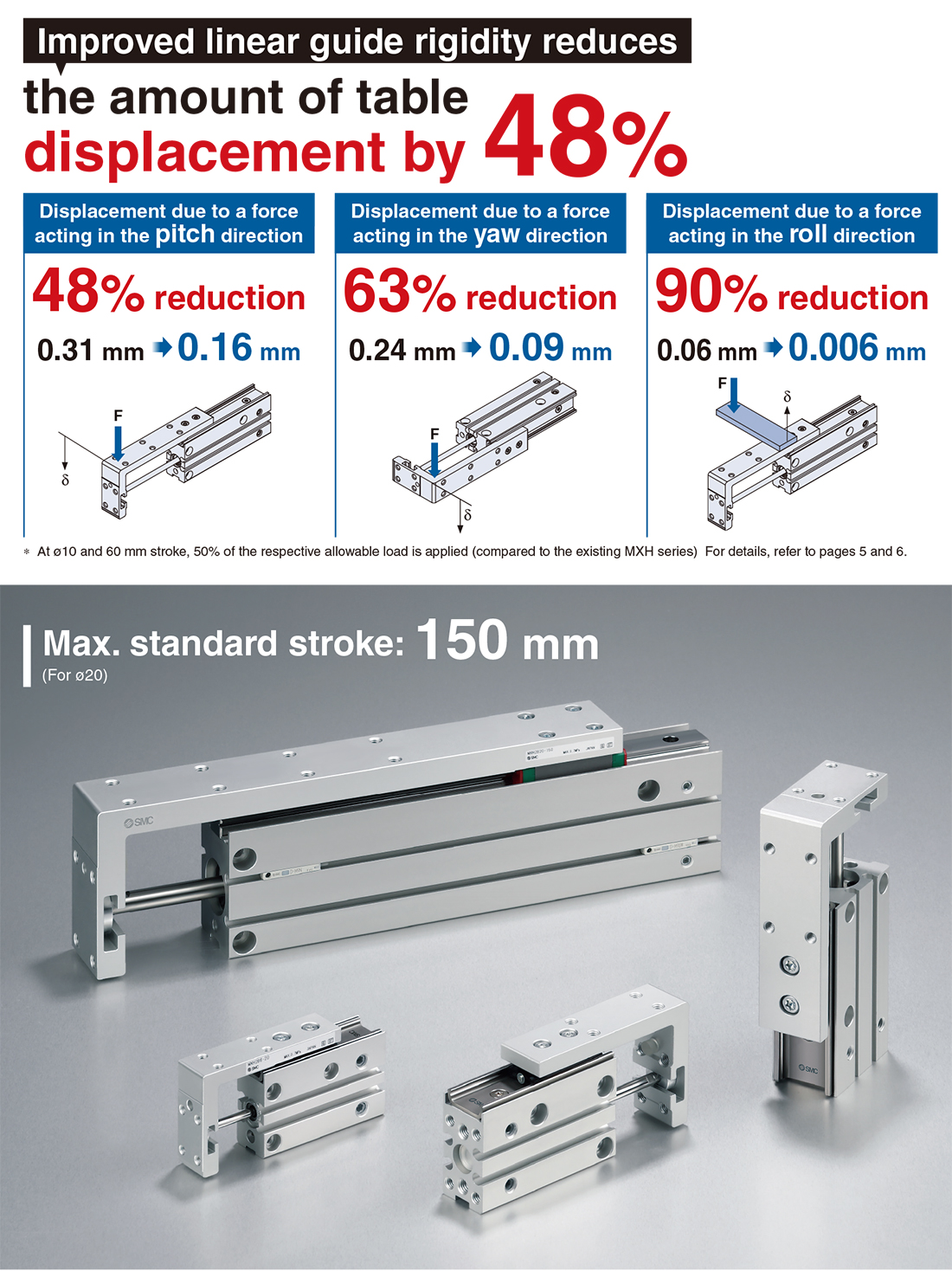

Allowable moment: Max. 1.4 times greater than that of size ø20 - Improved linear guide rigidity reduces the amount of table displacement by 48%
Displacement due to a force acting in the pitch direction: 48% reduction (0.31 mm→0.16 mm)
Displacement due to a force acting in the yaw direction: 63% reduction (0.24 mm→0.09 mm)
Displacement due to a force acting in the roll direction: 90% reduction (0.06 mm→0.006 mm) - Max. standard stroke: 150 mm (For ø20, ø25)[New]
- Weight: Max. 6% reduction (194 g→182 g)
- Dimensions for mounting and length are equivalent to the existing MXH series.
Product Features
Improved linear guide rigidity
![](/assets/newproducts/en-jp/mxh2/images/01-r.jpg)
High Rigidity Achieved
Increased rigidity by extending the guide length of the linear guide.
Significantly reduced table displacement when a moment is applied.
![](/assets/newproducts/en-jp/mxh2/images/02.jpg)
Weight: Max. 6% reduction (194 g → 182 g)
![](/assets/newproducts/en-jp/mxh2/images/03.jpg)

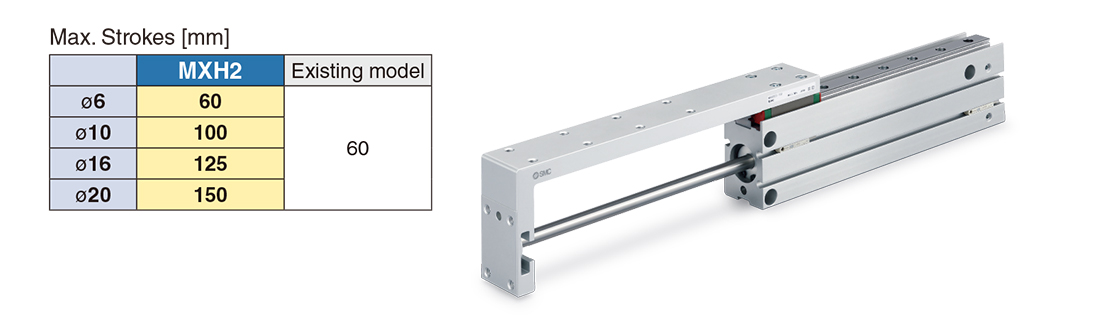

Max. standard stroke length has increased. (Max. 150 mm)
(Existing product: Max. 60 mm)
![](/assets/newproducts/en-jp/mxh2/images/04-r.jpg)
Piping is possible in 3 directions.
If changing the port location, “Made to Order” model (-XC3 □ ) is available.
![](/assets/newproducts/en-jp/mxh2/images/05.jpg)
Bumper
A bumper is also installed inside the cylinder.
![](/assets/newproducts/en-jp/mxh2/images/06.jpg)
Mounting is possible in 4 directions.
![](/assets/newproducts/en-jp/mxh2/images/07.jpg)
2 mounting options for workpieces are available.
![](/assets/newproducts/en-jp/mxh2/images/08.jpg)
Dimensions for mounting and length are equivalent to the existing MXH series.
Dimensions including workpiece mounting dimensions and cylinder mounting dimensions are the same as the existing model.

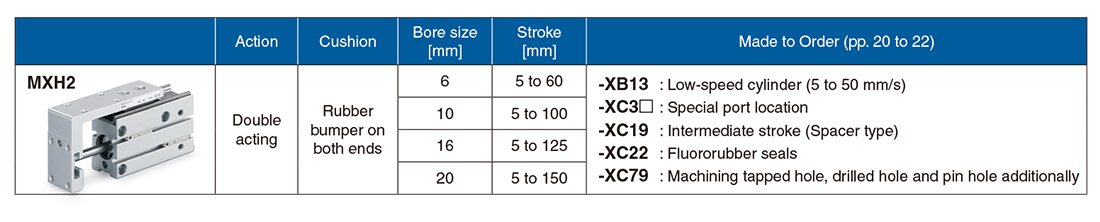

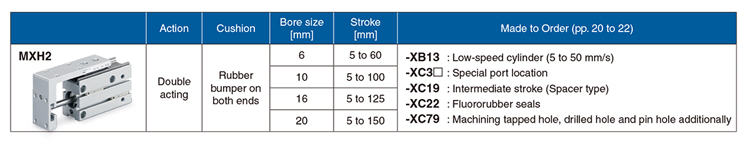

Variations
![](/assets/newproducts/en-jp/mxh2/images/09-r.jpg)
