New Products：Angle Seat Valve / Air Operated Type JSB Series
New Product Information
Angle Seat Valve / Air Operated Type JSB Series
Updated Mar-23

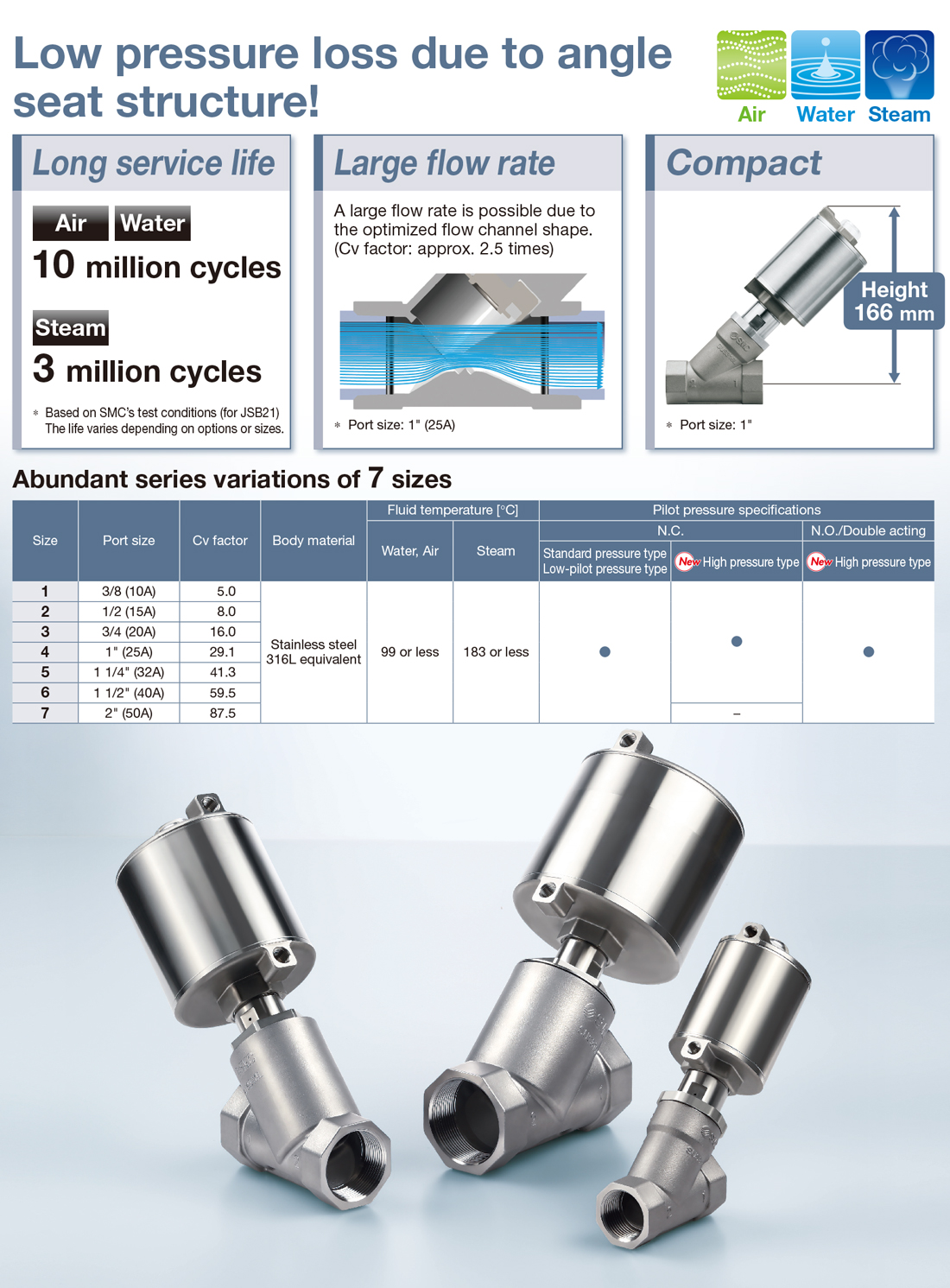

- Low pressure loss due to angle seat structure!
- Long service life: 10 million cycles (Air, Water), 3 million cycles (Steam)
- Large flow rate
A large flow rate is possible due to the optimized flow channel shape. (Cv factor: approx. 2.5 times) - Compact: Height 166 mm (Port size: 1")
- Abundant series variations of 7 sizes
- All-in-One (Stainless steel 316L equivalent)
Air, Water, Steam
Product Features

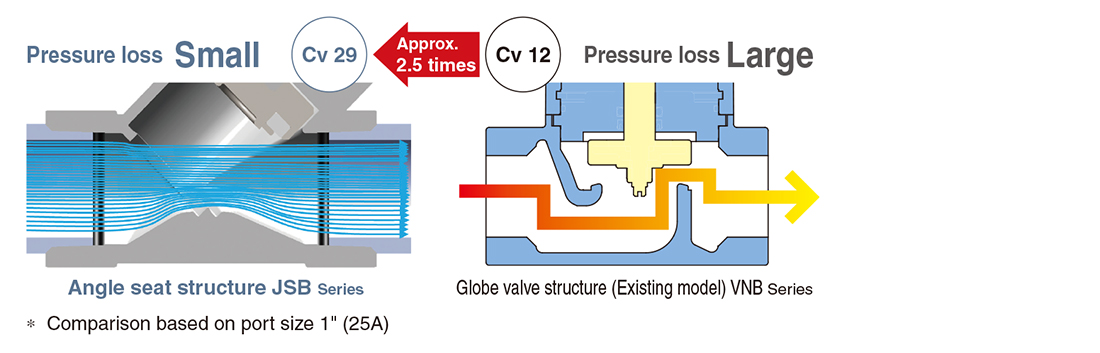

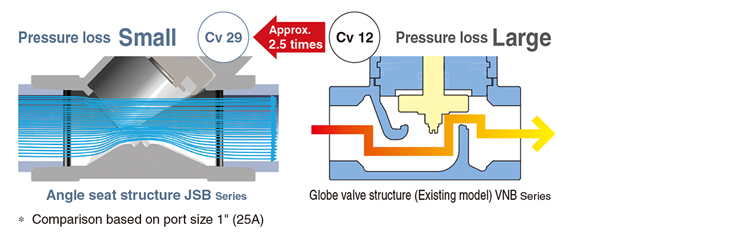

Low pressure loss due to angle seat structure!
Low pressure loss, Large flow rate
Low leakage

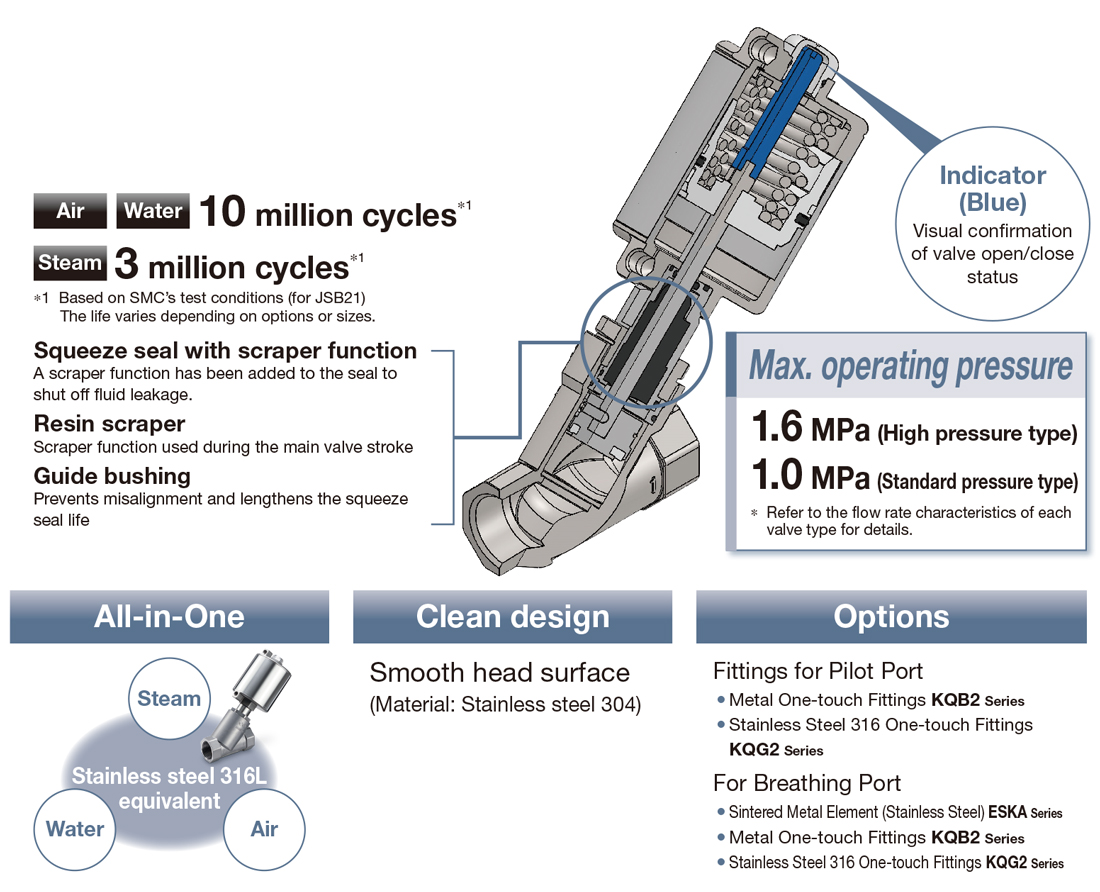

Long service life

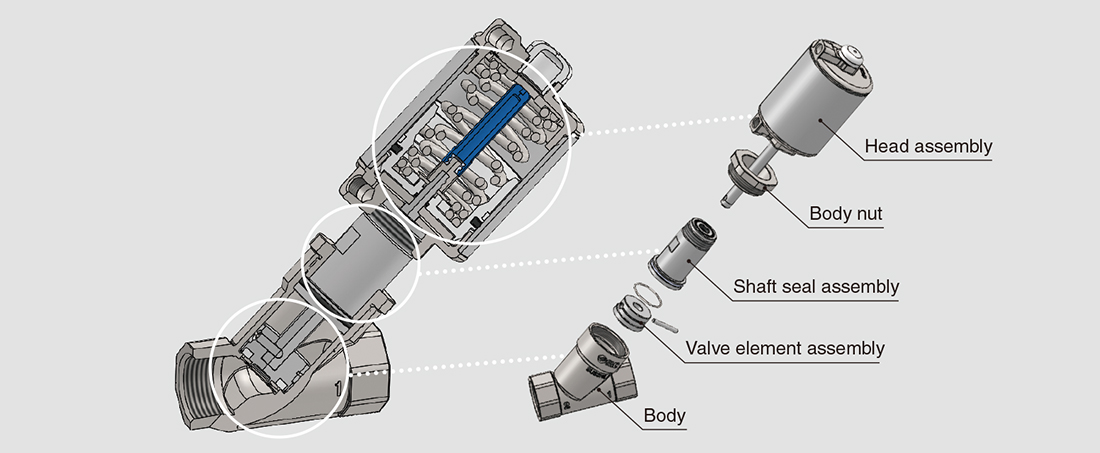

Easy maintenance
Each part can be replaced.
