New Products:NAAMS Standards Compliant Power Clamp Cylinder CKZ5N Series
New Product Information
NAAMS Standards Compliant
Power Clamp Cylinder CKZ5N Series
![](/assets/newproducts/en-jp/images/prod/ckz5n.jpg)
![](/assets/newproducts/en-jp/images/mark/rohs.jpg)
Updated Sep-22
- A new structure has achieved downsizing.
Overall length reduced by 49 mm max.
Depth reduced by 17.3 mm max. (Interchangeable with existing product CKZ3N in terms of installation) - Weight reduced by up to 27%
Aluminum body with greatly reduced weight - High clamping force 4000 N (ø63, Arm length: 100 mm, 0.5 MPa)
- Manual lock release operability has been improved.
- Spatter-proof construction
Fully enclosed structure by means of an aluminum body
Product Features
A new structure has achieved downsizing.
Overall length reduced by 49 mm max.
High clamping force 4000 N (ø63, Arm length: 100 mm, 0.5 MPa)
![](/assets/newproducts/en-jp/ckz5n/images/01.jpg)

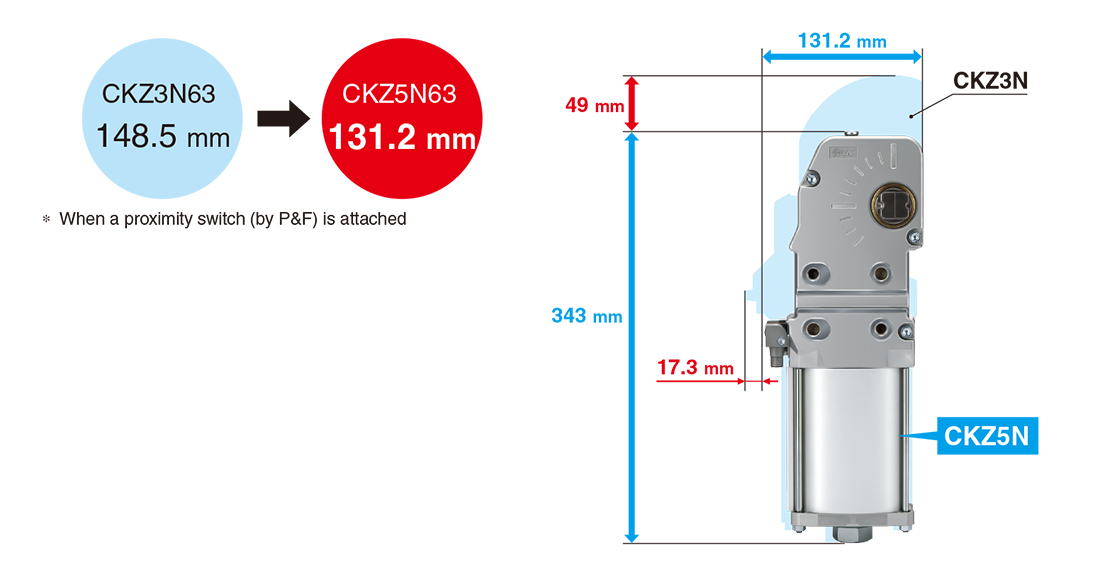

Depth reduced by 17.3 mm max.
![](/assets/newproducts/en-jp/ckz5n/images/02.jpg)

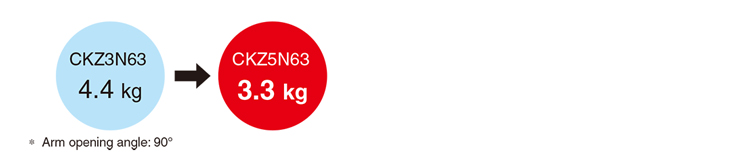

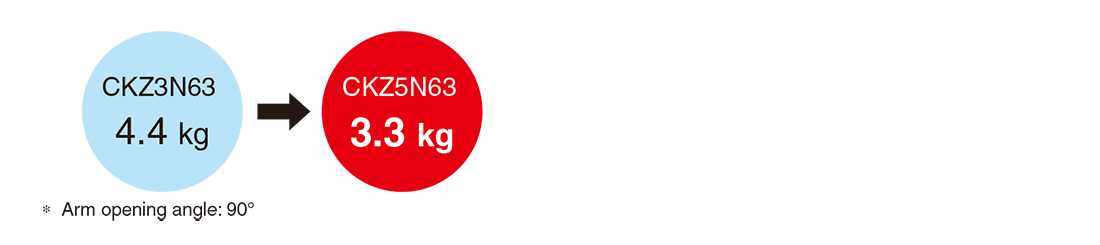

Weight reduced by up to 27%
Aluminum body with greatly reduced weight
![](/assets/newproducts/en-jp/ckz5n/images/03.jpg)
Manual lock release operability has been improved.
![](/assets/newproducts/en-jp/ckz5n/images/04.jpg)
Spatter-proof construction
Fully enclosed structure by means of an aluminum body
