New Products：Compact Guide Cylinder ø16, ø32 MGPK Series
New Product Information
Compact Guide Cylinder ø12, ø16, ø20, ø25, ø32, ø40, ø50 MGPK Series
Updated Aug-24
- A type with an air cushion has been added for
bore sizes ø12 to ø50. [New] - Symmetrical port positioning has been standardized. [New]
- Volume: Max. 28% reduction（538cm3 → 390cm3）
- Weight: Max. 41% reduction (0.32 kg → 0.19 kg)

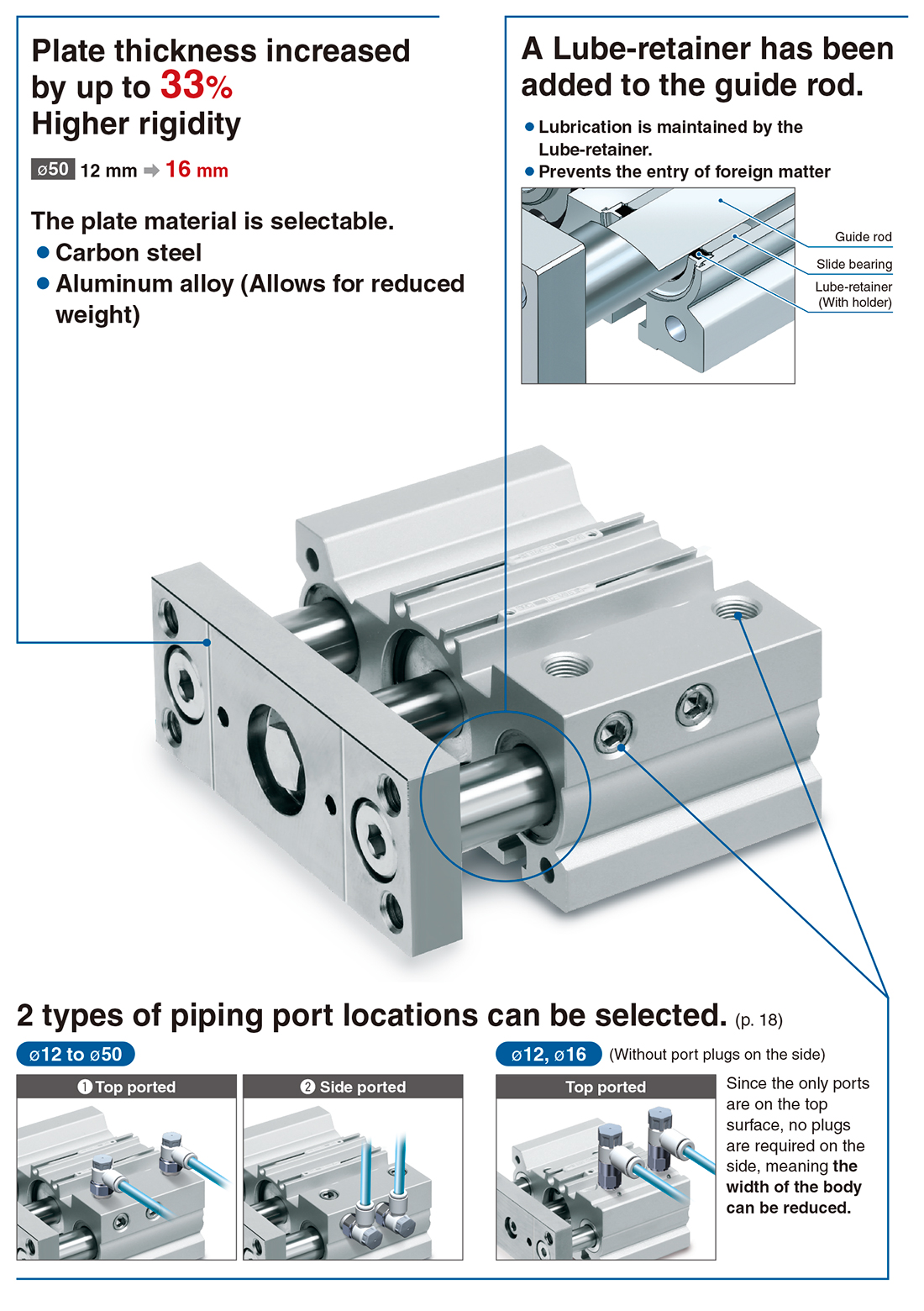

- High rigidity: Optimized configuration allows for compact body with high rigidity
Plate thickness increased by up to 33%, Higher rigidity - Lube-retainer is added to the guide rod.
Product Features
Volume: Max. 28% reduction, Weight: Max. 41% reduction
Features
4 types of mounting are possible.
Small auto switches can be directly mounted on 2 surfaces. D-M9□ D-A9□
A type with an air cushion has been added. New
Compact Guide Cylinder Variations
