SMC- Battery-less Absolute Encoder Type

Electric Actuators » Battery-less Absolute Encoder Type - Product Features_LEKFS

■Circular arc grooves allow for high rigidity and high precision.

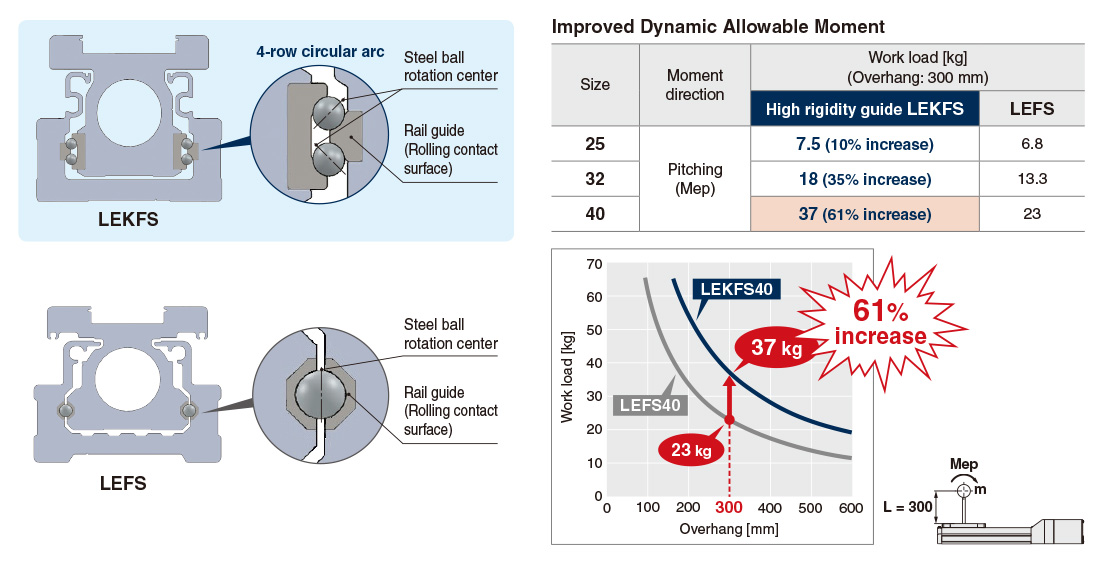

■With a 4-row circular arc on each side for high rigidity and high precision (zero clearance)

・Improved moment resistance

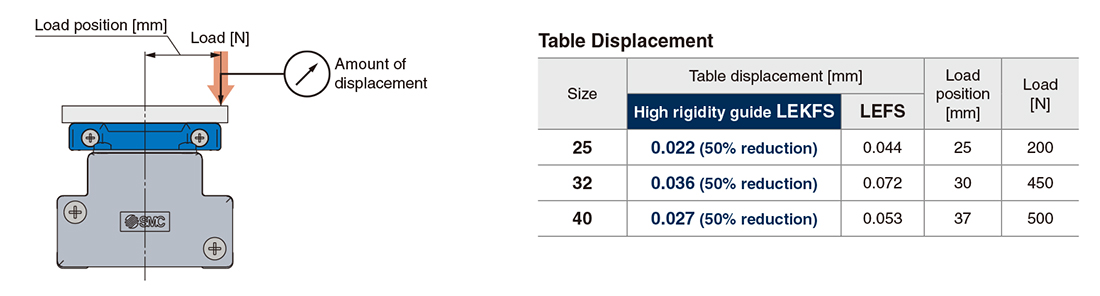

・Table displacement amount reduced to 1/2

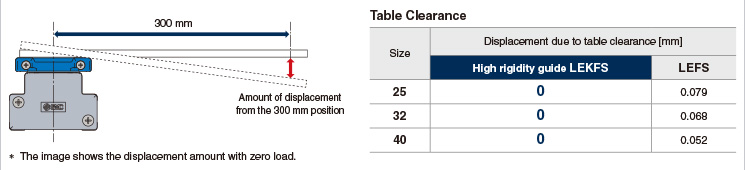

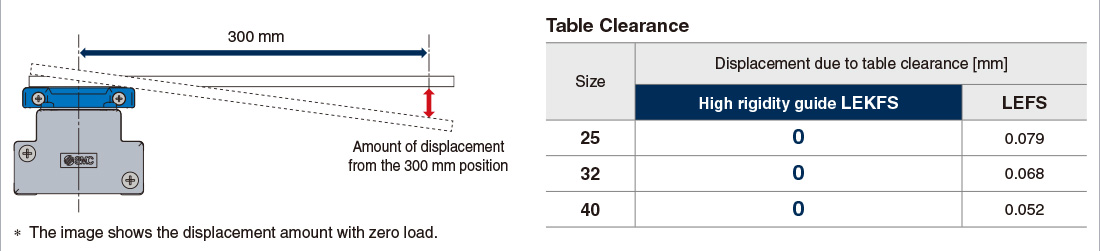

・Zero table clearance

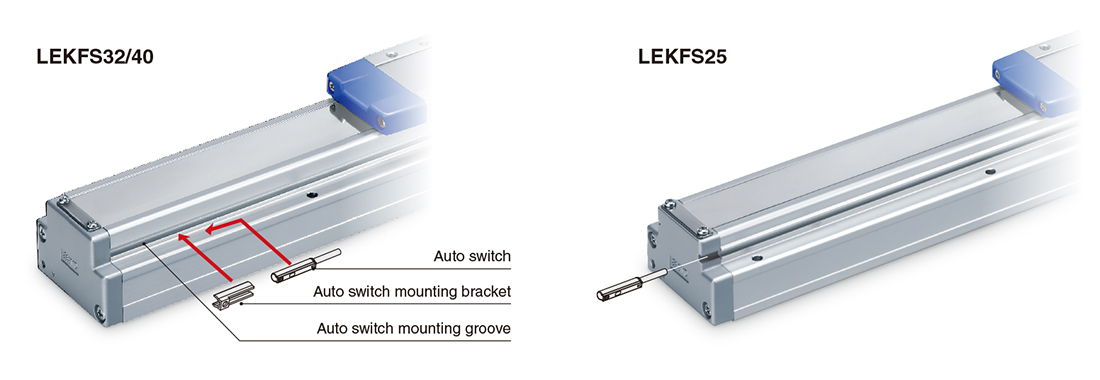

■Auto switches are mountable.

Allows for position detection of the table throughout the stroke

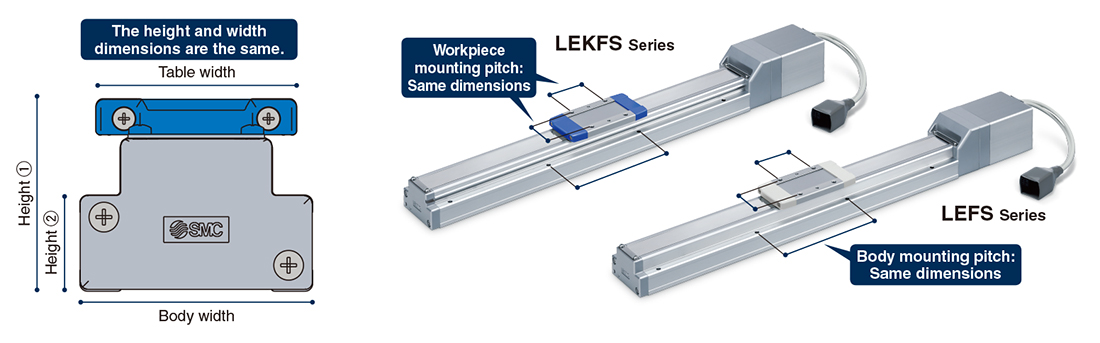

■Same dimensions as the LEF/Complete mounting compatibility is ensured.

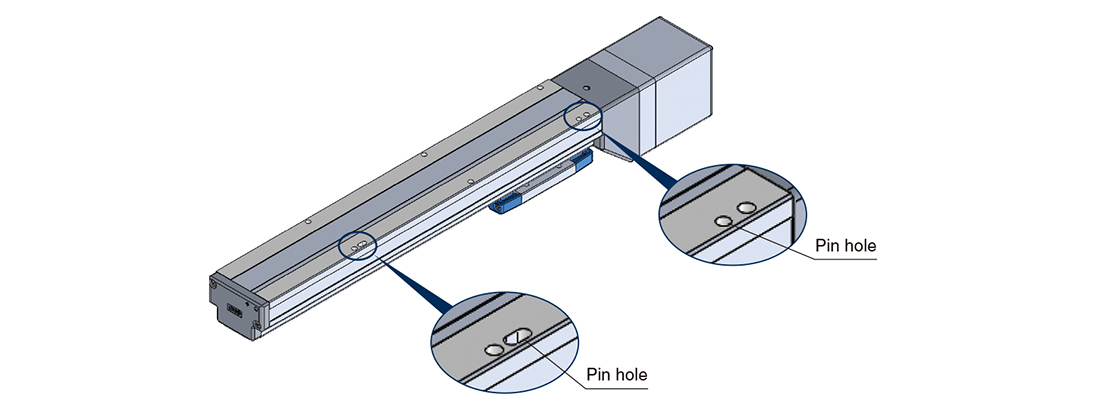

■The body bottom positioning pin holes have been standardized.

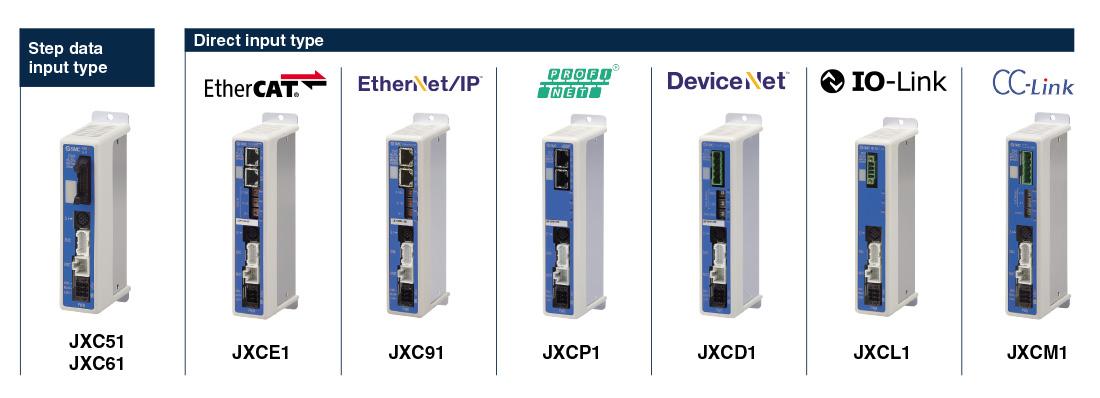

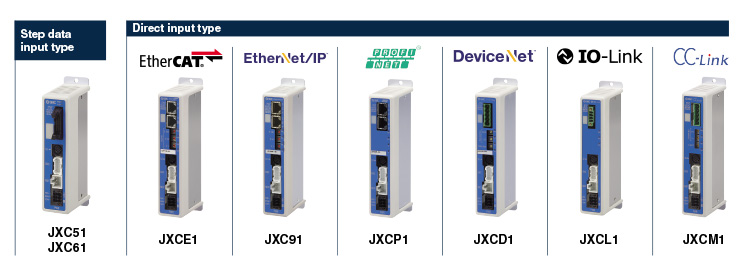

■Compatible Controllers

Battery-less Absolute Type (Step Motor 24 VDC)
Step Motor Controller JXC□ Series

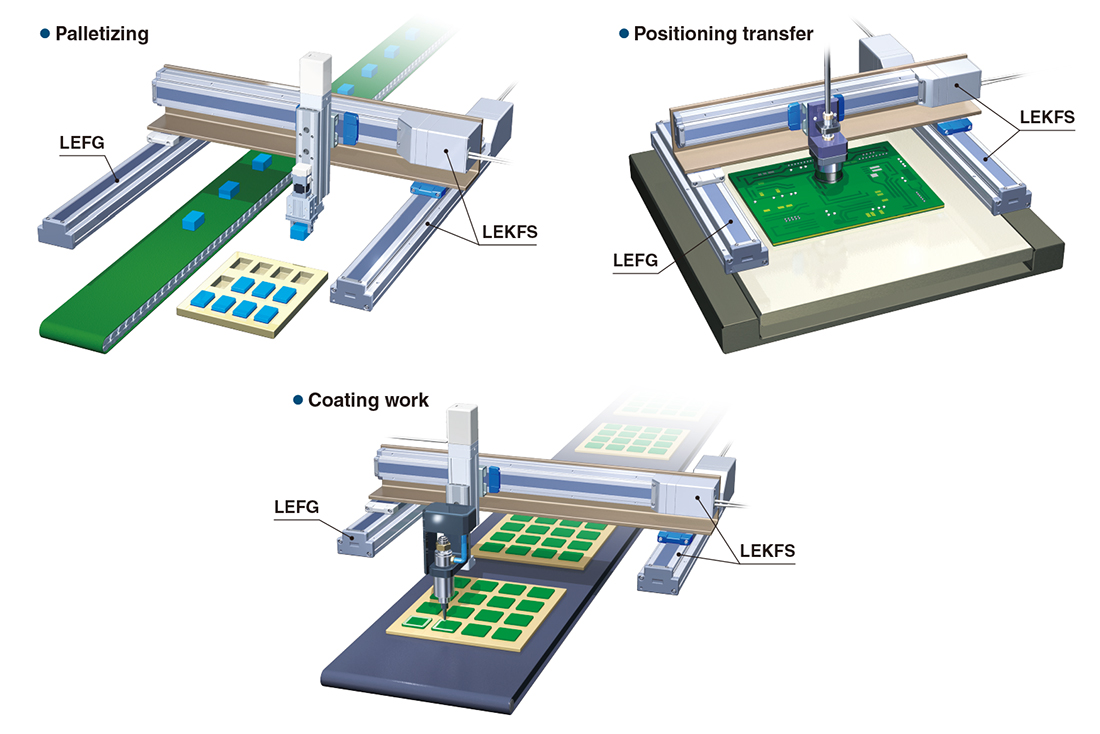

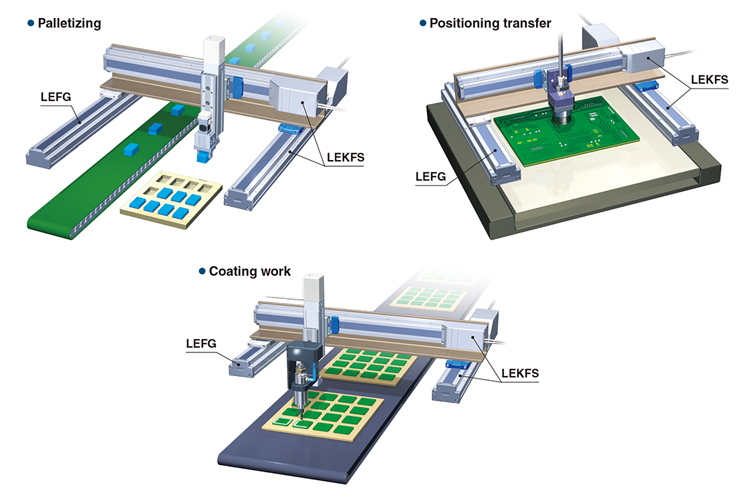

■Application Examples
