New Products
2-Color Display
Digital Flow Switch
PF2M7(-L) Series Updated Jul-21
Digital Flow Switch
PF2M7(-L) Series Updated Jul-21
- A 2 to 200 L/min flow range option has been added. [New]
- A rear ported type has been added. [New]
- A flow adjustment valve (0.05 to 5 L/min)
has been added. [New] - Dry air, N2, Ar, CO2
- A wide range of flow measurement is possible with 1 product.
Flow ratio 100:1, Smallest settable increment: 0.01 L/min - IO-Link compatible
- Improved resistance to moisture and foreign matter
- Compact, Lightweight
- Grease-free
Product Features

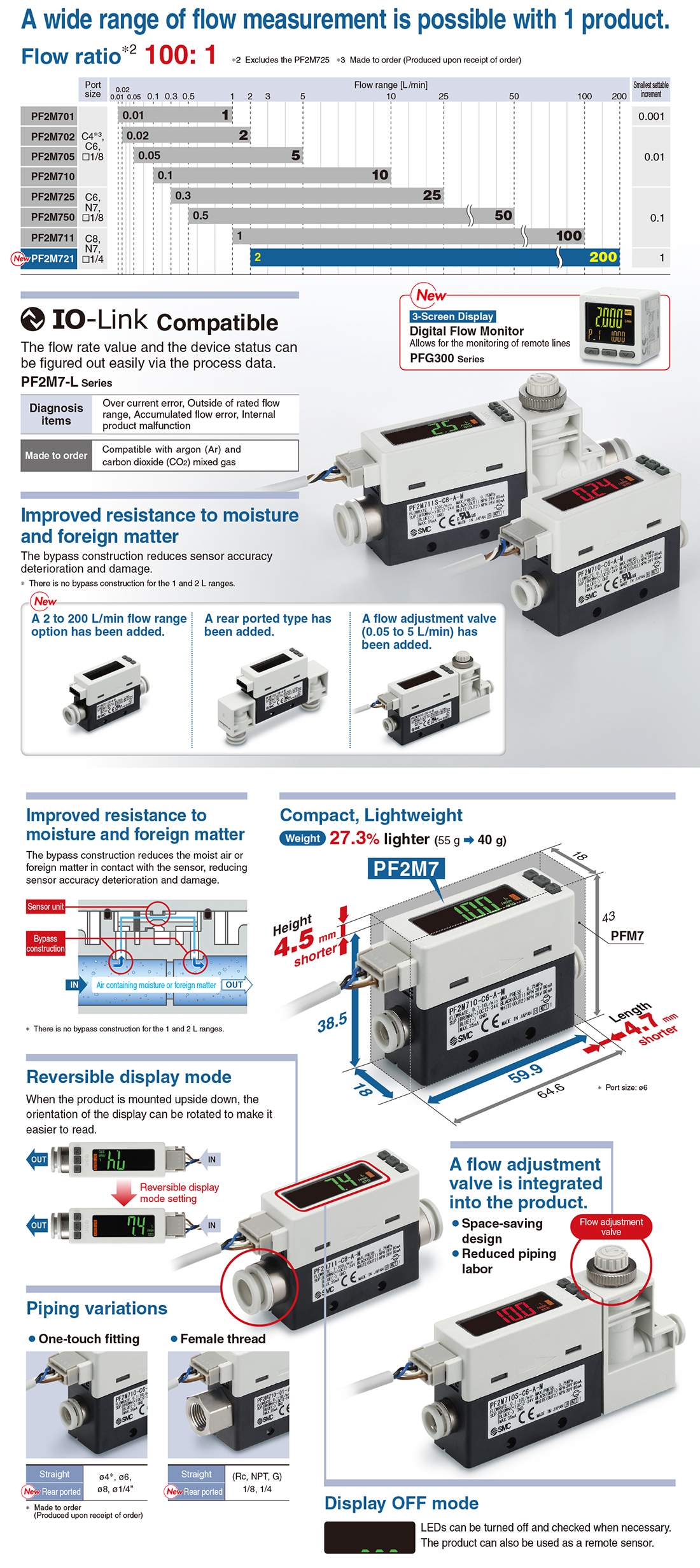

■A wide range of flow measurement is possible with 1 product.

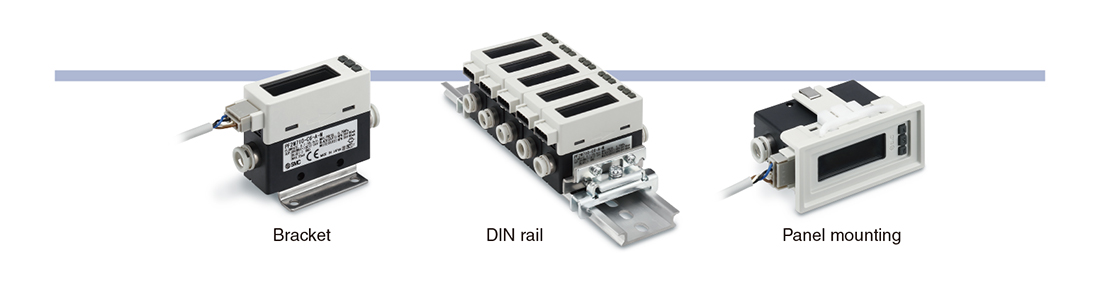

■Mounting variations
■The digital display allows for the visualization of the flow rate.

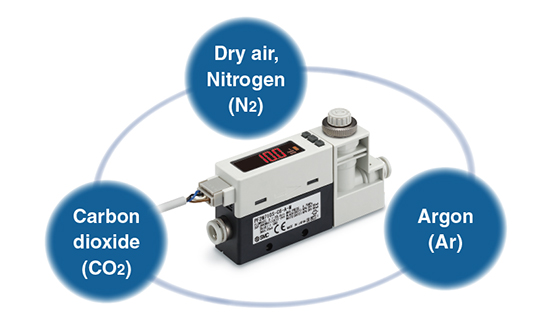

■Select a model according to the fluid to be used.

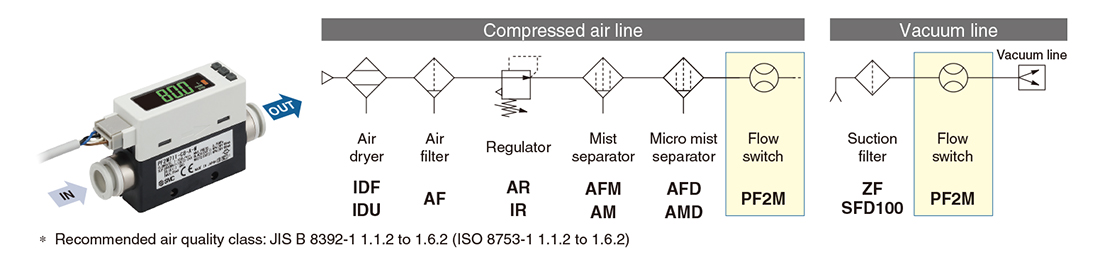

■Recommended pneumatic circuit examples
■Analog free span function
■Delay time setting
Can be set between 0 and 60 s
The delay time can be set according to the application.
■Grease-free
■Selectable analog output function
1 to 5 V or 0 to 10 V can be selected.
■Low current consumption: 35 mA＊ or less
＊ PFM7: 55 mA or less
■Power supply voltage: 12 to 24 V
* For the IO-Link device: 18 to 30 V
■Functions
■Select a digital flow switch to increase energy savings!
■Applications
■IO-Link Compatible PF2M7□□-□-L□-□□□
