New Products
IO-Link Compatible
3-Screen Display Digital Gap Checker
ISA3-L Series Updated May-19
3-Screen Display Digital Gap Checker
ISA3-L Series Updated May-19
- Monitoring the placement condition of the workpiece
Indic ate s failure / abnormality - Double sensor providing improved preventive and
predictive maintenance (IoT) based on IO-Link - Process data provides Displayed value, Outlet pressure and
Supply pressure value. - NPN/PNP Switch Function
- 3-Screen Display (Setting)
- Window Comparator Type
- Zero cut-off range can be changed.
Product Features
■Monitoring the placement condition of the workpiece Indic ate s failure / abnormality

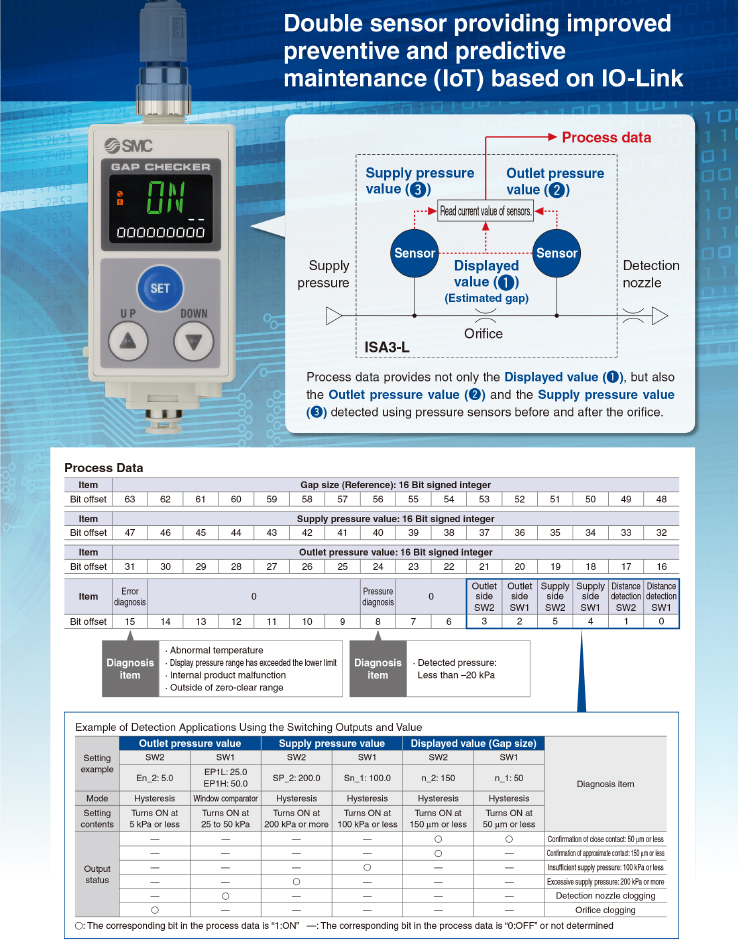

■Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link
Process data provides Displayed value , Outlet pressure and Supply pressure value .
Not only the displayed value, but also the pressure value (supply pressure, outlet pressure) which affect the detection can be transmitted in real time.
■IO-Link
IO-Link is an open communication interface technology between the sensor/actuator and the I/O terminal that is an international standard, IEC61131-9.
■NPN/PNP Switch Function
Both NPN and PNP are available.
■3-Screen Display (Setting)
■Window Comparator Type
The gap range is adjustable.
■Zero cut-off range can be changed.
The lower limit of the display/setting range has been extended.
■Sub display improved for ease of use
■3-Step Setting (Switch Point Change Mode)
■3-Screen Digital Display
■Rated Distance Range: 3 types are available.
■3 Setting Modes
Select the setting mode that best meets your needs.
■2 Outputs Type
■Improved Environmental Resistance
■Noise reduction, Energy saving, Measures against clogging
■Compact & Lightweight
■Space saving and man-hour reduction by centralized lead wires
■Keylock Function
■Piping Variations
■Mounting
■Manifold
■Application Examples
Detection of the table and pallet seating
Workpiece clamp detection
■Main Functions
