New Products
Modular Connection Type
Compressed Air Preparation Filter
AFF/AM/AMD Series Updated Aug-20
Compressed Air Preparation Filter
AFF/AM/AMD Series Updated Aug-20
- Compressed air purity class: ISO 8573
- Increased air flow capacity due to lower pressure drop which contributes to energy saving
Flow capacity: 14.5 m3/min (ANR) (Increased by up to 20% compared with the existing model)
Pressure drop: 5 kPa or less - Lightweight: Max. 52% lighter (10.5 kg → 5.0 kg)
Lighter body weight due to thinner stainless steel bowl - Space-saving design, Reduced piping labor!
The AFF series main line filter removes both water droplets and solid particles.
A separate filter for removing water droplets (water separator, AMG series) is not necessary any more.

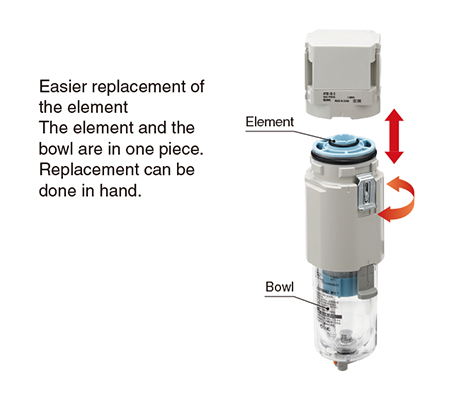

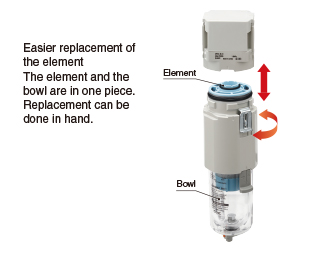

Space and piping work are reduced. - Easier replacement of the element
The stopper function prevents the bowl from falling.
Product Features

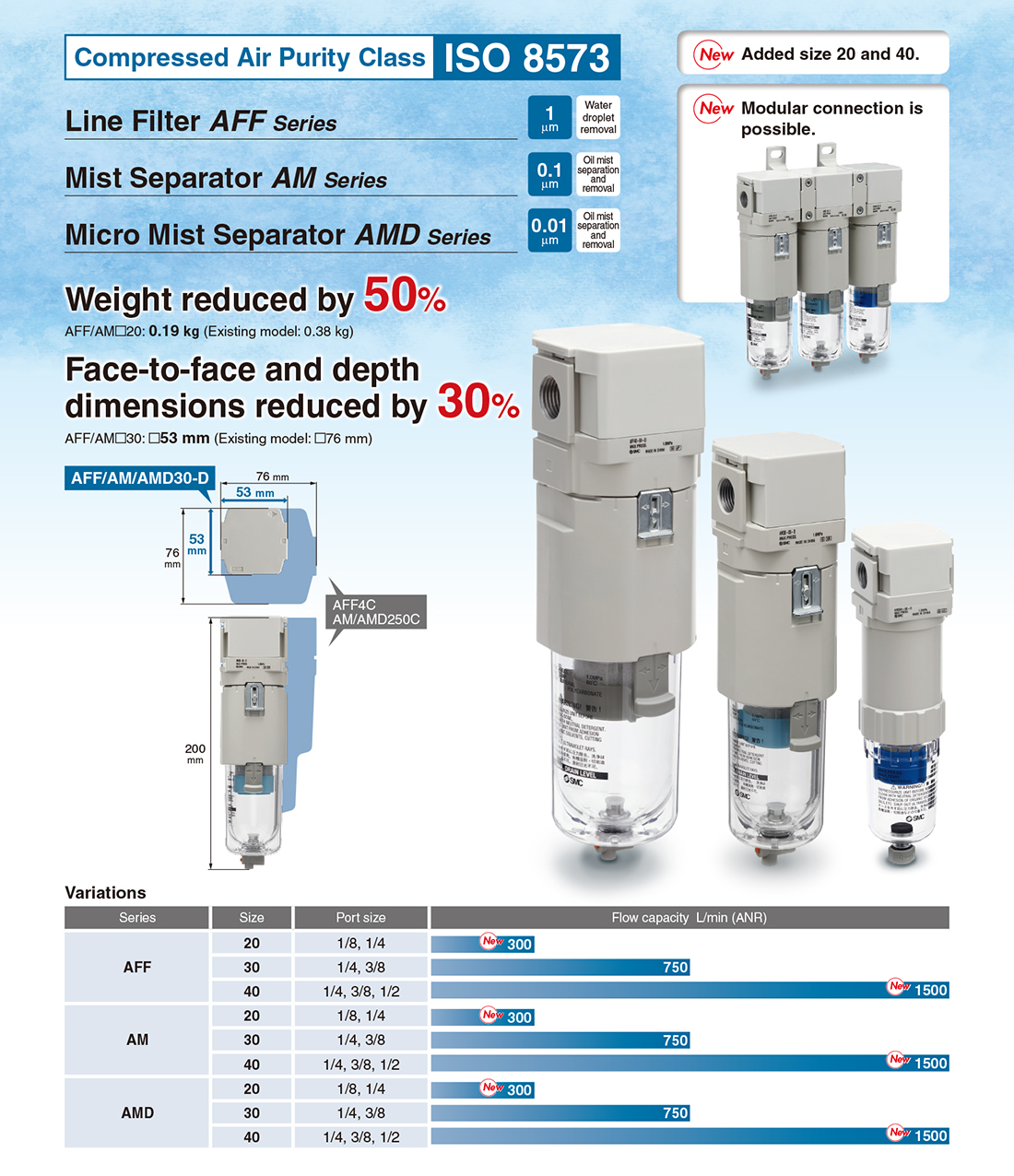

■Modular Connection Type Compressed Air Preparation Filter

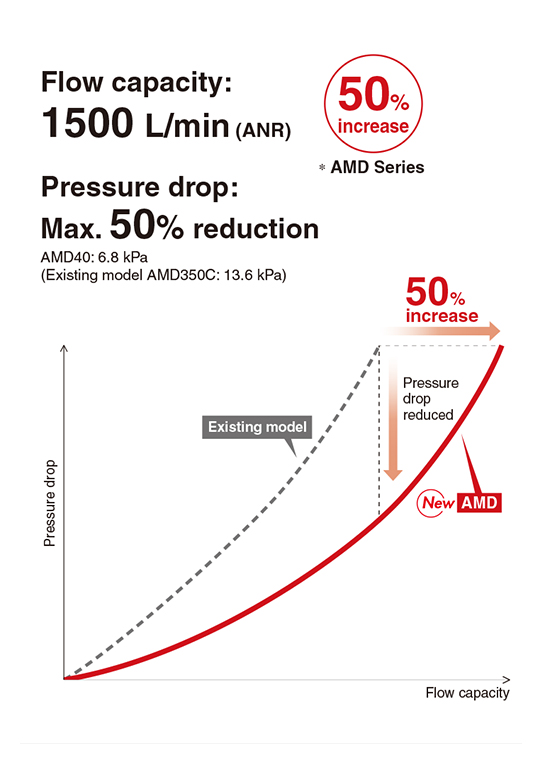

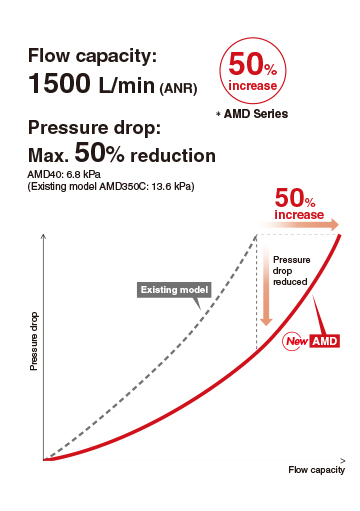

■Increased air flow capacity due to
lower pressurez drop which
contributes to energy saving
lower pressurez drop which
contributes to energy saving

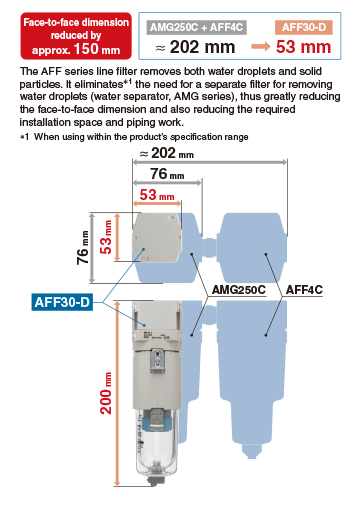

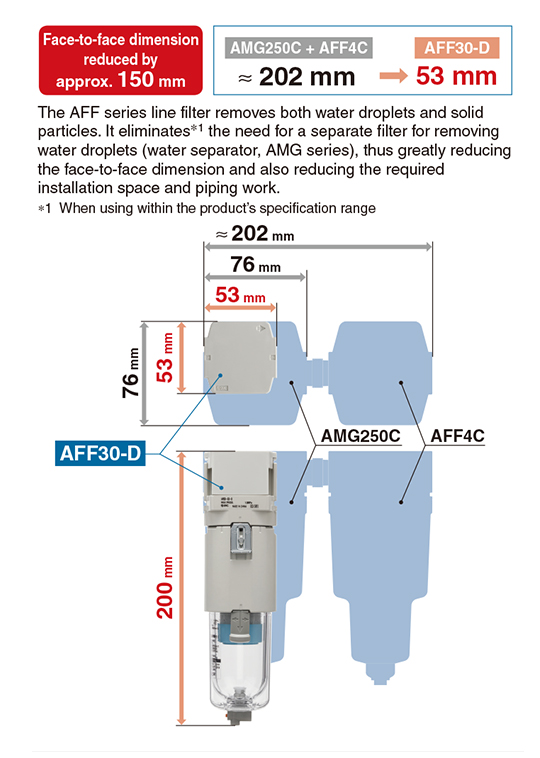

■Space-saving design, Reduced
piping labor!
piping labor!

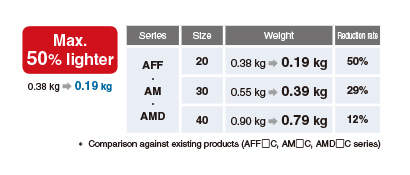

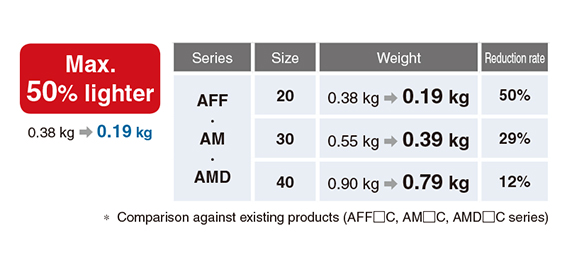

■Lightweight

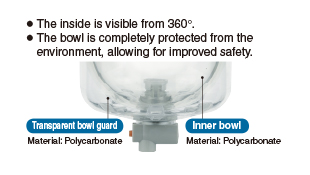

■Transparent bowl guard
(Double layer design)
(Double layer design)

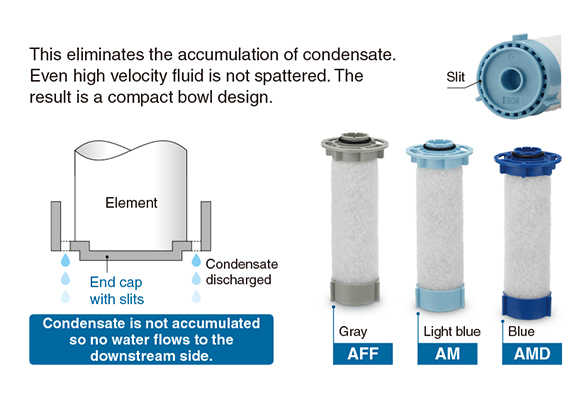

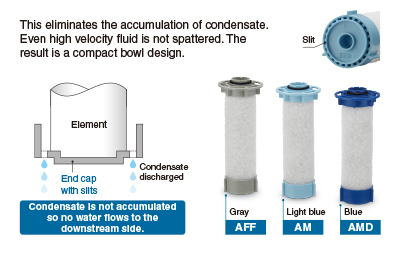

■An end cap with slits is used for the
element.
element.
■No tools are required.

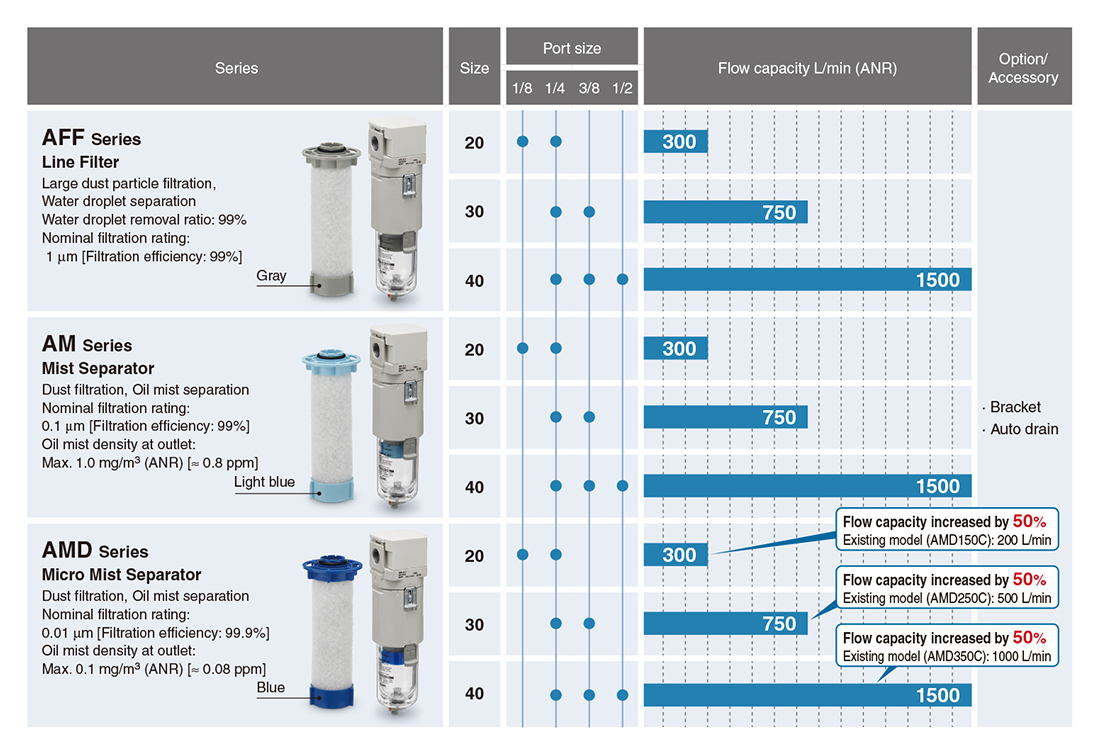

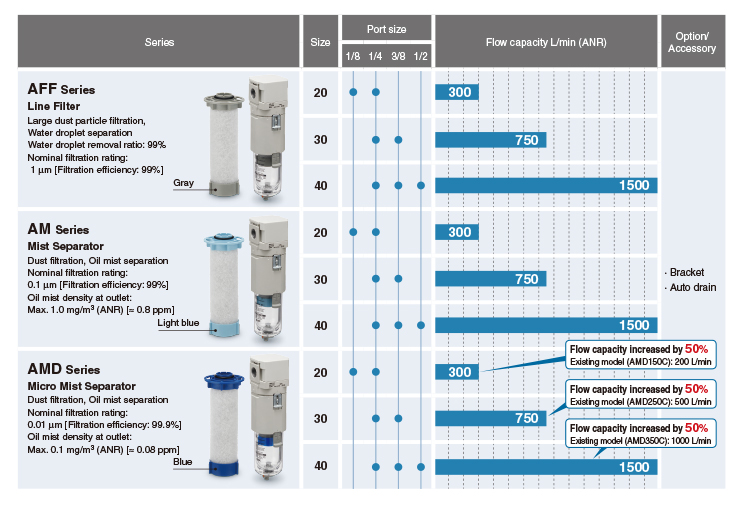

■Variations

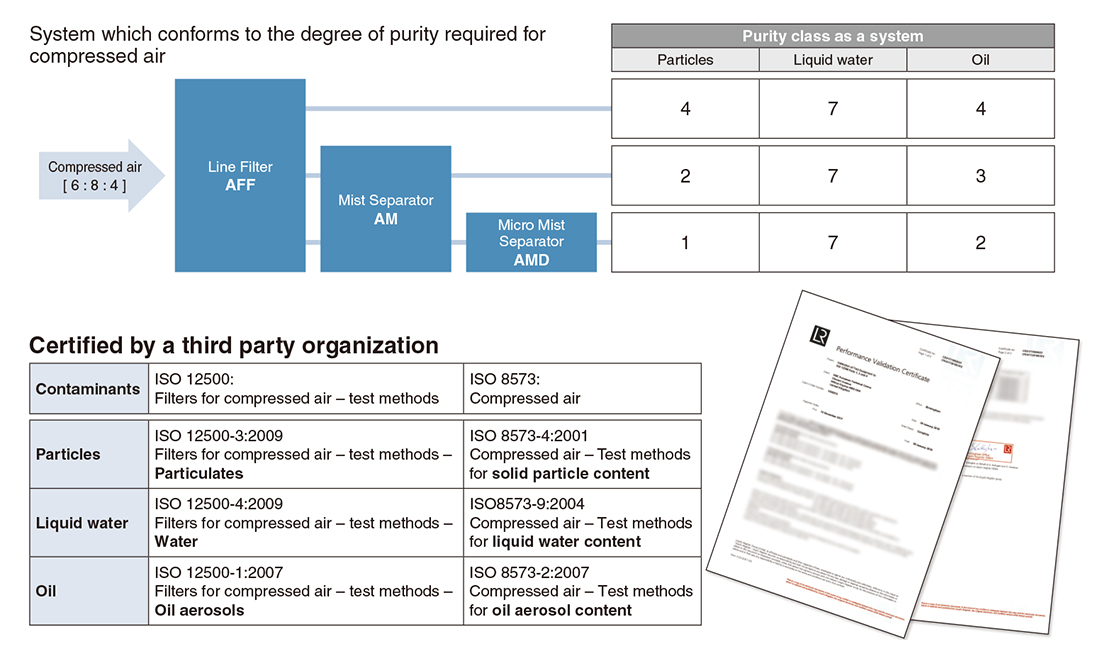

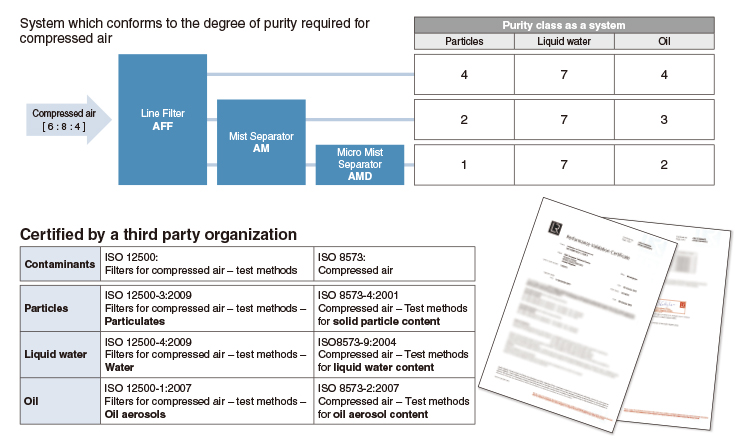

■Compliant with ISO 8573 Compressed Air Purity Class
