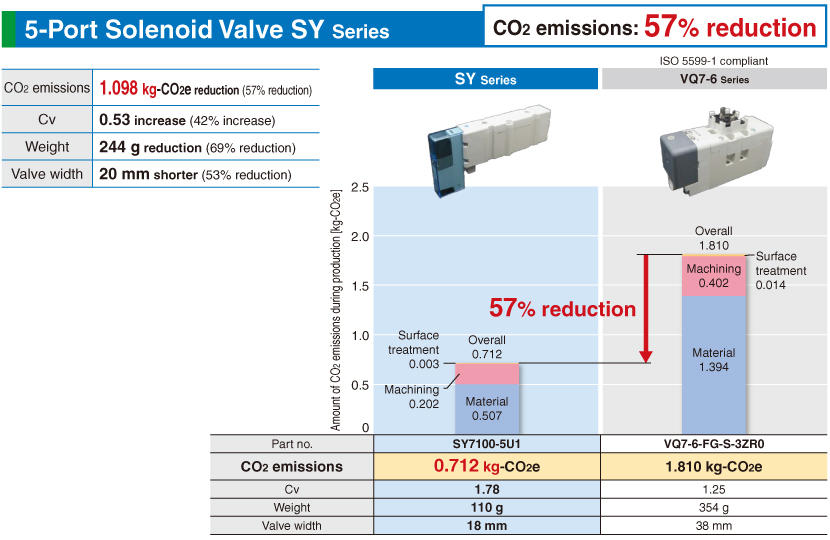

Comparison with ISO standard-compliant products (Compact products)-5-Port Solenoid Valve SY Series
5-Port Solenoid Valve SY Series

＊For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

Product Information

5-Port Solenoid Valve/Plug-in Type SY3000/5000/7000

Directional Control Valves » Pilot Operated 4/5 Port Solenoid Valves
Features
    ・Due to the flow increase, the valve size can be reduced!
    　Saves energy and space
    ・Power consumption: 0.1 W (With power saving circuit)/0.35 W (Standard)
    ・Plug-in sub-plate has been newly added!
    ・Plug-in metal base (IP40)/Plug-in connector connecting base (IP67)
    ・Manifold type no.: SS5Y3, SS5Y5, SS5Y7
    ・Can be connected to F.R.L. units (AC-D series) (-X990)
    ・Supports Interface regulators

    ＊The EX250/500 series is to be discontinued. When designing new
    　equipment and facilities, consider using another series (EX260/EX600)
    　instead.
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions
Selection/Technical Data　Quick Selection Table　Green Procurement (RoHS)
SeriesFlow rate characteristics
4/2→5/3（A/B→EA/EB）
C［dm3/（s・bar）］		Flow rate characteristics
4/2→5/3（A/B→EA/EB）
b		Applicable
cylinder size		Power
consumption
(W)
SY30001.60.19φ500.35(Standard)
0.1(With power saving circuit)
SY50003.60.17φ630.35(Standard)
0.1(With power saving circuit)
SY70005.90.20φ800.35(Standard)
0.1(With power saving circuit)
