Pneumatic Circuit Diagram Creation Program Install
Pneumatic Circuit Diagram Creation Program
∗ The software (Download ver.) is available free of charge.
Please check the software precautions before use.
How to Install Selection Software
The following describes the installation procedures by taking the pneumatic circuit diagram creation program as an example.
- 1. Save the compressed file you have downloaded into a folder.
- 2. Extract the compressed file.
- Extract the compressed file in the ZIP format.
When you extract “SMCDraw.zip”, the “SMCDraw ******” folder is then created.
- 3. Start the installation
- Open the “SMCDraw ******” folder. Double-click “SMCDraw Setup.exe” in the folder to start the installation.
- 4. Installation screen
- Select a language and click [Next].

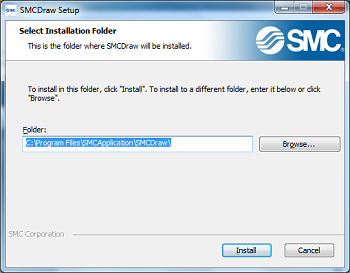

- Check the installation destination and click [Install].

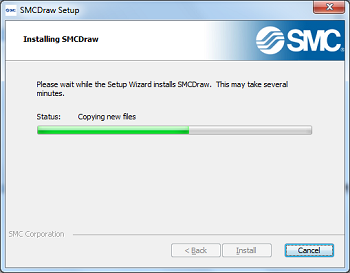

- The installation will start running.

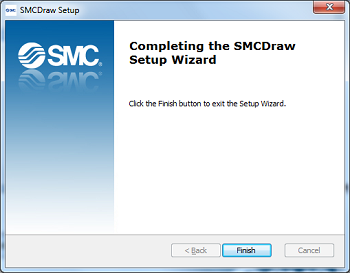

- Check that the installation has been completed, and then click [Finish].
- 5. Complete the installation

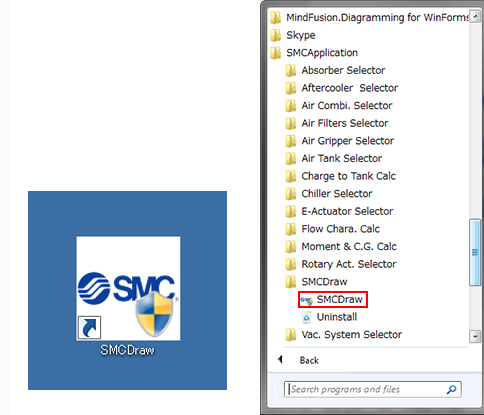

- When the installation has been completed, the icon to run this software is created on the desktop. Additionally, as [Start] → [Programs] → [SMC Application] → [SMCDraw] is registered, you can also run this software from these selections. The installation is then completed.
