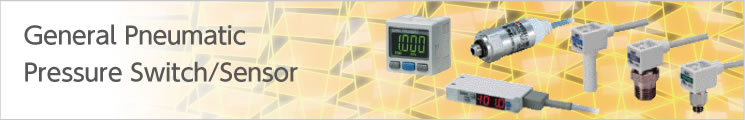

Switch ⁄ Sensor » General Pneumatic - Self-contained Type
3-Screen Display High-Precision Digital Pressure Switch
ZSE20□(F)/ISE20□
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)IO-Link Devices » Pressure Switches
Industrial Device Communication Equipment/Wireless System » Industrial Device Communication Equipment: IO-Link Compatible Products
-
・Integrated R1/8 fitting with bottom wiring entry [New]
・An M12 connector type has been added. [New]
・A low pressure range type has been added. [New]
・Visualization of settings
・Simple 3-step setting
・Easy screen switching
It is possible to change the settings while checking the measured value.
・Delay time:1.5 ms or less
・Current consumption: 25 mA or less
・IO-Link compatible
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Output type | Type | Rated pressure range | Enclosure | Applicable fluid |
|---|---|---|---|---|---|
| ZSE20（F） ISE20 | 1 output | Compound pressure Vacuum pressure Positive pressure | −100.0 to 100.0 kPa 0.0 to −101.0 kPa −0.100 to 1.000 MPa | IP40 | Air |
| ZSE20A（F） ISE20A | 2 outputs Analog output (Voltage/Current) | Compound pressure Vacuum pressure Positive pressure | −100.0 to 100.0 kPa 0.0 to −101.0 kPa −0.100 to 1.000 MPa | IP40 | Air |
| ZSE20AF-X576 to 580 (Made to Order) | 2 outputs Analog output (Voltage/Current) | Compound pressure | −500 to 500Pa −1.000 to 1.000kPa −2.00 to 2.00kPa −5.00 to 5.00kPa −10.00 to 10.00kPa | IP40 | Air |
| ZSE20B（F）-(L) ISE20B-(L) | 2 outputs Analog output (Voltage/Current) IO-Link/Switch: 1 output | Compound pressure Vacuum pressure Positive pressure | −100.0 to 100.0 kPa 0.0 to −101.0 kPa −0.100 to 1.000 MPa | IP65 | Air |
| ZSE20C（F）-(L) ISE20C（H）-(L) | 2 outputs Analog output (Voltage/Current) IO-Link/Switch: 1 output | Compound pressure Vacuum pressure Positive pressure | −100.0 to 100.0 kPa 0.0 to −101.0 kPa −0.100 to 1.000 MPa −0.100 to 2.000 MPa | IP65 | General fluids |
2-Color Display High-Precision Digital Pressure Switch ZSE30A(F)/ISE30A
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)
-
・With one-touch fitting (Straight, Elbow)
・Space-saving, capable of vertical and horizontal contact mounting
・With display calibration function
・Simultaneous copying is possible for maximum 10 units.
∗ The ZSE30A(F)/ISE30A series now features 2 new models:
the ZSE20(F)/ISE20 and the ZSE20A(F)/ISE20A.
▶Click here
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range |
|---|---|---|
| ZSE30AF | Compound pressure | －100.0 to 100.0kPa |
| ZSE30A | Vacuum pressure | 0.0 to －101.0kPa |
| ISE30A | Positive pressure | －0.100 to 1.000MPa |
Compact Digital Pressure Switch ZSE10(F)/ISE10
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)
-
・Low profile 9.8 mm
・Vertical mounting space reduced to approx. 1/2
(Compared to ZSE/ISE30A series)
・Simultaneous copying is possible for maximum 10 units.
・3-step setting
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range |
|---|---|---|
| ZSE10F | Compound pressure | －100.0 to 100 kPa |
| ZSE10 | Vacuum pressure | 0.0 to －101.0 kPa |
| ISE10 | Positive pressure | －0.100 to 1.000 MPa |
2-Color Display Digital Pressure Switch ISE70/75（H）
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)
-
・Metal body type (Aluminum die-casted)
・IP67
・With M12 connector
∗ The ISE70 series was discontinued in April 2018.
Please select the ISE70-□-L2 series.
∗ The ISE75 series was discontinued in July 2018.
Please select the ISE77G series.
∗ The ISE75H series was discontinued in December 2022.
Please select the ISE78G series.
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range |
|---|---|---|
| ISE70 | Positive pressure (For air) | 0 to 1MPa |
| ISE75 | Positive pressure (For general purpose fluids) | 0 to 10MPa |
| ISE75H | Positive pressure (For general purpose fluids) | 0 to 15MPa |
Compact Pressure Switch ZSE1/ISE1
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Set pressure range |
|---|---|---|
| ZSE1 | Vacuum pressure | 0 to －101 kPa |
| ISE1L | Positive pressure | 0 to 100 kPa |
| ISE1 | Positive pressure | 0 to 1 MPa |
Compact Pressure Switch ZSE2/ISE2
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)
-
・Can be integrated with a ZX or ZR ejector system
・Comes equipped with a suction filter as standard
∗ The ZSE2-0X series was discontinued in May 2024.
Please select the ZSE10 series.
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Set pressure range |
|---|---|---|
| ZSE2 | Vacuum pressure | 0 to －101 kPa |
| ISE2L | Positive pressure | 0 to 100 kPa |
| ISE2 | Positive pressure | 0 to 1 MPa |
Air Checker/Electronic Pressure Switch PS1000/1100/1200
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)
-
・Plug-in port for One-touch fittings.
・With LED light.
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Set pressure range |
|---|---|---|
| PS1000 | Positive pressure | －0.1 to 0.45 MPa |
| PS1100 | For vacuum/residual pressure | －0.1 to 0.4 MPa |
| PS1200 | For vacuum | －100 to 0 kPa |
Digital Pressure Switch (Built-in Regulator Type) ISE35
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)
-
・Modular type mountable
・ARM10/11 series mountable
・Selectable pressure unit
・With anti-chattering function
・Power-saving mode
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range |
|---|---|---|
| ISE35 | Positive pressure | －0.1 to 1 MPa |
Pressure Switch/Reed Switch Type IS10
Switches/Sensors/Controller » Mechanical Pressure Switches
-
・16% lighter, 11% smaller (Compared with the IS1000)
・Service life: 5 million cycles
・Can be connected to modular type F.R.L. units
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Set pressure range |
|---|---|---|
| IS10 | Positive pressure | 0.1 to 0.4 MPa 0.1 to 0.6 MPa |
Pressure Switch/Micro Switch Type IS3000
Switches/Sensors/Controller » Mechanical Pressure Switches
-
・Can be used for micro load, around 10 mA e.g.
・With neon light.
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Set pressure range |
|---|---|---|
| IS3000 | Positive pressure | 0.1 to 0.7 MPa |
Vacuum Switch/Reed Switch Type ZSM1
Switches/Sensors/Controller » Mechanical Pressure Switches
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Set pressure range |
|---|---|---|
| ZSM1 | Vacuum pressure | －27 to －80 kPa |
3-Screen Display High-Precision Digital Pressure Switch
ISE7□/7□G/79S
Switches/Sensors/Controller » Electronic Pressure Switches/Sensors (Self-contained Type)IO-Link Devices » Pressure Switches
Industrial Device Communication Equipment/Wireless System » Industrial Device Communication Equipment: IO-Link Compatible Products
-
・It is possible to change the settings while checking the measured value.
・IO-Link
・Angled display
Good visibility from various mounting positions
・Rotating display
Display can rotate 336 degrees after installation
・Applicable fluid：Air, Non-corrosive gas, Non-flammable gas (ISE70/71)
：Liquid or gas that will not corrode materials of parts
in contact with fluid (ISE7□G/79S)
Safety Instructions Pressure Switches/Flow Switches/Precautions
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS)
| Series | Type | Rated pressure range |
|---|---|---|
| ISE70 | Positive pressure (For air) | 0 to 1MPa |
| ISE71 | Positive pressure (For air) | 0 to 1.6MPa |
| ISE70G | Positive pressure (For general fluids) | 0 to 1MPa |
| ISE75G | Positive pressure (For general fluids) | 0 to 2MPa |
| ISE76G | Positive pressure (For general fluids) | 0 to 5MPa |
| ISE77G | Positive pressure (For general fluids) | 0 to 10MPa |
| ISE78G | Positive pressure (For general fluids) | 0 to 16MPa |
| ISE79S | Positive pressure (For general fluids) | 0 to 50MPa |
