Industrial Device Communication Equipment: IO-Link Compatible Products
High-Precision Digital Pressure Switch ISE7□/7□G
-
・IO-Link version V1.1
・Process data length 2-byte input
・Transmission speed COM2 (38.4 kbps)
・Minimum cycle time 2.3 ms
・IO-Link port type Class A
▶IO-Link Master
Pressure Switch Series Variations/Application Example Glossary of Terms/Technical Information
Green Procurement (RoHS) IO-Link Master

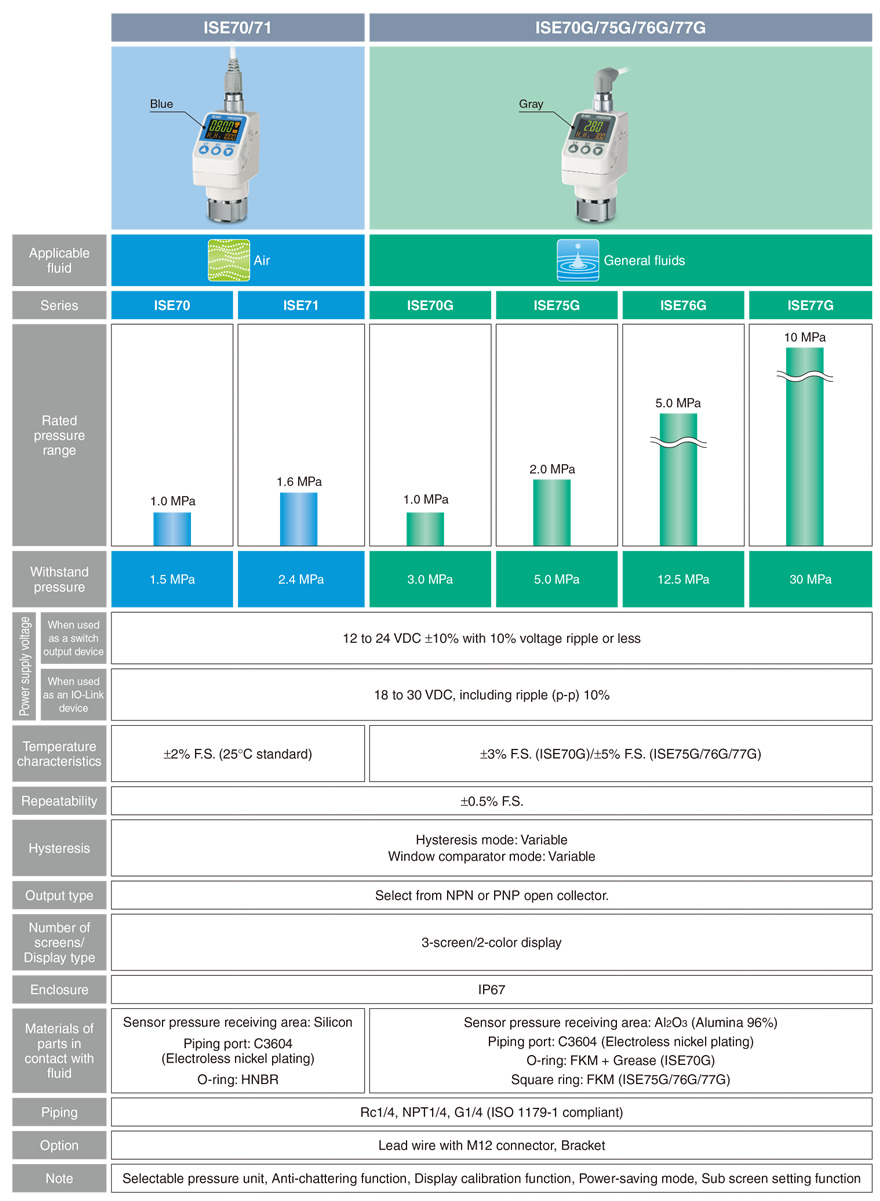

| Series | Applicable fluid | Type | Rated pressure range |
|---|---|---|---|
| ISE70 | Air | Positive pressure | 0 to 1 MPa |
| ISE71 | Air | Positive pressure | 0 to 1.6 MPa |
| ISE70G | Air General fluids | Positive pressure | 0 to 1 MPa |
| ISE75G | Air General fluids | Positive pressure | 0 to 2 MPa |
| ISE76G | Air General fluids | Positive pressure | 0 to 5 MPa |
| ISE77G | Air General fluids | Positive pressure | 0 to 10 MPa |
Features

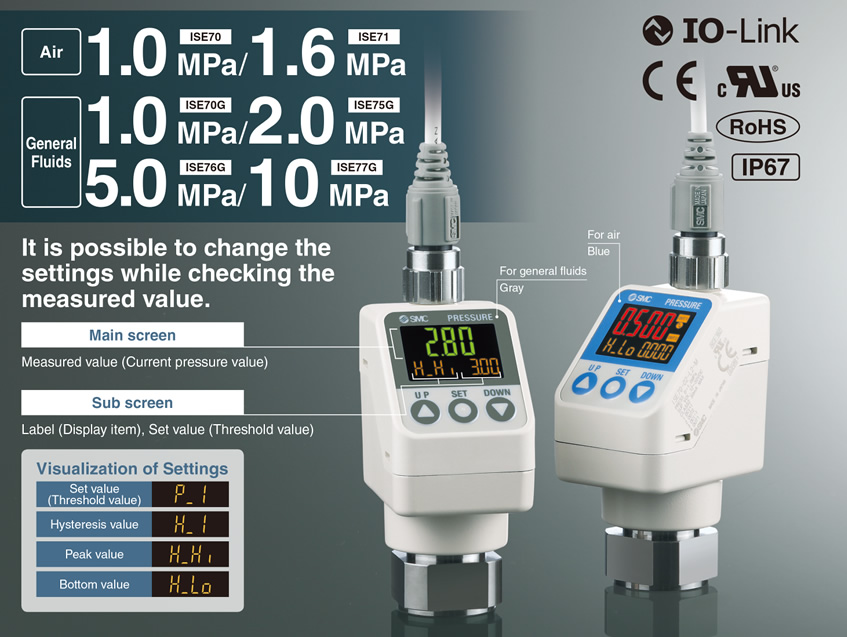

The sub screen (label) shows the item to be set.

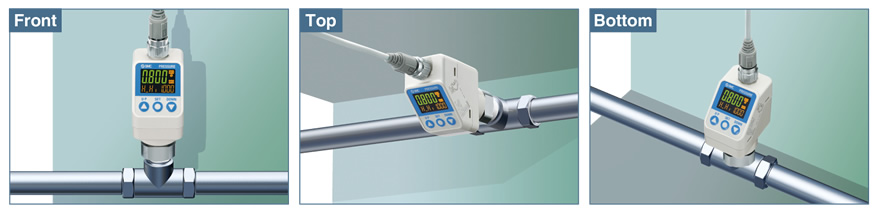

Good visibility from various mounting positions

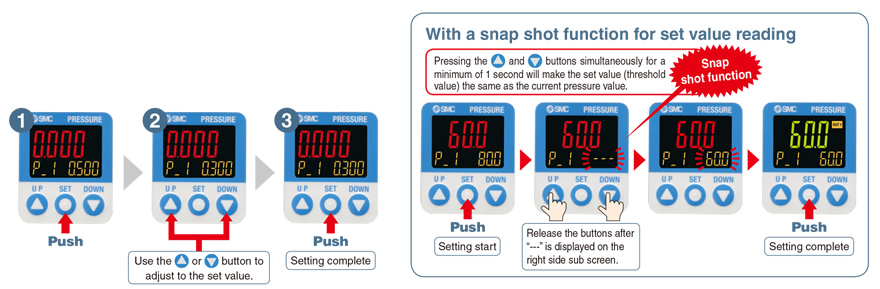

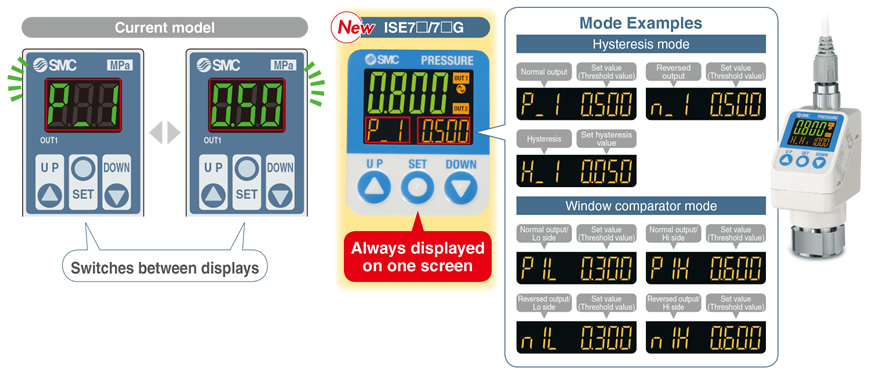

When the SET button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the SET button is pressed and the hysteresis value (H_1) is being displayed, the hysteresis value can be set.

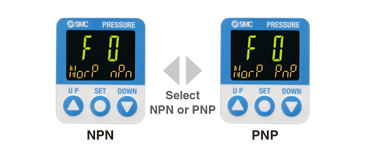

Both NPN and PNP are available.The number of stock items can be reduced.

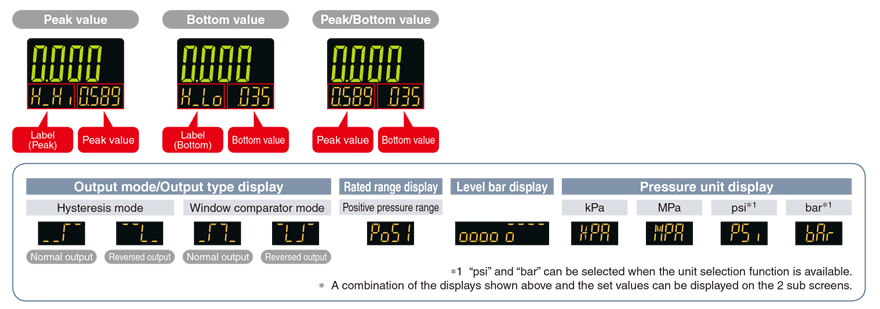

The peak value, bottom value, or both values can be displayed on one screen!
* Peak and bottom values are maintained even if the power supply is cut.

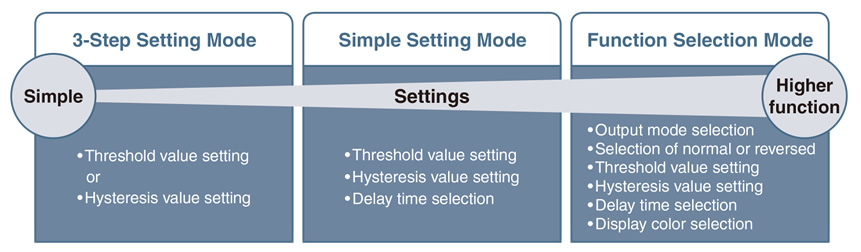

Select the setting mode that best meets your needs.

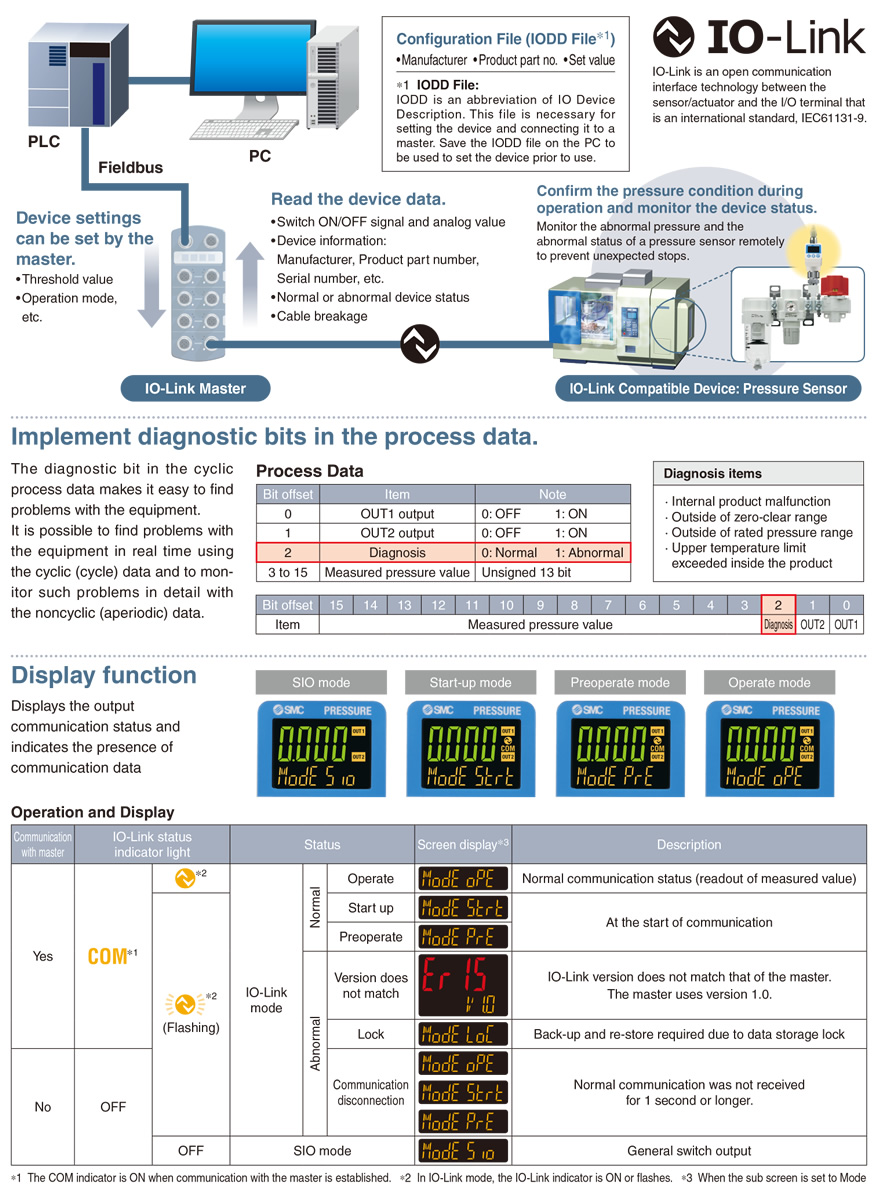

Visualization of operation/equipment status/Remote monitoring and control by communication
