Simple Specials System
|Compact Guide Cylinder MGQL
| Series | Description | Model | Action | Symbol for change of rod end shape |
Note |
|---|---|---|---|---|---|
| MGQ | Standard type | MGQL | Ball bushing bearing | XA1,6 |
Click on the shape to see a larger image.
| Shape | Symbol | Specifications | Note | Download |
|---|---|---|---|---|
|
XA1 | Change of guide rod end shape | DL | |
|

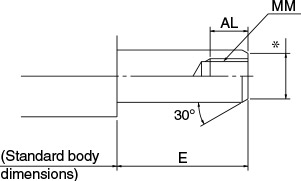

XA6 | Change of guide rod end shape | DL | |
|
XA17 | Change of guide rod end shape | DL | |
|
XA21 | Change of guide rod end shape | DL |
