Simple Specials System
|Compact Rotary Actuator CRQ2
Click on the shape to see a larger image.
Shape | Symbol | Specifications | Note | Download |
---|---|---|---|---|
![]() |

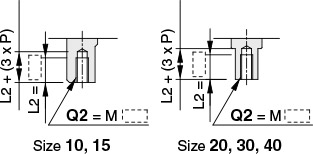

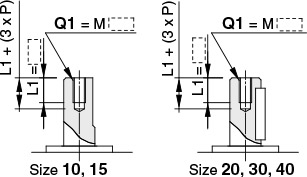

XA1 | Shaft-end female thread | DL | |
![]() |
XA2 | Shaft-end female thread | DL | |
![]() |
XA3 | Shaft-end male thread | DL | |
![]() |
XA4 | Shaft-end male thread | DL | |
![]() |
XA5 | Stepped round shaft | DL | |
![]() |
XA6 | Stepped round shaft | DL | |
![]() |

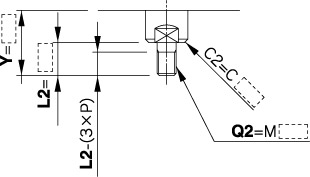

XA7 | Stepped round shaft with male thread | DL | |
![]() |
XA8 | Stepped round shaft with male thread | DL | |
![]() |
XA9 | Modified length of standard chamfer | DL | |
![]() |
XA10 | Modified length of standard chamfer | DL | |
![]() |
XA11 | Double-sided chamfer | DL | |
![]() |
XA12 | Double-sided chamfer | DL | |
![]() |

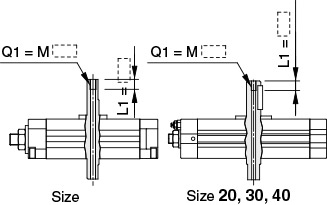

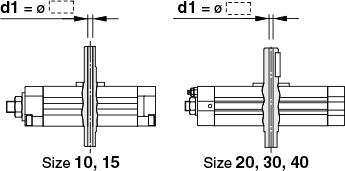

XA13 | Shaft through-hole | DL | |
![]() |
XA14 | Shaft through-hole +Shaft-end female thread |
DL | |
![]() |

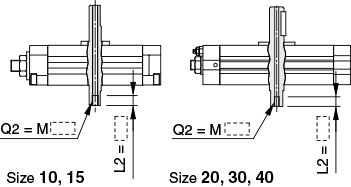

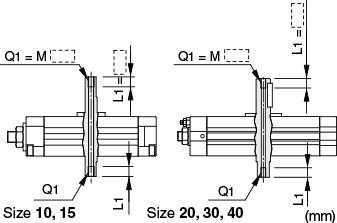

XA15 | Shaft through-hole +Shaft-end female thread |
DL | |
![]() |
XA16 | Shaft through-hole +Double shaft-end female threads |
DL | |
![]() |

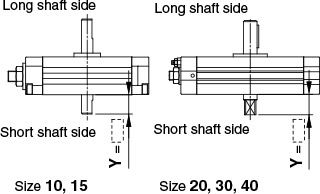

XA17 | Shortened shaft | DL | |
![]() |
XA18 | Shortened shaft | DL | |
![]() |

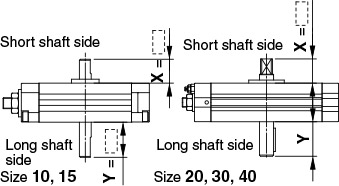

XA19 | Shortened shaft | DL | |
![]() |
XA20 | Reversed shaft | DL | |
![]() |

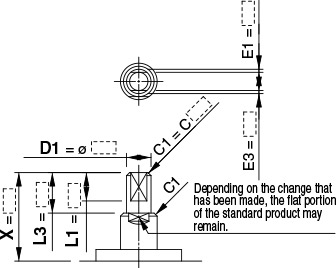

XA21 | Stepped round shaft +Double-sided chamfer |
DL | |
![]() |

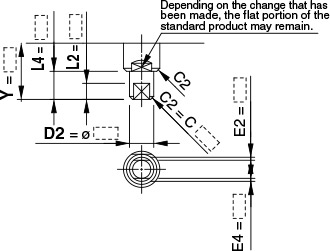

XA22 | Stepped round shaft +Double-sided chamfer |
DL | |
![]() |
XA23 | Right-angle chamfer | DL | |
![]() |
XA24 | Double key | DL | |
![]() |
XA31 | Shaft-end female thread | DL | |
![]() |
XA32 | Shaft-end female thread | DL | |
![]() |

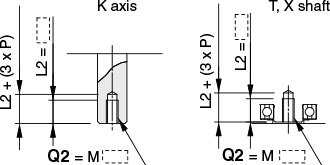

XA33 | Shaft-end female thread | DL | |
![]() |
XA34 | Shaft-end female thread | DL | |
![]() |
XA35 | Shaft-end female thread | DL | |
![]() |
XA36 | Shaft-end female thread | DL | |
![]() |
XA37 | Stepped round shaft | DL | |
![]() |
XA38 | Stepped round shaft | DL | |
![]() |

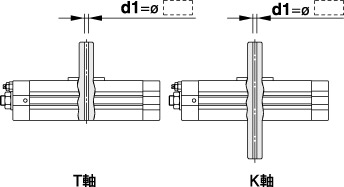

XA39 | Shaft through-hole | DL | |
![]() |
XA40 | Shaft through-hole | DL | |
![]() |

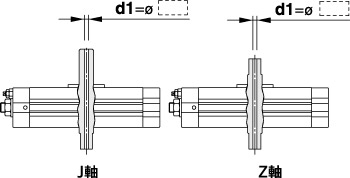

XA41 | Shaft through-hole | DL | |
![]() |
XA42 | Shaft through-hole + Shaft-end female thread |
DL | |
![]() |

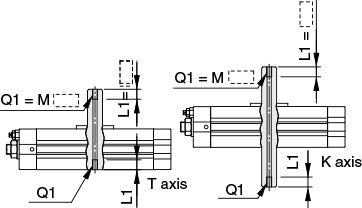

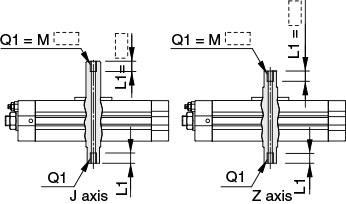

XA43 | Shaft through-hole + Shaft-end female thread |
DL | |
![]() |
XA44 | Shaft through-hole + Shaft-end female thread |
DL | |
![]() |
XA45 | Middle-cut chamfer | DL | |
![]() |
XA46 | Middle-cut chamfer | DL | |
![]() |
XA48 | Change of long shaft length | DL | |
![]() |
XA49 | Change of short shaft length | DL | |
![]() |

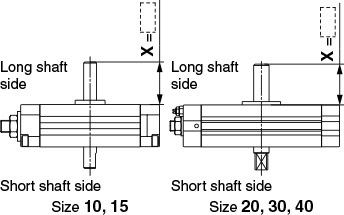

XA50 | Change of double shaft length | DL | |
![]() |
XA51 | Change of long shaft length | DL | |
![]() |

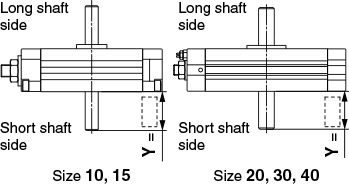

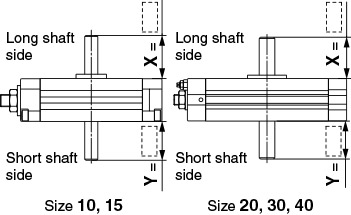

XA52 | Change of short shaft length | DL | |
![]() |
XA53 | Change of double shaft length | DL | |
![]() |

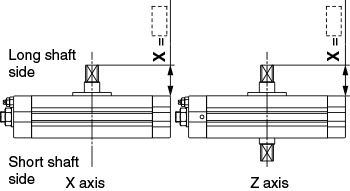

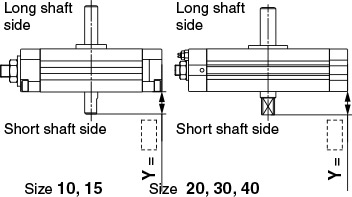

XA54 | Change of long shaft length | DL | |
![]() |
XA55 | Change of short shaft length | DL | |
![]() |

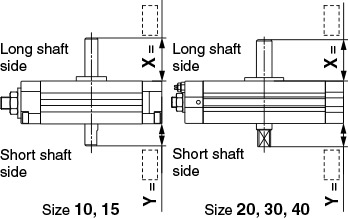

XA56 | Change of double shaft length | DL | |
![]() |
XA57 | Change of double shaft length | DL | |
![]() |

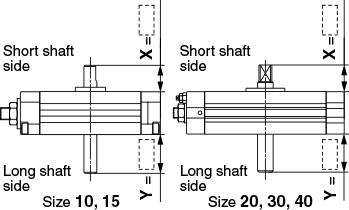

XA58 | Reversed shaft, Change of double shaft length |
DL | |
![]() |
XA59 | Reversed shaft, Change of double shaft length |
DL |
